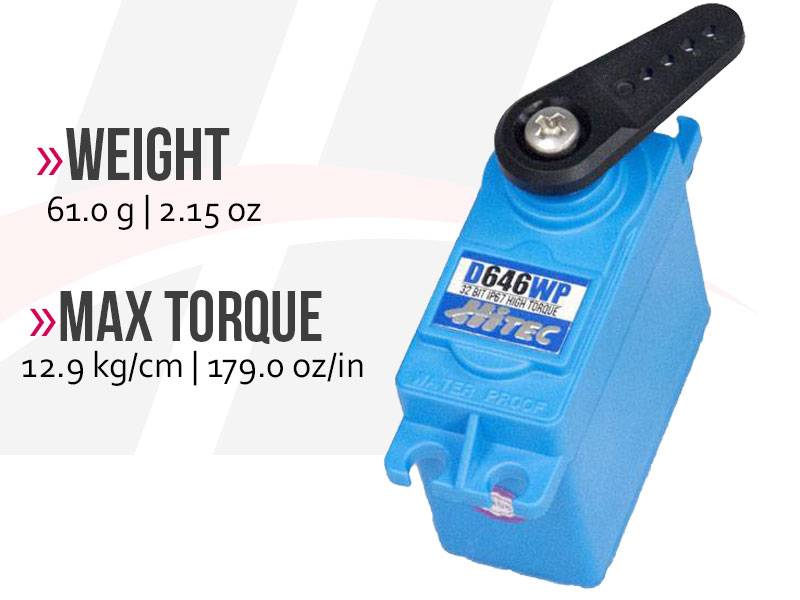

Hitec D646WP 32-Bit Digital High Torque Waterproof Servo
Original price
$59.99
-
Original price
$59.99
Original price
$59.99
$59.99
-
$59.99
Current price
$59.99
Availability:
in stock, ready to be shipped
Our waterproof servos have what it takes to keep your radio control vehicle, airplane or robot watertight! With high torque, dual ball bearings and metal gears, our digital waterproof servos have the industry’s first IP67* rating ranking them among the most durable and reliable servos for wet conditions. Whether you are manning your power boat, bashing in the mud, directing your underwater robot, or water landing your 25% plane, the D646WP will dependably keep your mind at ease.
This is the upgraded version of the HS-5646WP.
Highlights of the D-Series
Features
- Industry's First IP67-Rated Waterproof Case
- Strong Three-Pole Ferrite Motor
- Metal Gear Train with MP First Gear
- Dual Ball Bearing-Supported Output Shaft
- 7.4v 2-Cell LiPo Capability
- Standard Programmable Digital Circuitry
Programmable Functions
- End Point Adjustments
- Direction
- Fail Safe
- Dead Band
- Speed (Slower)
- Data Save / Load
- Program Reset
Accessories
- Steel Gear Set | Must be serviced by Hitec Service Dept |
- Metal / Plastic 1st Gear Set | Must be serviced by Hitec Service Dept |
- Plastic / Aluminum Case Set | Must be serviced by Hitec Service Dept |
- Applicable Horns
D646WP Servo Specifications:
| Performance Specifications | |
| Operating Voltage Range (Volts DC) | 6.0V ~ 7.4V |
| Speed (Second @ 60°) | 0.24 ~ 0.16 |
| Maximum Torque Range oz. / in. | 105 ~ 162 |
| Maximum Torque Range kg. / cm. | 7.5 ~ 11.6 |
| Current Draw at Idle | 30 mA |
| No Load Operating Current Draw | 330 mA |
| Stall Current Draw | 2,200 mA |
| Dead Band Width | 4 µs |
| Physical Specifications | |

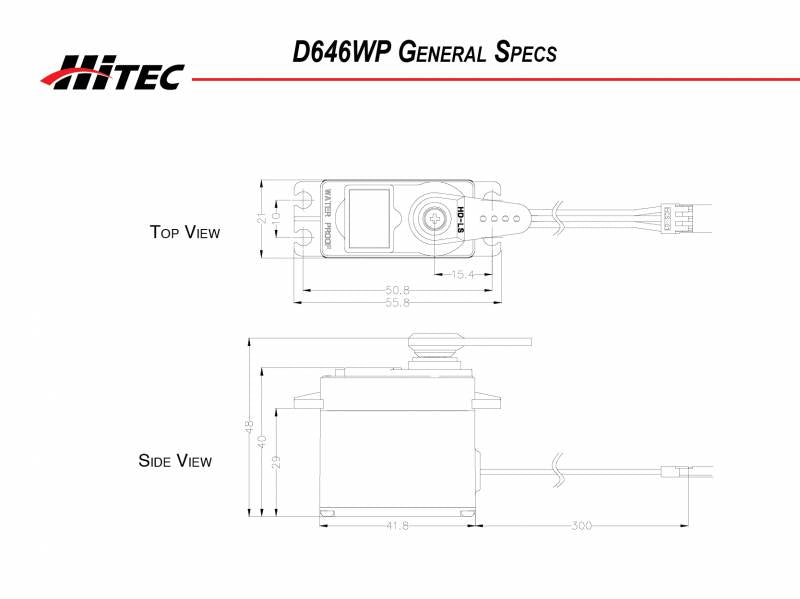

| Dimensions (Inches) | 1.65 x 0.83 x 1.57 |
| Dimensions (Metric) | 41.8 x 21.0 x 40.0 |
| Weight (Ounces) | 2.15 |
| Weight (Gram) | 61.0 |
| Circuit Type | G1 Programable Digital |
| Motor Type | 3 Pole Metal Brush Ferrite |
| Gear Material | Metal |
| Bearing Type | Dual Ball Bearing |
| Output Shaft (type / Ømm) | Standard 24 |
| Case Material | Plastic |
| Dust / Water Resistance | IP 67 |
| Connector Gauge (AWG) / Strand Count | 22 / 60 |
| Radio Control Applications | |
| Parkflyer | N / A |
| Sport Plane | 12 - 15 lbs. |
| Sailplane | 2 meter and up |
| 3D Performance | 12 - 15 lbs. |
| Scale | 12 - 15 lbs. |
| Electric Helicopter | 600mm |
| Gas Helicopter | 50-59 Class |
| On Road | 1/10th |
| Monster Truck | 1/10th |
| Buggies | 1/10th |
| Truggies | 1/10th |
| Short Course / Truck | 1/10th |
| Crawlers | 1/10th |
| Sail Boat | = >1 meter & Scale |
| Power Boat | 1/10th |
