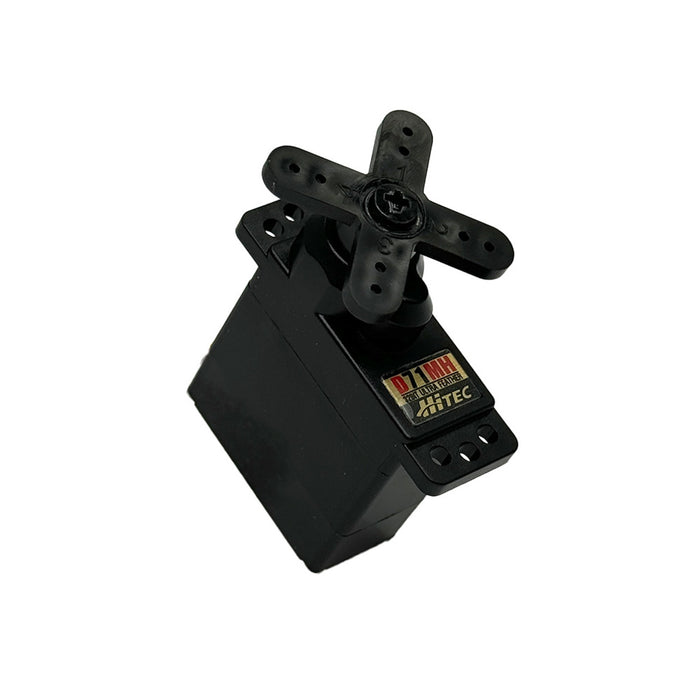

Hitec D71MH 12.5g Long-Life Metal Gear Digital Micro Servo
Original price
$48.99
-
Original price
$48.99
Original price
$48.99
$48.99
-
$48.99
Current price
$48.99
Availability:
in stock, ready to be shipped
The micro sized, metal geared D71MH is part of our D-Series Servo Line with a longer life Carbon Brushed Motor. The D71MH is a more powerful option to the HS-5065MG. The fully programmable servo operates on a wide 3.5 ~ 8.4 voltage range, allowing use with any common battery chemistry without the need for adapters or regulators.
Features
- Programmable PWM Digital Amplifier
- 32-Bit MCU with 12-Bit ADC Circuitry
- Wide Operating Voltage (3.5. ~ 8.4 Volts DC)
- Ball Bearing Supported Output Shaft
- 25 Tooth Output Spline
- Cored Carbon Brush Motor
- Nylon Reinforced Plastic Case
- Dust Resistant and Splash Proof Case
DPC-20 Programmable Functions
- End Point Adjustments
- Direction
- Fail Safe
- Dead Band
- Speed (Slower)
- Soft Start Rate
- Overload Protection
- Data Save / Load
- Program Reset
| General Specifications | |||
| Operating Voltage Range | 3.5 ~ 6.8V | ||
| Voltage | - | 6.0V | 7.4V |
| No Load Speed | - | 0.16sec/60˚ | 0.13sec/60˚ |
| Stall Torque | - | 3.7kgf·cm (51.38 oz·in) | 4.1kgf·cm (56.94 oz·in) |
| Peak Efficiency Torque | - | 0.7kgf·cm (9.72 oz·in) | 0.8kgf·cm (11.11 oz·in) |
| Standing Current | - | 30mA | 30mA |
| No Load Running Current | - | 200mA | 220mA |
| Stall Current | - | 1,300mA | 1,500mA |
| Deadband | - | 2μs | 2μs |
| Continuous Rotation | n / a | ||
| Connector Wire Length | 160mm (6.299 in.) | ||
| Connector Wire Gauge | 28AWG | ||

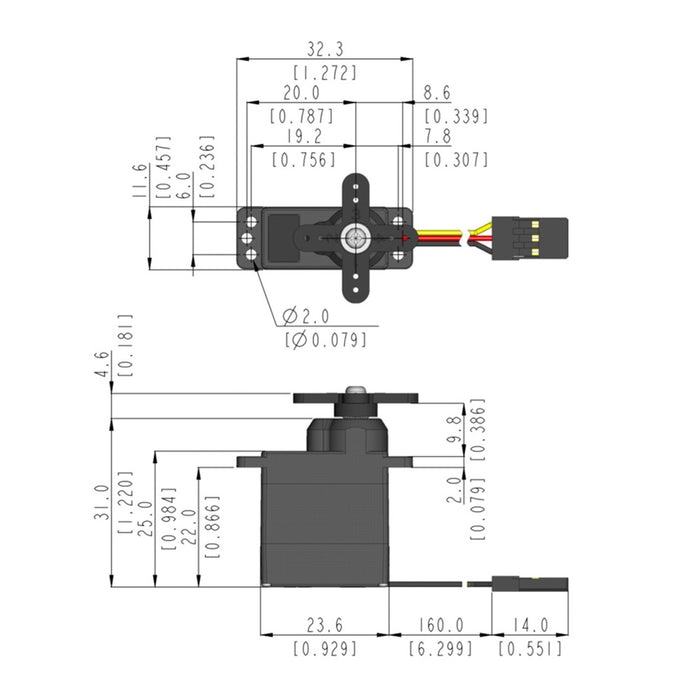

| Dimensions | 23.6 x 11.6 x 31.0mm (0.929 x 0.457 x 1.220 in.) | ||
| Weight | 12.5g (0.441 oz) | ||
| Motor Type | Cored Metal Brush | ||
| Bearing Type | 1 Ball Bearing | ||
| Case Material | Engineering Plastic | ||
| Gear Material | 1 Resin & 4 Metal Gears | ||
| Horn Gear Spline | M25T (Ø5.0) | ||
| IP-Rating | IP4X | ||
| Servo Amplifier Type | 32bit Programmable Digital | ||
| Radio Control Applications | |||
| Parkflyer | < 42 oz. | ||
| Sport Plane | 36 - 41 oz | ||
| Sailplane | < 2 Meters / DLG | ||
| 3D Performance | Foamies | ||
| Giant / Large Scale | n / a | ||
| On Road | 1/10th Drag | ||
| Monster Truck | n / a | ||
| Buggy | 1/16th | ||
| Truggy / Truck | 1/16th | ||
| Short Coarse | 1/8th | ||
| Crawler | n / a | ||
| Electric Heli | 400 - 450mm | ||
| Gas Heli | n / a | ||
| Sail Boat | n / a | ||
| Power Boat | 1/16th | ||
