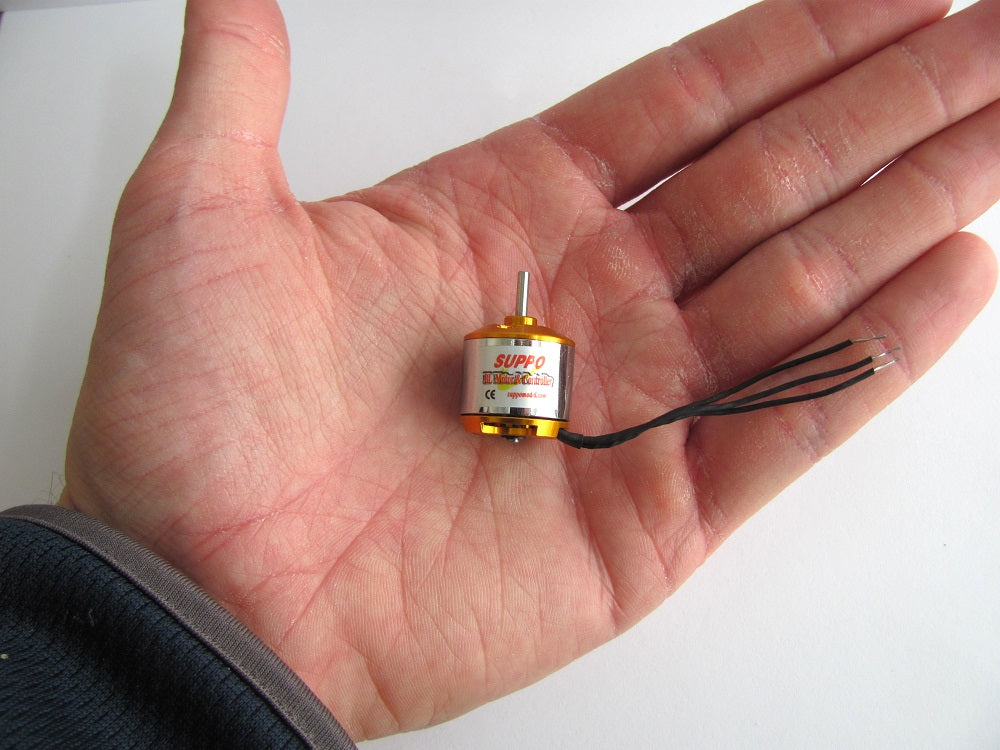

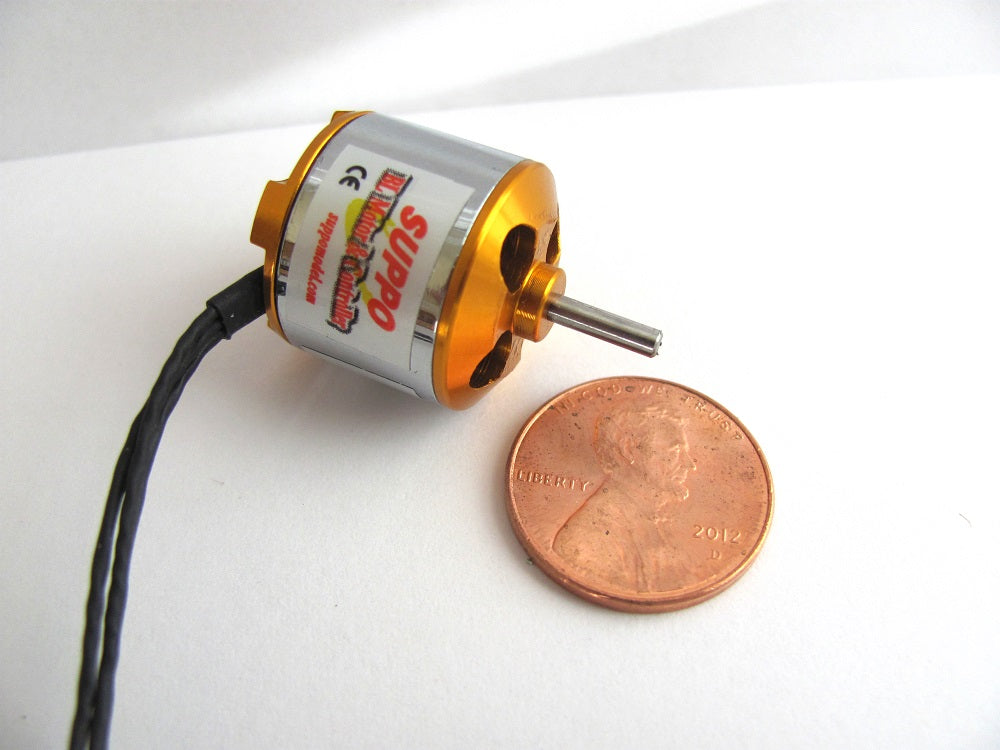

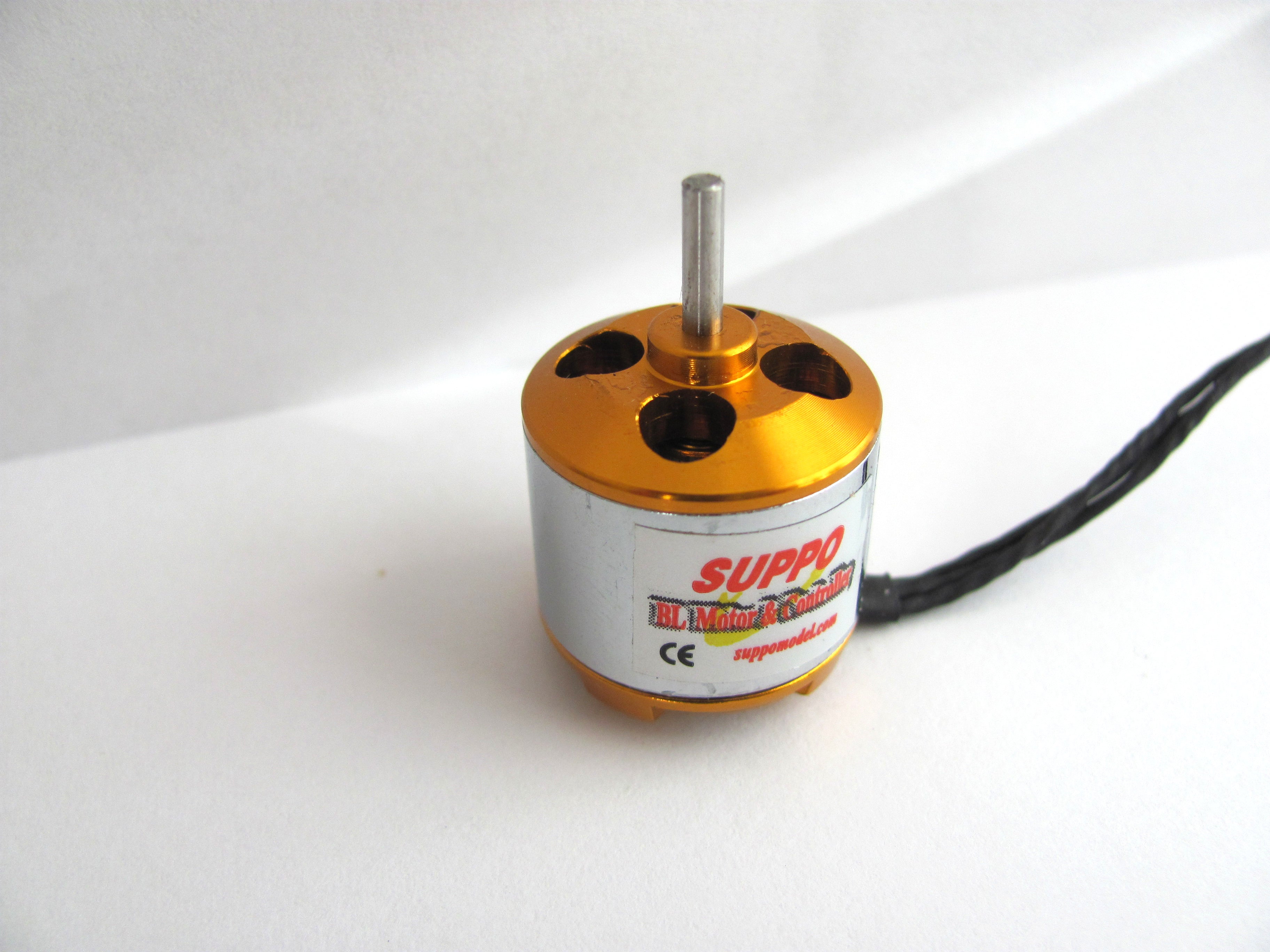

Suppo A1510 2200kv Brushless Motor (Park 250 equiv.)
Suppo is a leading manufacturer of professional motors, ESCs, servos, and other RC electronics on the market today. Suppo motors provide excellent performance, quality, and dependability at an affordable price. Manufactured with high quality bearings and components, Suppo brushless motors are some of the smoothest and most powerful in their class.

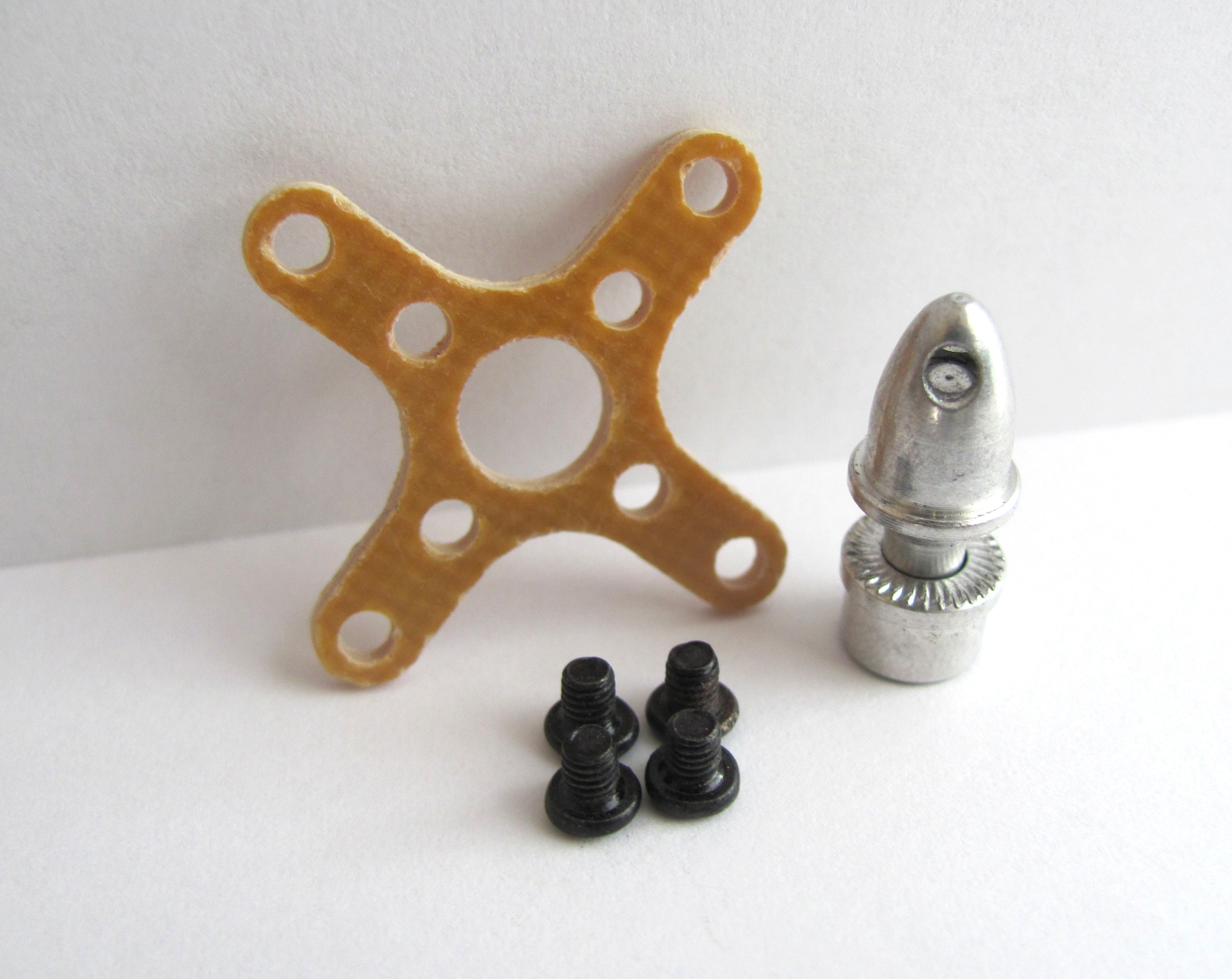

Each motor is PRE-SOLDERED with male 2.0mm gold bullet connectors. (Note: if purchased with a Suppo 10A ESC, the speed controller will come pre-soldered with matching 2.0mm female bullet connectors). Also included with each motor is an accessory pack with collet-style prop adapter, lightweight composite x-mount, mounting bolts, female 2.0mm gold bullet connectors, and heatshrink.
Suppo A1510 2200kv Specifications:
● Number of Cells: 2-3s lipo
● Max Efficiency Current: 2-6A (>70%)
● No Load Current (10v): .25A
● Max Current: 7.5A/60s
● Max Efficiency: 80%
● Shaft Size: 2.0mm
● Weight: 17g
● Max watts: 83W
● Motor Dimensions: 18x17.4 (mm)
● Motor bolt pattern (back of motor): 13mm x 13mm (hole to hole)
● X-mount hole pattern: 26mm x 26mm (hole to hole)
● Minimum Recommended ESC: 10A*
● Recommended Model Weight: under 200g
Click here for Dr. Kiwi's test data & prop charts for this motor
**Please refer to the manufacturer specifications listed above to determine the correct ESC size for your application. We suggest you choose an ESC rated for at least 20% above the max current rating of the motor (example: if your motor’s max current rating is 35A, choose an ESC of at least 42A). If you are new to the hobby or have questions about choosing the correct ESC, please call or email us before ordering.

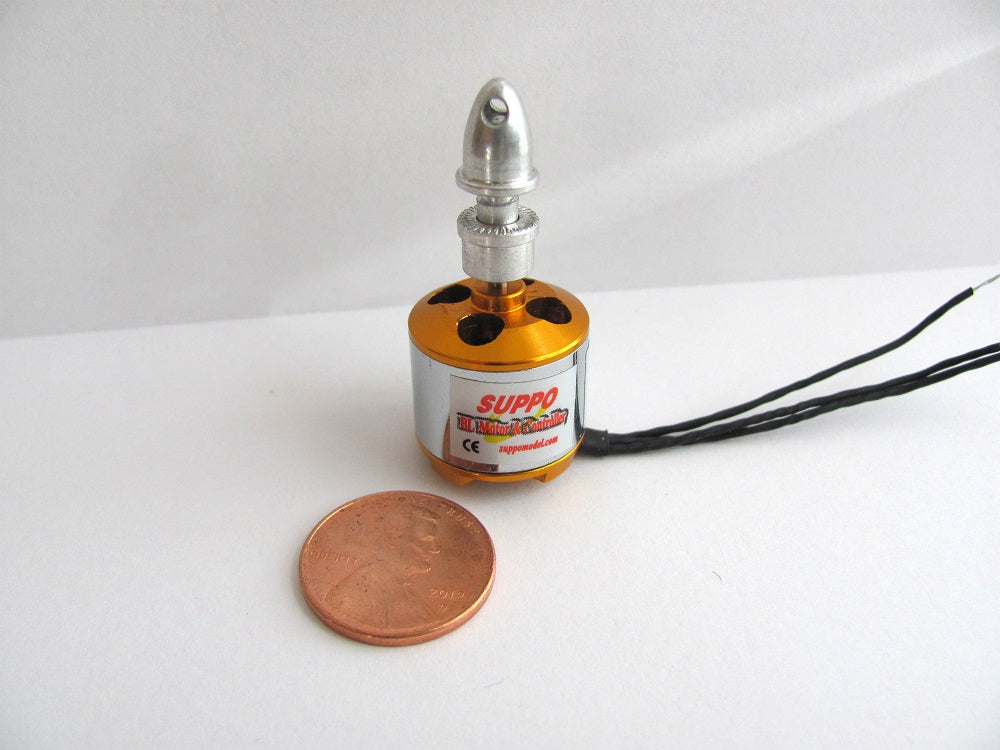

This motor is equivalent an E-flite Park 250. Recommended prop size: GWS 7035 or 6030 (7x3.5 or 6x3) on 2s; GWS 5030 (5x3) on 3s. This motor features a collet-style prop adapter and ultra-light mounting plate. Mounting holes are spaced 13mm from center on all sides for total of 26mm spacing between mount holes.
