Hitec HS-5585MH Economical High Voltage High Torque Coreless Metal Gear Digital Sport Servo

Original price $72.99 - Original price $72.99
Original price
$72.99
$72.99 - $72.99
Current price $72.99
Availability:
in stock, ready to be shipped

Increase your performance not your budget with the high voltage, high torque, digital HS-5585MH. Featuring a high performance coreless motor, heavy-duty metal gears and dual ball bearings, the HS-5565MH is rated for  7.4 volt, 2S LiPo operation.  The HS-5585MH, supplies your 1/10th monster trucks to 1/8th scale buggies and truggies and high performance airplanes up to 35 percent with outstanding strength and precision.

Features

  • Our Most Economically Priced High Torque Digital Coreless Servo
  • Quick and Precise Coreless Motor
  • Heavy Duty Metal Gears
  • 7.4v 2-Cell LiPo Capability
  • Standard Programmable Digital Circuit

Programmable Functions

  • End Point Adjustments
  • Direction
  • Fail Safe
  • Dead Band
  • Speed (Slower)
  • Data Save / Load
  • Program Reset

Accessories

  • Metal Gear Set
  • Metal / Karbonite 1st Gear Set
  • Plastic Case Set
  • Applicable Horns

HS-5585MH Servo Specifications

Performance Specifications
Operating Voltage Range (Volts DC) 6.0V ~ 7.4V
Speed (Second @ 60°) 0.17 ~ 0.14
Maximum Torque Range oz. / in. 194 ~ 236
Maximum Torque Range kg. / cm. 14 ~ 17
Current Draw at Idle 4 mA
No Load Operating Current Draw 300 mA
Stall Current Draw 2,700 mA
Dead Band Width 2 µs

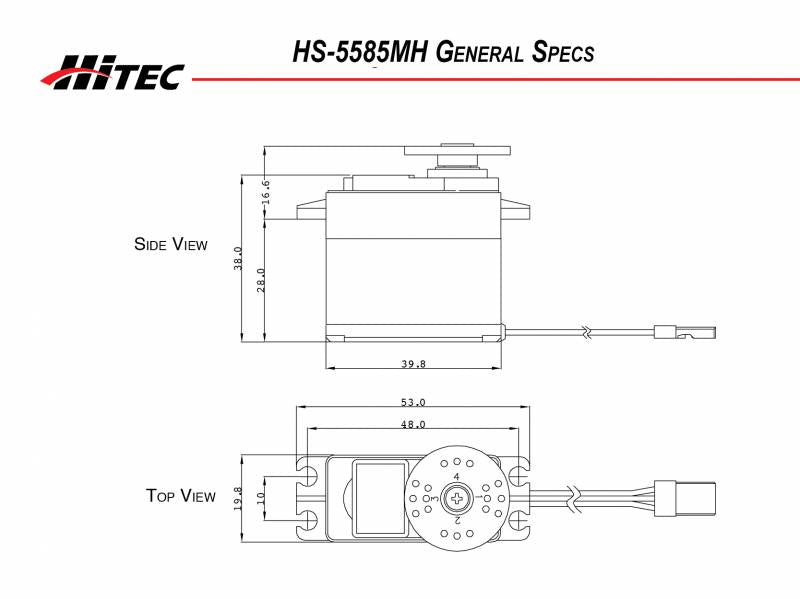

Physical Specifications

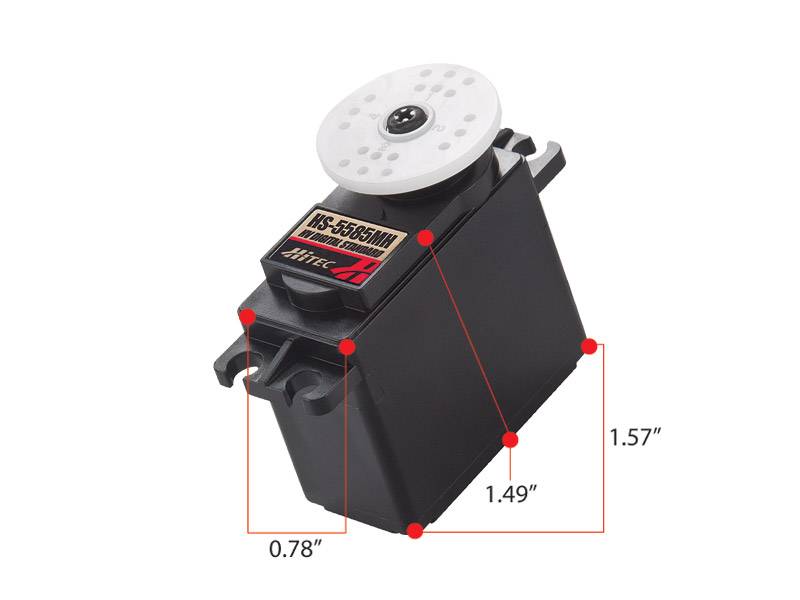

Dimensions (Inches) 1.57 x 0.78 x 1.49
Dimensions (Metric) 39.8 x 19.8 x 37.8
Weight (Ounces) 2.10
Weight (Gram) 60.0
Circuit Type G1 Programable Digital
Motor Type Coreless Metal Brush
Gear Material Metal
Bearing Type Dual Ball Bearing
Output Shaft (type / Ømm) Standard 24
Case Material Plastic
Dust / Water Resistance N / A
Connector Gauge (AWG) / Strand Count 25 / 40
Radio Control Applications
Parkflyer N / A
Sport Plane 30%
Sailplane 2 meter and up
3D Performance 30%
Scale 30%
Electric Helicopter 700mm
Gas Helicopter 90+ Class
On Road 1/8th
Monster Truck 1/8th
Buggies 1/8th
Truggies 1/8th
Short Course / Truck 1/8th
Crawlers 1/8th
Sail Boat = >1 meter & Scale
Power Boat N / A
