Leopard 8072-8T 220kv Brushless Airplane Motor

Original price $159.99 - Original price $159.99
Original price
$159.99 - $159.99
Current price $159.99
in stock, ready to be shipped

Expertly designed and precisely constructed using the most advanced CNC components, Leopard Brushless Motors adhere to the highest and strictest quality standards. Leopard Power Model Co. has over 15 years experience manufacturing high quality precision hardware, and is focused on ensuring the consistency of their products. Constructed from beautifully anodized aluminum alloy and top-quality components, Leopard motors deliver optimum performance, quality, and reliability at a price much less than many other premium motor brands on the market today.

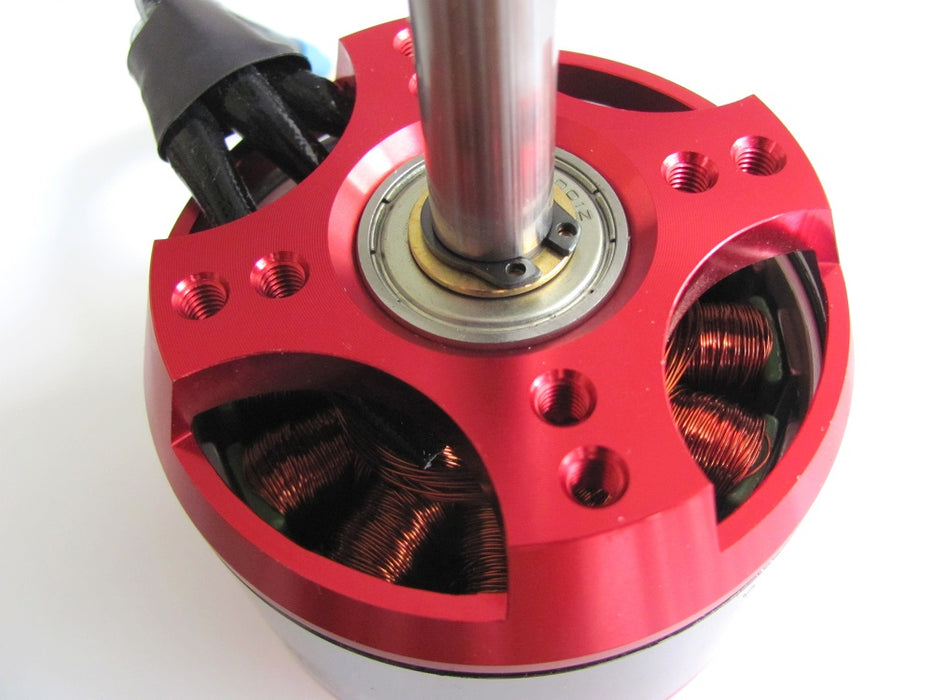

Leopard LC-series brushless motors feature an extended shaft which protrudes out the rear of the motor. This allows the user flexible mounting options without having to disassemble the motor to reverse the shaft. The user can either (1) mount the motor in a traditional manner against the front of a firewall and use the included bolt-on prop adapter, or (2) mount it against the rear of the firewall with the shaft extending forward. This mounting option is most common in sailplanes or racer-style models and requires you to use a collet-style adapter available separately or sometimes included with your model.

What's included:

● (1) LC8072-8T 220kv motor, pre-soldered with 4.0mm male bullet connectors
● (1) Set of matching 4.0mm bullet connectors for your ESC
● (1) X-mount plate
● (1) Bolt-on style threaded prop adapter


● Lightweight design uses reinforced materials to ensure high-speed operation under constant conditions
● High efficiency w/ low running temperatures
● Built from top-quality materials with premium imported bearings
● Dynamic balancing accuracy of at least 99%, greatly improving the efficiency of the motor.
● Hand wound with precision
● High overload capacity
● Excellent heat dissipation
● Designed to endure even the most demanding applications
● Long service life with minimal maintenance required


  • KV: 220
  • Lipo cells: 6-13s
  • No load current (7.4v): 2.4A
  • Max current: 110A
  • Power: 4200W (See chart linked below)
  • Resistance: .0156 ohm
  • Configuration: 12 slot, 14 pole
  • Prop adapter shaft size: M12
  • Motor shaft diameter: 12.0mm
  • Dimensions: 80.0 x 72.0
  • Weight: 1098g (motor only) | 1288g (w/ prop adapter & x-mount)**
  • Prop: 18x8 - 18x10
  • Max Pull: 12.1kg

**All motors have been weighed in-shop by Altitude Hobbies. These weight figures are accurate and not underrated manufacturer estimates.

Click here to view the Leopard 8072 Propeller Data and Specifications Chart

Warranty: Leopard guarantees the quality and precision of their products, and all Leopard brushless motors come with a 240-day warranty from the time of purchase. If an issue is found to be the fault of a manufacturing defect with the motor, we will replace the item or refund the original purchase price (buyer’s choice) on behalf of Leopard Power Model Co.

This motor is roughly equivalent to a Rimfire 50cc and larger than an E-Flite Power 180.

Customer Reviews

Based on 2 reviews
Raymond S. (Oklahoma City, US)
Quality at a goid price

Have not yet ran the motor, but it looks to be of good quality. Was shipped quickly, no problems at all.

Roger B.
Great replacement for the rimfire 50cc motor that is discontinued.

This is a perfect replacement for the rimfire 50cc motor. Props are in the same range and it makes way more power than the charts show. This will allow 22 inch plus size props on 12s with no issues. I'm running on a 21x10 right now showing over 80 amps on 12s and it doesnt even get warm. Looking forward to getting as much power as I can out of this for some run 3D flying. I started with the 280kv version, but that one is limited to props under 20" on 12s. The best thing about these motors is you can play around with the kv to get the perfect prop/battery combo. I'll be posting more info on rcgroups when I can, but the entire leopard series has really good quality for a really low price.
