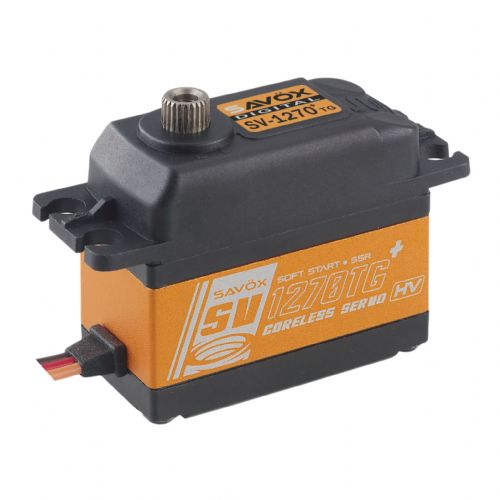

Savox SV1270TGP High Voltage Coreless Digital Servo w/ Soft Start

by Savox
Original price $105.99 - Original price $105.99
Original price
$105.99
$105.99 - $105.99
Current price $105.99
Availability:
in stock, ready to be shipped
High Voltage Coreless Digital Servo with Soft Start, 0.10sec / 624.9oz @ 8.4V

The Savox SV-1270TG Digital High Voltage "Monster Torque" Titanium Gear Servo is built to handle extreme requirements, with a great combination of speed and high torque. It's a fantastic choice for 1/8 applications.

"Plus" series servos feature Soft Start and Sanwa SSR compatibility.

Features:

  • Super strong, precision made titanium gears provide durability that will survive heavy use.
  • Ideal for large-scale airplane, 1/8 truck, and Monster Truck applications
  • The servo that racers desire.
  • Specifications:

  • Torque @ 7.4V - 40.0kg/555.5oz-in
  • Torque @ 8.4V - 45.0kg/624.9oz-in
  • Speed @ 7.4V - 0.11 sec/60 deg
  • Speed @ 8.4V - 0.10 sec/60 deg

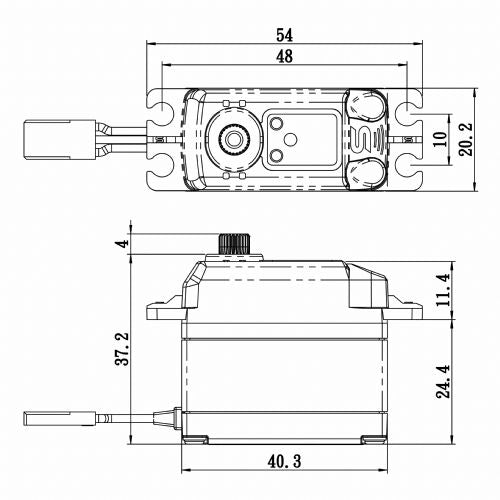

  • Dimensions L x W x H (mm): 40.3 x 20.2 x 37.2
  • Weight: 64.0g

  • Technical Specs:

    • Operating Temperature: 14° - 122°F (-10° - 50°C)
    • Running Current (no load): 120mA @6.0V, 150mA @7.4V
    • Stall Current (at locked): 5500mA @6.0 V, 6800mA @7.4V
    • Idle Current: 5mA @4.8V, 5mA @6.0V
    • Wire Length: 200 ± 5mm
    • Output Gear Spline: 25 Tooth
    • Bearings: 2BB
    • Operating Travel: 100° (1000 → 2000 µ second)
    • Neutral Position: 1500 µ second
    • Pulse Width Range: 800 → 2200 µ second
    • Maximum Travel: Appx 130° (900 → 2100 µ second)
    • Refresh Rate: 333 Hz
    • Motor Type: Coreless
