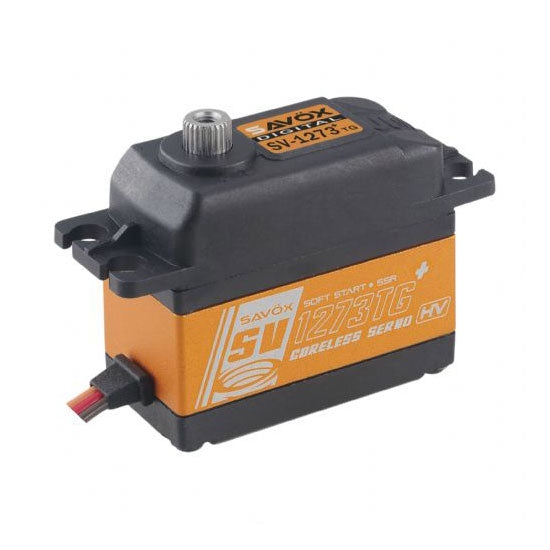

Savox SV1273TGP High Voltage Coreless Digital Servo w/ Soft Start

by Savox
Original price $105.99 - Original price $105.99
Original price
$105.99
$105.99 - $105.99
Current price $105.99
Availability:
in stock, ready to be shipped
High Voltage Coreless Digital Servo with Soft Start, 0.055sec / 347.2oz @ 8.4V

This is the Savox SV-1273TG Ultra Speed High Voltage Titanium Gear Digital Servo

"Plus" series servos feature Soft Start and Sanwa SSR compatibility.

Features:

  • Super strong, precision made titanium gears provide durability that will survive heavy use.
  • Capable of HV operation.
  • Ideal for 1/10 buggies and some heli applications
  • Specifications:

  • Torque @ 7.4V - 20.0kg/277.7oz-in
  • Torque @ 8.4V - 25.0kg/347.2oz-in
  • Speed @ 7.4V - 0.065 sec/60 deg
  • Speed @ 8.4V - 0.055 sec/60 deg

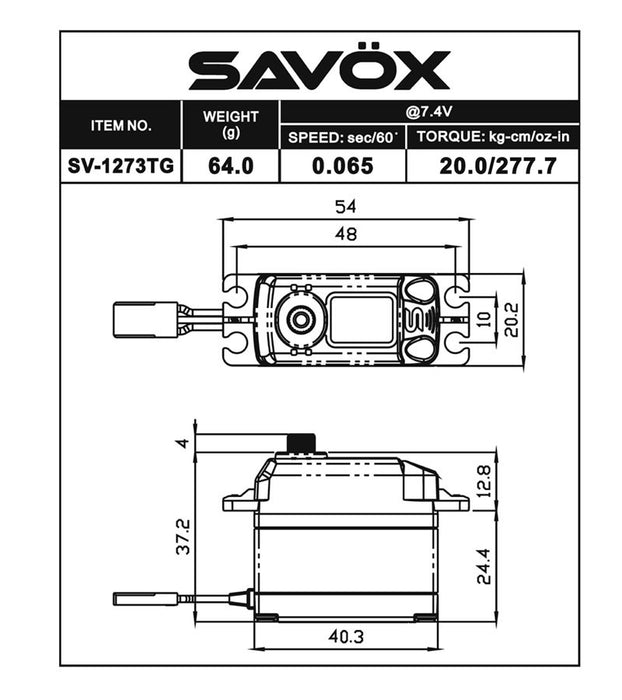

  • Dimensions L x W x H (mm): 40.3 x 20.2 x 37.2
  • Weight: 64.0g

  • Technical Specs:
    • Operating Temperature: 14° - 122°F (-10° - 50°C)
    • Running Current (no load): 120mA @6.0V, 150mA @7.4V
    • Stall Current (at locked): 4000mA @6.0V, 5000mA @7.4V
    • Idle Current: 5mA @4.8V, 5mA @6.0V
    • Wire Length: 200 ± 5mm
    • Output Gear Spline: 25 Tooth
    • Bearings: 2BB
    • Operating Travel: 100° (1000 → 2000 µ second)
    • Neutral Position: 1500 µ second
    • Pulse Width Range: 800 → 2200 µ second
    • Maximum Travel: Appx 130° (900 → 2100 µ second)
    • Refresh Rate: 333 Hz
    • Motor Type: Coreless
