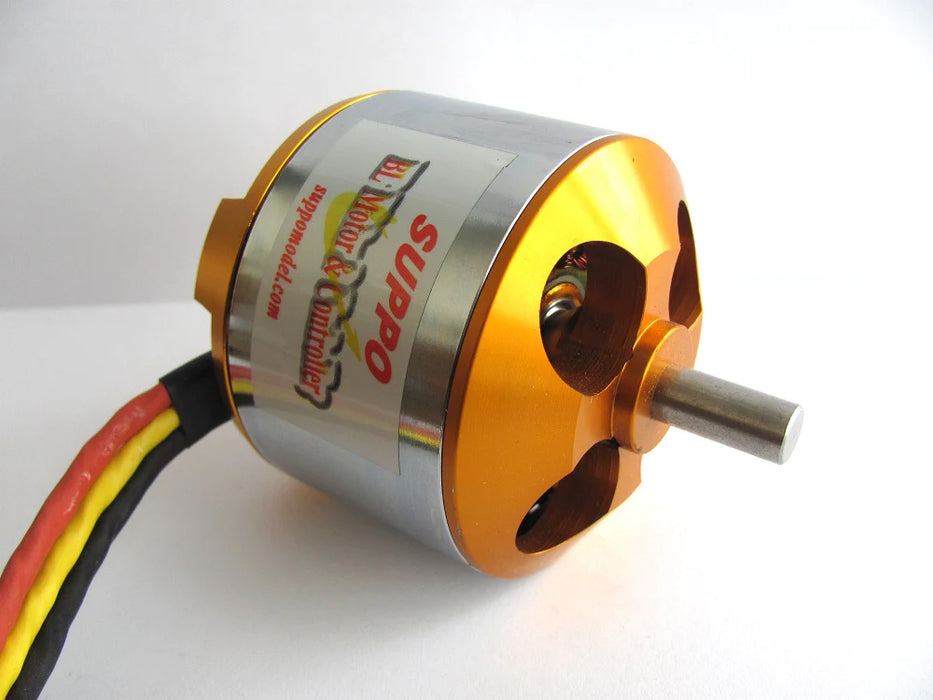

Suppo 5345/7 200kv Brushless Motor

by Suppo
Original price $109.99 - Original price $109.99
Original price
$109.99 - $109.99
Current price $109.99
Only 1 left!

Suppo is a leading manufacturer of professional motors, ESCs, servos, and other RC electronics on the market today. Suppo motors provide excellent performance, quality, and dependability at an affordable price. Manufactured with high quality bearings and components, Suppo brushless motors are some of the smoothest and most powerful in their class.

Each motor is PRE-SOLDERED with 4.0mm male gold bullet connectors, and includes an accessory pack with collet-style prop adapter, X-mount plate, and matching set of female 4.0mm bullet connectors.

Suppo 5345/7 (63-76) 260kv Specifications:

● Number of Cells: 12s lipo
● Max Efficiency Current: 45-60A (>86%)
● No Load Current (10v): 1.2A
● Max Current: 90A/60s
● Max Efficiency: 90%
● Resistance: 44mΩ
● Shaft Size: 8.0mm
● Poles: 14
● Max Watts: 3996W
● Weight: 862g (motor only) / 946g (with mount plate & prop adapter)
● Motor Dimensions: 63x76 (mm)
● Motor bolt pattern (back of motor): 40mm x 40mm (hole to hole)
● X-mount hole pattern: 80mm x 80mm (hole to hole)
● Recommended Model Weight: up to 26.45lbs (12kg)
● Recommended Prop Size: 22" (12s) or 24" (10s)

**Please refer to the manufacturer specifications listed above to determine the correct ESC size for your application. We suggest you choose an ESC rated for at least 20% above the max current rating of the motor (example: if your motor’s max current rating is 35A, choose an ESC of at least 42A). If you are new to the hobby or have questions about choosing the correct ESC, please call or email us before ordering.
