DJI Matrice 4E Mapping Build-Your-Bundle

Altitude Drones has been a leading drone retailer since 2011. Unlike other drone dealers, we don't include items in our bundles you'll never use and we don't inflate the price while saying it is a "bundle special." We educate you on the available options/accessories, what you may or may not need, and then let you user-configure the bundle to exactly how you want from a list of available options you can trust because we've hand selected them based on our experience in the industry. You'll find our bundle pricing comes out lower than the other guys because you actually see the individual item price as you build it rather than a one-size-fits-all package.

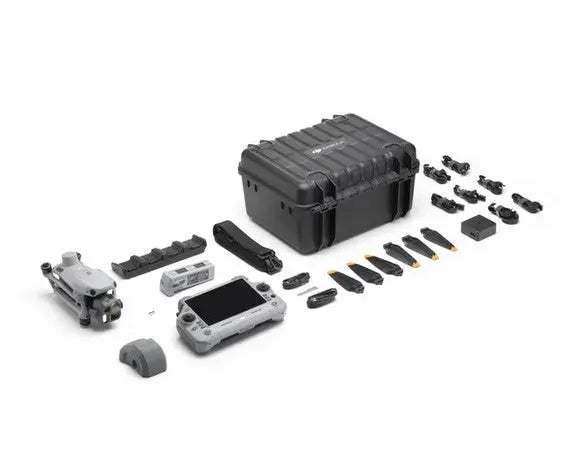

The Matrice 4E bundle starts with the OEM DJI combo which includes:

• 1x DJI Matrice 4E

• 1x DJI RC Plus 2 Enterprise
• 1x intelligent flight battery
• 1x DJI 100W USB-C Power Adapter
• 1x DJI Matrice 4 Series Charging Hub
• 1x microSD Card
• 1x DJI Matrice 4E Gimbal Protector
• 1x DJI Cellular Dongle 2 Pry Bar
• 3x DJI Matrice 4 Series Propellers
• 1x 100W Power Adaptor AC Cable
• 1x USB-C to USB-C Data Cable
• 1x USB-A to USB-C Data Cable
• 1x DJI Matrice 4 Series Storage Case
• 1x DJI Matrice 4 Series Storage Case Shoulder Strap


You then have the option of selecting extras accessories from the options above!

For a complete mapping Matrice 4E setup, we recommend at least 3 total flight batteries to minimize down time between projects. Optionally, we recommend a fast charger. Depending on your application, the DJI Manifold 3, LR-01 obstacle avoidance module, and D-RTK3 base station may be beneficial. We will talk about those more below.

Optional fast chargers:

The included OEM charging hub from DJI charges just one battery at a time. We offer several options for optional fast chargers to keep you in the air longer.

• AK M4T4 charging hub (most popular): this 300W hub can charge 4 batteries at once. It can charge the first two batteries in approximately 70-80 min and the remaining two in 30-40 additional minutes for an overall charge time of approximately 110 minutes for all 4. This option is a good blend of charging speed and cost.
• AK M4T8 charging case: this 600W charging case can charge up to 8 batteries in 110-120 minutes.
• Colorado Drone Chargers PRCS case: this option is the best in our opinion, allowing up to 4 batteries to be fully charged in approximately 60 min time. CDC is widely regarded as making the best fast chargers on the market. It charges the most batteries the fastest but costs more.

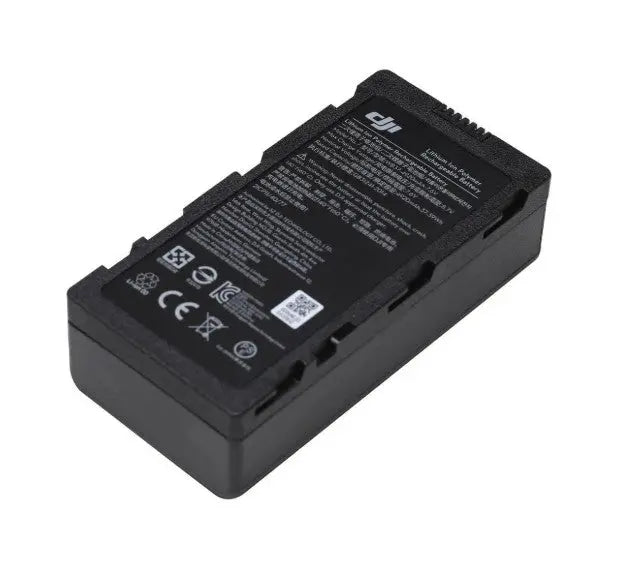

Optional WB37 controller battery: the controller for the Matrice 4 features a built-in battery with up to 7 hours of run time. You have the option of using an external DJI WB37 controller battery which fits in the back of the controller for an additional 4-6 hours of run time on extended operations. The battery is hot swappable and helps ensure you don't get grounded due to a dead controller. Optionally, you can also add the LKTOP charging hub to charge the WB37 battery independently of the controller. Alternatively, the WB37 can be charged while installed in the controller using the included OEM charger. Therefore, the charging hub for the WB37 is also an optional accessory but handy in situations where you are flying for hours at a time and need to ensure continued operations without interruption.

LKTOP WB37 charging hub: The optional WB37 remote battery can be charged while installed in the remote using the OEM charger, or this optional LKTOP charging hub allows for separate, faster charging of up to 2x batteries.

Mobile ops monitor case: Lastly, you can choose to add on a Seetec 21.5" rugged monitor case for enhanced mobile field ops. The Seetec case features a 1000nit daylight-bright monitor enclosed in a ruggedized case. This allows you to output the controller screen onto a larger viewing surface for better viewing of small details on the go. We recommended powering it with a vehicle power inverter or mobile power source such as a Jackery or EcoFlow lithium generator. This can also be used for mobile charging of drone batteries in the field.

DJI Manifold 3: the DJI Manifold 3 is an high performance onboard computing module that expands the capabilities of the DJI Matrice 4E by providing real-time data processing and intelligent automation directly on the drone. Equipped with up to 100 TOPS of AI computing power, 16GB of RAM, and 256GB of onboard storage, it allows advanced processing tasks to be performed directly on the aircraft instead of relying on a remote computer or cloud connection. For mapping applications, it enables advanced features such as smart 3D modeling and automated flight route generation, helping pilots capture more complete datasets with less manual planning. By reducing field time, improving data quality, and streamlining surveying and inspection workflows, the Manifold 3 is an excellent upgrade for mapping professionals looking to maximize the efficiency and value of their operations.

DJI LR-01 Obstacle Sensing Module: The DJI LR-01 Obstacle Sensing Module is an advanced LiDAR and millimeter-wave radar accessory for the DJI Matrice 4E that enhances obstacle detection beyond the drone’s built-in vision sensors. It can detect wires, branches, and other obstacles as small as 12mm thick at speeds up to 15 m/s, helping pilots safely operate in complex environments such as utility corridors, construction sites, and infrastructure inspections. For mapping missions, the LR-01 provides an extra layer of safety when flying near power lines, towers, and other hard-to-detect obstacles, reducing risk and increasing confidence during automated flight operations.

DJI D-RTK3 Multi-Function Station and Tripod/Survey Pole: The DJI D-RTK 3 Multifunctional Station is a high-precision GNSS base station that provides centimeter-level positioning accuracy for mapping drones such as the DJI Matrice 4E. When paired with the Survey Pole and Tripod Kit, it creates a stable, elevated reference point that broadcasts RTK corrections to the drone throughout the mission, significantly improving the accuracy of orthomosaics, point clouds, and 3D models. The D-RTK 3 can also be used as a rover for collecting ground control points and survey data, making it an ideal solution for surveyors, engineers, and mapping professionals who require highly accurate geospatial data while reducing the need for extensive ground control.

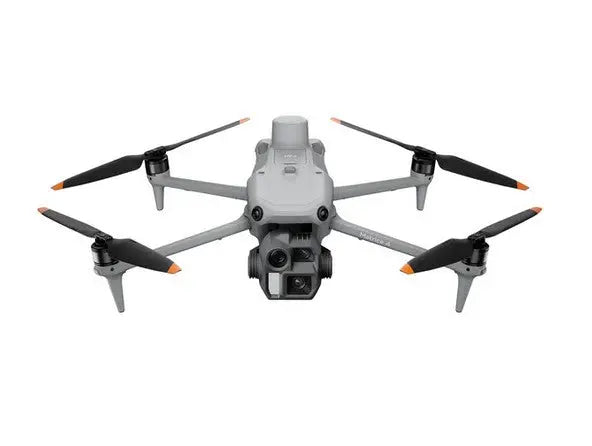

Aircraft
Takeoff Weight (with propellers): 1219 g** The standard weight of the aircraft (including the battery, propellers, and a microSD card). The actual product weight may vary due to differences in batch materials and external factors.
Takeoff Weight (with Low-Noise propellers): 1229 g** The standard weight of the aircraft (including the battery, propellers, and a microSD card). The actual product weight may vary due to differences in batch materials and external factors.
Max Takeoff Weight: Standard Propellers: 1420 g, Low-Noise Propellers: 1430 g
Dimensions: Folded: 260.6×113.7×138.4 mm (L×W×H), Unfolded: 307.0×387.5×149.5 mm (L×W×H), Maximum dimensions excluding propellers.
Max Payload: 200 g
Propeller Size: 10.8 in
Diagonal Wheelbase: 438.8 mm
Max Ascent Speed: 10 m/s
Maximum Ascent Speed With Accessories: 6 m/s
Max Descent Speed: 8 m/s
Max Descent Speed With Accessories: 6 m/s
Max Horizontal Speed (at sea level, no wind): 21 m/s, 21 m/s flying forward, 18 m/s flying backward, 19 m/s flying sideways. No faster than 19 m/s with Sport mode in EU regions.
Max Altitude: 6000 m
Max Operating Altitude with Payload: 4000 m
Max Flight Time (without wind): 49 min (standard propellers), 46 min (low-noise propellers). Measured with the aircraft flying at approximately 8 m/s without payloads in a windless environment until the battery level reached 0%. Data is for reference only. Actual usage time may vary depending on the flight mode, accessories, and environment.
Max Hover Time (without wind): 42 min (standard propellers), 39 min (low-noise propellers). Measured with the aircraft flying at approximately 8 m/s without payloads in a windless environment until the battery level reached 0%. Data is for reference only. Actual usage time may vary depending on the flight mode, accessories, and environment.
Max Flight Distance (no wind): 35 km (standard propellers), 32 km (low-noise propellers). Measured by the aircraft hovering in a windless environment at sea level, from 100% battery level until 0%.
Max Wind Speed Resistance: 12 m/s** Max wind speed resistance during takeoff and landing.
Max Pitch Angle: 35°
Operating Temperature: -10℃ to 40℃ (14°F to 104°F)
GNSS: GPS + Galileo + BeiDou + GLONASS** GLONASS is supported only when the RTK module is enabled.
Hovering Accuracy Range (windless or breezy): ±0.1 m (with Vision System); ±0.5 m (with GNSS); ±0.1 m (with RTK)
RTK GNSS Accuracy: RTK Fix: 1 cm + 1 ppm (horizontal), 1.5 cm + 1 ppm (vertical)
Internal Storage: N/A
Ports: E-Port interface × 1: Supports official accessories and third-party PSDK devices (hot-swapping is not supported). E-Port Lite interface × 1: supports USB connection to DJI tuning software and some third-party PSDK devices. Accessories or expansion modules must be installed before powering on.
Propeller Model: 1157F (standard propellers), 1154F (low noise propeller)
Beacon: Built into the aircraft

Camera
Image Sensor: DJI Matrice 4T Wide: 1/1.3-inch CMOS, Effective Pixels: 48 MP, Medium Tele Camera: 1/1.3-inch CMOS, Effective Pixels: 48 MP, Telephoto: 1/1.5-inch CMOS, Effective Pixels: 48 MP, DJI Matrice 4E Wide: 4/3-inch CMOS, Effective Pixels: 20 MP, Medium Tele Camera: 1/1.3-inch CMOS, Effective Pixels: 48 MP, Telephoto: 1/1.5-inch CMOS, Effective Pixels: 48 MP
Lens: DJI Matrice 4T FOV: 82°, Equivalent Focal Length: 24 mm, Aperture: f/1.7, Focus: 1 m to ∞, DJI Matrice 4E FOV: 84°, Equivalent Focal Length: 24 mm, Aperture: f/2.8-f/11, Focus: 1 m to ∞, Medium Tele Camera FOV: 35°, Equivalent Focal Length: 70 mm, Aperture: f/2.8, Focus: 3 m to ∞, Tele camera FOV: 15°, Equivalent Focal Length: 168 mm, Aperture: f/2.8, Focus: 3 m to ∞
ISO Range: Normal Mode: ISO 100 to ISO 25600, Night Scene Mode: Matrice 4T: Wide Camera: ISO 100 to ISO 409600, Medium Tele Camera: ISO 100 to ISO 409600, Tele Camera: ISO 100 to ISO 819200, Matrice 4E: Wide Camera: ISO 100 to ISO 204800, Medium Tele Camera: ISO 100 to ISO 409600, Tele Camera: ISO 100 to ISO 409600
Shutter Speed: DJI Matrice 4T 2-1/8000 s, DJI Matrice 4E Wide: Electronic Shutter: 2-1/8000 s, Mechanical Shutter: 2-1/2000 s, Medium Telephoto: 2-1/8000 s, Telephoto: 2-1/8000 s
Max Photo Size: DJI Matrice 4T Wide: 8064 × 6048, Medium Telephoto: 8064 × 6048, Telephoto: 8192 × 6144, DJI Matrice 4E Wide: 5280 × 3956, Medium Telephoto: 8064 × 6048, Telephoto: 8192 × 6144
Minimum Photo Interval: DJI Matrice 4T: 0.7 s, DJI Matrice 4E: 0.5 s
Still Photography Modes: DJI Matrice 4T: Wide: Single: 12 MP/48 MP, Interval: 12 MP/48 MP, JPEG: 0.7/1/2/3/5/7/10/15/20/30/60 s, Smart Shooting: 12MP, Panorama: 12 MP (raw image), 100 MP (stitched image), Medium Tele Camera: Single: 12 MP and 48 MP, Interval: 12 MP/48 MP, JPEG: 0.7/1/2/3/5/7/10/15/20/30/60 s, Smart Shooting: 12MP, Telephoto: Single: 12 MP and 48 MP, Interval: 12 MP/48 MP, JPEG: 0.7/1/2/3/5/7/10/15/20/30/60 s, Smart Shooting: 12MP, DJI Matrice 4E: Single: 20 MP, Interval: 20 MP, JPEG: 0.5/0.7/1/2/3/5/7/10/15/20/30/60 s, JPEG + RAW: 2/3/5/7/10/15/20/30/60 s, Smart Shooting: 20 MP, Panorama: 20 MP (raw image), 100 MP (stitched image), Medium Tele Camera: Single: 12 MP and 48 MP, Interval: 12 MP/48 MP, JPEG: 0.5/0.7/1/2/3/5/7/10/15/20/30/60 s, Smart Shooting: 12 MP, Telephoto: Single: 12 MP and 48 MP, Interval: 12 MP/48 MP, JPEG: 0.5/0.7/1/2/3/5/7/10/15/20/30/60 s, Smart Shooting: 12 MP
Video Codec and Resolution: Video Coding Format: H.264/H.265, Coding Strategy: CBR, VBR, Resolution: 4K: 3840 × 2160@30fps, FHD: 1920 × 1080@30fps
Max Video Bitrate: H.264: 60Mbps, H.265: 40Mbps
Supported File System: exFAT
Photo Format: DJI Matrice 4T: JPEG, DJI Matrice 4E: Wide: JPEG/DNG (RAW), Medium Tele Camera: JPEG, Telephoto: JPEG
Video Format: MP4 (MPEG-4 AVC/H.264)
Digital Zoom: Telephoto: 16x (112x hybrid zoom)

NIR Auxiliary Light
Infrared Illumination: DJI Matrice 4T: FOV: 5.7°±0.3°

Laser Module
Laser Rangefinding: Measurement Range: 1800 m (1 Hz) @20% reflectivity target* Oblique Incidence Range (1:5 Oblique Distance): 600 m (1 Hz) Blind Zone: 1 m Distance Measurement Accuracy: 1-3 m: System Error <0.3 m, Random Error <0.1 meters @1σ Other Distances: ±(0.2+0.0015D) (D represents the measurement distance in meters) * Performance degradation may occur in rainy or foggy conditions

Infrared Thermal Camera
Thermal Imager: DJI Matrice 4T: uncooled vanadium oxide (VOx) DO NOT expose the infrared camera lenses to strong sources of energy such as the sun, lava, or a laser beam. Otherwise, the camera sensor may be burned leading to permanent damage.
Resolution: DJI Matrice 4T: 640 × 512
Pixel Pitch: DJI Matrice 4T: 12 μm
Frame Rate: DJI Matrice 4T: 30 Hz
Lens: DJI Matrice 4T DFOV: 45°±0.3°, DJI Matrice 4T equivalent focal length: 53 mm, DJI Matrice 4T Aperture: f/1.0, DJI Matrice 4T Focus: 5 m to ∞
Sensitivity: DJI Matrice 4T: ≤50mk@F1.0
Temperature Measurement Method: DJI Matrice 4T: Spot Meter, Area Measurement
Temperature Measurement Range: DJI Matrice 4T: High Gain Mode: -20℃ to 150℃ (-4°F to 302°F), Low Gain Mode: 0℃ to 550℃ (32°F to 1022°F)
Palette: DJI Matrice 4T: White Hot/Black Hot/Tint/Iron Red/Hot Iron/Arctic/Medical/Fulgurite/Rainbow 1/Rainbow 2
Photo Format: DJI Matrice 4T: JPEG (8bit), R-JPEG (16bit)
Video Resolution: DJI Matrice 4T: 1280 × 1024@30fps (Super Resolution enabled, Night Mode not activated), Other conditions: 640 × 512@30fps
Video Bitrate: DJI Matrice 4T: 6.5Mbps (H.264 640 × 512@30fps), 5Mbps (H.265 640 × 512@30fps), 12Mbps (H.264 1280 × 1024@30fps), 8Mbps (H.265 1280 × 1024@30fps)
Video Format: DJI Matrice 4T: MP4
Still Photography Modes: DJI Matrice 4T: Single: 1280 × 1024/640 × 512, Interval: 1280 × 1024/640 × 512, JPEG: 0.7/1/2/3/5/7/10/15/20/30/60 s
Photo Resolution: DJI Matrice 4T: Infrared: 1280 × 1024 (Super Resolution on), 640 × 512 (Super Resolution off)
Digital Zoom: DJI Matrice 4T: 28x
Infrared Wavelength: DJI Matrice 4T: 8um to 14um
Infrared Temperature Measurement Accuracy: DJI Matrice 4T: High Gain: ±2℃ or ±2%, whichever is greater, DJI Matrice 4T: Low Gain: ±5℃ or ±3%, whichever is greater

Gimbal
Stabilization System: DJI Matrice 4T: 3-axis (tilt, roll, pan), DJI Matrice 4E: 3-axis (tilt, roll, pan)
Mechanical Range: DJI Matrice 4T Gimbal Mechanical Limits: Tilt: -140° to 113°, Roll: -52° to 52°, Pan: -65° to 65°, Soft Limits: Tilt: -90° to 35°, Roll: -47° to 47°, Pan: -60° to 60°, DJI Matrice 4E Gimbal Mechanical Limits: Tilt: -140° to 50°, Roll: -52° to 52°, Pan: -65° to 65°, Soft Limits: Tilt: -90° to 35°, Roll: -47° to 47°, Pan: -60° to 60°
Controllable Rotation Range: DJI Matrice 4T: Pan: ±-90° to 35°, Pan: Not controllable, DJI Matrice 4E: Tilt: -90° to 35°, Pan: Not controllable
Max Control Speed (tilt): 100°/s
Angular Vibration Range: ±0.007°
Yaw Axis: Manual operation is uncontrollable. The MSDK interface program is controllable.
Ingress Protection Rating: No Standard Protection Level
Operating Temperature: Standard: -10°C to 40°C (14°F to 104°F)
Sensing
Sensing Type: Omnidirectional binocular vision system, supplemented with a 3D infrared sensor at the bottom of the aircraft.
Forward: Binocular Measurement Range: 0.4-22.5 m, Measurement Range: 0.4-200 m, Obstacle Avoidance Speed: Flight Speed ≤21 m/s, FOV: 90° (horizontal), 135° (vertical)
Backward: Measurement Range: 0.4-22.5 m, Measurement Range: 0.4-200 m, Obstacle Avoidance Speed: Flight Speed ≤21 m/s, Field of View (FOV): 90° (horizontal), 135° (vertical)
Lateral: Measurement Range: 0.5-32 m, Measurement Range: 0.5-200 m, Obstacle Avoidance Speed: Flight Speed ≤21 m/s, FOV: 90° (horizontal), 90° (vertical)
Downward: Measurement Range: 0.3-18.8 m, Obstacle Avoidance Speed: Flight Speed ≤10 m/s, The FOV to the front and rear is 160° and 160° to the right and left.
Operating Environment: Forward, Backward, Left, Right, and Upward: Delicate texture on the surface, adequate light. Downward: The ground has rich textures and sufficient lighting conditions*, with a diffuse reflection surface and a reflectivity greater than 20% (such as walls, trees, people, etc.). * Sufficient lighting conditions refer to an illuminance not lower than that of a nighttime city light scene.

Video Transmission
Video Transmission System: O4 Enterprise
Live View Quality: Remote Controller: 1080p/30fps
Operating Frequency: 2.400-2.4835 GHz, 5.725-5.850 GHz, 5.150-5.250 GHz (CE), Operating frequency allowed varies among countries and regions. Refer to local laws and regulations for more information.
Transmitter Power (EIRP): 2.4 GHz: ≤33 dBm (FCC), ≤20 dBm (CE/SRRC/MIC), 5.8 GHz: <33 dBm (FCC), <30 dB (SRRC), <14 dBm (CE), 5.15-5.25: <23 dBm (FCC/CE)
Max Transmission Distance (unobstructed, free of interference): 25 km (FCC), 12 km (CE), 12 km (SRRC), 12 km (MIC). Measured in an unobstructed environment free of interference. The above data shows the farthest communication range for one-way, non-return flights under each standard. During your flight, please pay attention to RTH reminder on the DJI Pilot 2 app.
Max Transmission Distance (with interference): Strong Interference - City Centers (approx. 1.5-5 km), Medium Interference - Suburban Areas (approx. 5-15 km), Micro interference: Suburbs/Seasides (approx. 15-25 km). * Data is tested under FCC standards in unobstructed environments of typical interference. Only to serve as a reference and provides no guarantee as to the actual flight distance.
Max Download Speed: 20 MB/s. The above data was measured under conditions where the aircraft and remote controller were in close proximity without interference.
Latency (depending on environmental conditions and mobile device): 130 ms. Under near-field interference-free conditions, the Latency performance when shooting with a 1x lens.
Antenna: 8 antennas, 2T4R
Others: Cellular Dongle Compartment

Memory Card
Supported SD Cards: U3/Class10/V30 or above is required, or use a memory card from the recommended list.
Recommended microSD Cards: Lexar 1066x 64GB U3 A2 V30 microSDXC, Lexar 1066x 128GB U3 A2 V30 microSDXC, Lexar 1066x 256GB U3 A2 V30 microSDXC, Lexar 1066x 512GB U3 A2 V30 microSDXC, Kingston Canvas GO! Plus 64GB U3 A2 V30 microSDXC, Kingston Canvas GO! Plus 128GB U3 A2 V30 microSDXC, Kingston Canvas GO! Plus 256GB U3 A2 V30 microSDXC, Kingston Canvas GO! Plus 512GB U3 A2 V30 microSDXC

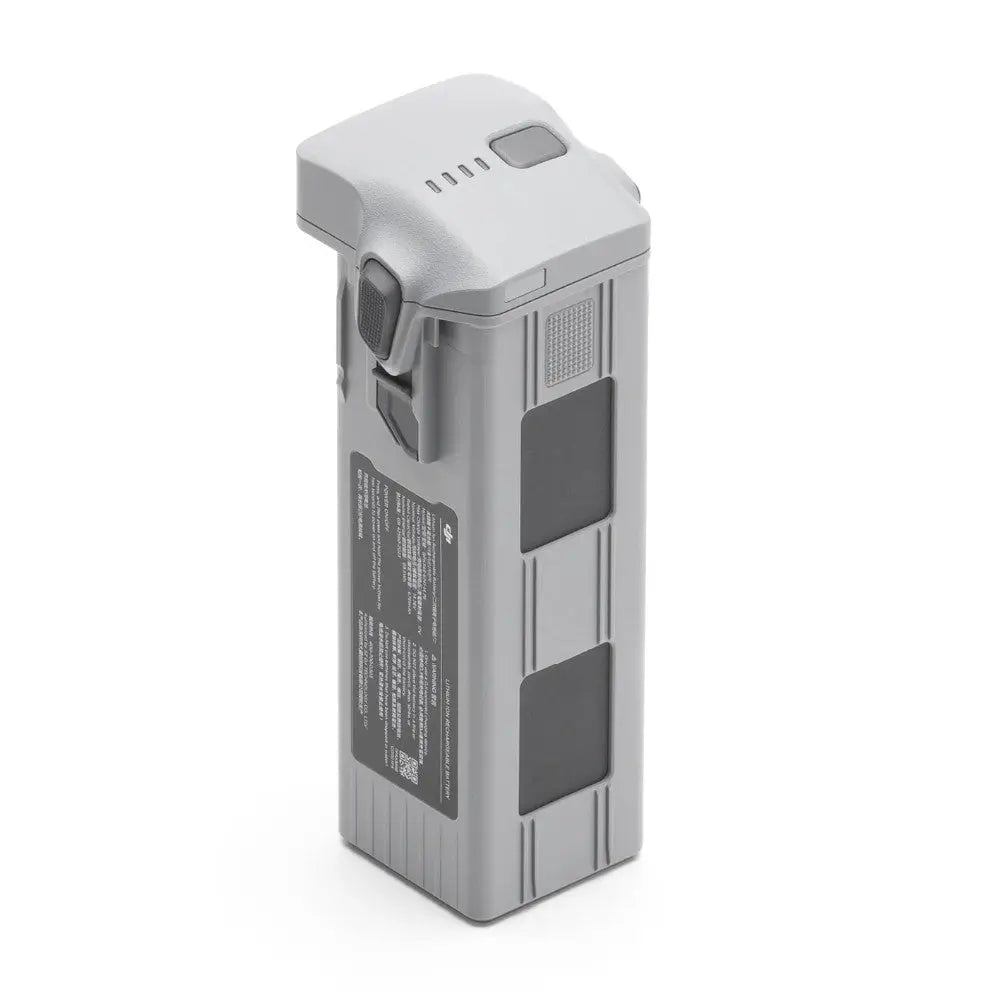

Intelligent Flight Battery
Capacity: 6741 mAh
Standard Voltage: 14.76 V
Max Charging Voltage: 17.0 V
Cell Type: Li-ion 4S
Energy: 99.5 Wh
Weight: 401 g
Recharging Temperature: 5°C to 40°C (41°F to 104°F)
Discharge Rate: 4C
Max Charging Power: 1.8C
Supports low-temperature charging: Not supported
Cycle Count: 200
Power Adapter (100W)
Input: 100-240 V (AC), 50-60 Hz, 2.5 A
Output: Max. 100 W (total). When both ports are used, the max output power of one port is 82 W, and the charger will dynamically allocate the output power of the two ports according to the power load.
Rated Power: 100 W
Charging Hub
Input: USB-C: 5-20 V, max 5 A
Output: Battery Interface: 11.2 V to 17 V
Rated Power: 100 W
Recharging Type: 4 batteries charging in sequence. Support Standard Mode (100% SOC) and Standby Mode (90% SOC)
Compatible Battery: DJI Matrice 4E/T Series Intelligent

Flight Battery
Charging Temperature: 5° to 40°C (41°F to 104°F)

DJI RC Plus 2 Enterprise
Video Transmission System: O4 Enterprise
Max Transmission Distance (unobstructed, free of interference): 25 km (FCC), 12 km (CE), 12 km (SRRC), 12 km (MIC). Measured in an unobstructed environment free of interference. The above data shows the farthest communication range for one-way, non-return flights under each standard. During your flight, please pay attention to RTH reminder on the DJI Pilot 2 app.
Operating Band of Image Transmission: 2.4000-2.4835 GHz, 5.725 - 5.850 GHz, 5.1GHz (receive only). Operating frequency allowed varies among countries and regions. Refer to local laws and regulations for more information.
Antenna: 2T4R, built-in multi-beam high-gain antenna
Video Transmission Transmitter Power (EIRP): 2.4 GHz: <33 dBm (FCC), <20 dBm (CE/SRRC/MIC), 5.1 GHz: <23 dBm (CE), 5.8 GHz: <33 dBm (FCC), <14 dBm (CE), <30 dBm (SRRC)
4G Transmission: DJI Cellular Dongle 2
Wi-Fi Protocol: Wi-Fi Direct, Wireless Display, IEEE 802.11a/b/g/n/ac/ax, Support 2 × 2 MIMO Wi-Fi, Dual Band Simultaneous (DBS) with dual MAC, up to 1774.5 Mbps data rate (2 × 2 + 2 × 2 11ax DBS)
Wi-Fi Operating Band: 2.4000-2.4835 GHz, 5.150-5.250 GHz. 5.8 and 5.2GHz frequencies are prohibited in some countries. In some countries, the 5.2GHz frequency is only allowed for use in indoor.
Wi-Fi Transmitter Power (EIRP): 2.4 GHz: <26 dBm (FCC), <20 dBm (CE/SRRC/MIC), 5.1 GHz: <23 dBm (FCC), 5.8 GHz <23 dBm (FCC/SRRC), <14 dBm (CE)
Bluetooth Protocol: Bluetooth 5.2
Bluetooth Operating Frequency: 2.400-2.4835 GHz
Bluetooth Transmitter Power (EIRP): <10 dBm
Screen Resolution: 1920 × 1200
Screen Size: 7.02 inches
Screen Frame Rate: 60 fps
Brightness: 1400 nits
Touchscreen Control: 10 Points Multi-touch
Built-in Battery: 2S2P High Energy Density 18650 Lithium-ion Battery (6500 mAh @ 7.2 V) 46.8 Wh
External Battery: Optional, WB37 (4920 mAh @ 7.6 V) 37 Wh
Recharging Type: Supports PD fast charging, with a maximum specification of 20 V/3.25 A USB Type-C charger.
Storage Capacity: ROM 128 G + expandable storage via microSD card
Charging Time: 2 hrs for internal battery or internal and external battery. When remote controller is powered off and using a standard DJI charger.
Internal Battery Runtime: 3.8 hrs
External Battery Runtime: 3.2 hrs
Output Port: HDMI 1.4
Indicators: Status light & power light & permission light, three-color light, brightness can be adjusted according to ambient brightness.
Speaker: Supports buzzer
Audio: Array MIC
Operating Temperature: -20° to 50° C (-4°F to 122°F)
Storage Temperature: Within one month: -30° to 45° C (-22°F to 113°F), One to three months: -30° to 35° C (-22°F to 95°F), Three months to one year: -30° to 30° C (-22°F to 86°F)
Recharging Temperature: 5° to 40° C (41°F to 104°F)
Supported Aircraft Models: Support for Matrice 4T/4E

AL1 Spotlight
Weight: 99 g (including bracket), Approx. 91 g (excluding bracket)
Dimensions: 95×164×30 mm (L×W×H, including bracket), 79×164×28 mm (L×W×H, without bracket)
Max. Power: 32 W
Illuminance: 4.3±0.2 lux @ 100 meters, 17±0.2 lux @ 50 meters. The data was measured in a laboratory environment with the spotlight installed separately on the aircraft at an ambient temperature of 25°C.
Effective Illumination Angle: 23° (10% relative illumination)
Effective Illumination Area: 1,300 square meters @ 100 meters (10% relative illumination, Normal Mode), 2,200 square meters @ 100 meters (10% central illuminance, Wide FOV Mode)
Operating Mode: Supports always-on and strobe modes.
Gimbal Structural Design Range: Tilt: -140° to 50°
Controllable Range: Tilt: -90° to 35°
Max Control Speed (tilt): 120°/s
Gimbal Alignment Accuracy: ±0.1°
Operating Temperature: -20°C to 50°C (-4°F to 122°F)
Mounting: Quick-release hand-tightened screws

AS1 Speaker
Weight: 92.5 g (including bracket), Approx. 90 g (excluding bracket)
Dimensions: 73×70×52 mm (L×W×H, including bracket), 73×70×47 mm (L×W×H, without bracket)
Max. Power: 15 W
Max. Volume: At 1 meter, it can reach 114 decibels (114dB@1m). Data measured in a laboratory environment at 25℃. Actual conditions may vary slightly due to software version, audio source, specific environment, and other factors. The final effect is subject to actual use.
Effective Broadcast Distance: 300 m. Data measured in a laboratory environment at 25℃. Actual conditions may vary slightly due to software version, audio source, specific environment, and other factors. The final effect is subject to actual use.
Broadcast Mode: Real-time broadcasting (supports echo suppression*), recorded broadcasting, media import (supports simultaneous transmission and playback), text-to-speech*** Need to upgrade to the latest firmware. ** Currently only supports Chinese and English.
Operating Temperature: -20°C to 50°C (-4°F to 122°F)
Mounting: Quick-release hand-tightened screws
