Freefly Astro Max Public Safety Bundle: Rapid Response Aerial Intelligence System
The Freefly Astro Max Public Safety Bundle delivers precision aerial intelligence for first responders and emergency operations. Built on Freefly’s proven Astro Max platform, this configuration combines high-resolution imaging, thermal capability, and long-duration power for fast, reliable situational awareness in the field. With the Sony ILX-LR1 61 MP camera, Sigma 24 mm f/3.5 lens, and Freefly LR1 Thermal Upgrade, teams can capture both visible and thermal perspectives to locate subjects, assess hazards, and document incidents accurately and efficiently. The aircraft in this bundle is not NDAA approved, but a compliant NDAA/Blue version of the Astro Max is available separately.
Dual-Imaging Capability for Critical Missions
The Astro Max aircraft provides stable flight and flexible payload integration for high-pressure environments. The integrated Sony ILX-LR1 delivers 61-megapixel clarity for mapping, documentation, and evidence collection, while the thermal module enables clear detection through smoke, fog, and darkness. Combined, these sensors give responders the ability to visualize hotspots, locate missing persons, and evaluate structural risks in real time. With IP-rated durability, high-efficiency 2270 propellers, and RTK-ready precision, this aircraft supports complex missions where timing and accuracy are essential.
Field Readiness and Operational Endurance
Designed for extended deployments, the bundle includes six SL8-Air batteries and four SL8 Fast Chargers for continuous flight operations. The SL8 Travel Case keeps the power system organized and field-ready. A Spare Parts Kit and replacement propeller set ensure minimal downtime, while Standard Remote ID compliance allows immediate operation within FAA requirements. From daylight assessments to nighttime search operations, the Astro Max Public Safety Bundle provides the performance and reliability professionals depend on when lives and property are at stake.
Key Features and Benefits
- Dual-sensor capability: 61 MP RGB + thermal imaging for full-spectrum awareness
- Astro Max aircraft: compact, industrial platform built for reliability under stress
- Aircraft not NDAA approved; NDAA/Blue version available separately
- Freefly LR1 Thermal Upgrade: detect heat sources through smoke, fog, or darkness
- Sony ILX-LR1 camera: capture high-detail imagery for documentation and analysis
- RTK ready: supports centimeter-level positioning for precision response mapping
- Six SL8-Air batteries and four SL8 Fast Chargers for extended missions
- 2270 high-efficiency propellers extend flight time by approximately 10 percent
- Standard Remote ID enabled for compliant U.S. operations
- Spare Parts Kit and Travel Case for sustained field support
- Compatible with Freefly Pilot Pro Controller and Herelink radio systems
Compatibility and Integration
- Works with Freefly Pilot Pro Controller and Herelink radio link
- Supports RTK GPS Ground Station via user-supplied computer
- Outputs geotagged RGB and thermal imagery for post-incident analysis
- Uses Freefly SL8-Air batteries and SL8 Fast Chargers
- Compatible with major mapping and public-safety analysis platforms
Applications and Use Cases
- Search and rescue: locate missing persons in low-visibility environments
- Firefighting: detect hotspots, monitor perimeters, and guide containment efforts
- Law enforcement: provide aerial overwatch and evidence documentation
- Disaster response: map affected zones for rapid assessment and recovery planning
- Emergency management: support coordinated operations with live imagery
- Structural inspection: identify heat leaks or damage in critical facilities
- Environmental monitoring: assess wildfire impact or hazardous spills
- Traffic accident reconstruction: document scenes accurately and safely
- Night operations: maintain visibility and orientation after dark
Built for Public Safety and Emergency Response
The Astro Max Public Safety Bundle is purpose-built for agencies and departments that require dependable, high-quality data in real-time conditions. Its dual-imaging system, extended power suite, and field-serviceable design enable fast deployment and continuous operation when minutes matter most. Reliable, compliant, and field-ready, it’s an ideal tool for agencies seeking to strengthen situational awareness and decision-making capabilities.

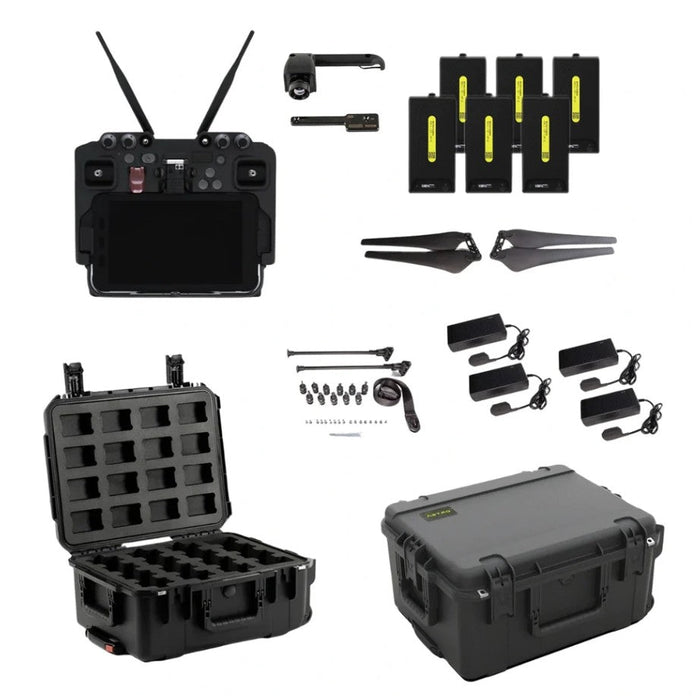

1x Astro Max NDAA/Blue drone (with pre-installed landing gear, props, and Astro Isolator)
1x Astro compact travel case
1x LR1 payload
1x Freefly gimbal
1x Sony ILX-LR1 61MP camera body
1x Sigma 24mm f3.5 mapping lens (p/n 404965)
1x Freefly LR1 Thermal Upgrade
1x USB-C thumb drive
1x Foam insert set for Astro travel case
1x each hex driver (1.5 mm, 2 mm, 2.5 mm)
4x Proptectors
Spare parts:
1x Extra Proptector
4x Spare isolators
2x Rubber hole grommet
1x Pilot Pro controller
1x Samsung Active Tab 3 (pre-configured and installed into controller)
1x Doodle Labs RF, NDAA and DIU Blue 2.4 GHz radio (pre-configured and installed into controller)
1x Custom padded neck strap
6x SL8-Air batteries (3 pairs)
4x SL8 fast chargers
1x SL8 travel case
1x Astro Max replacement props (2270 high efficiency, set with CW & CCW)
1x Astro spare parts kit

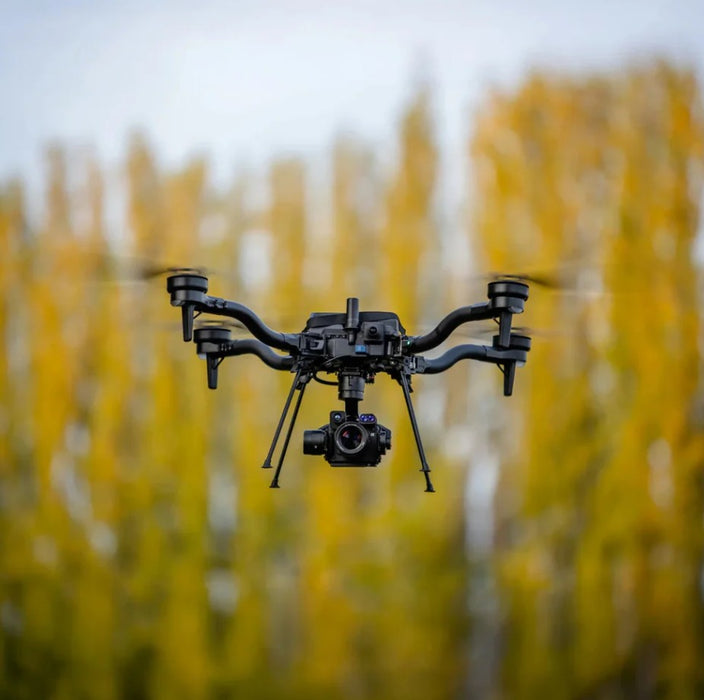

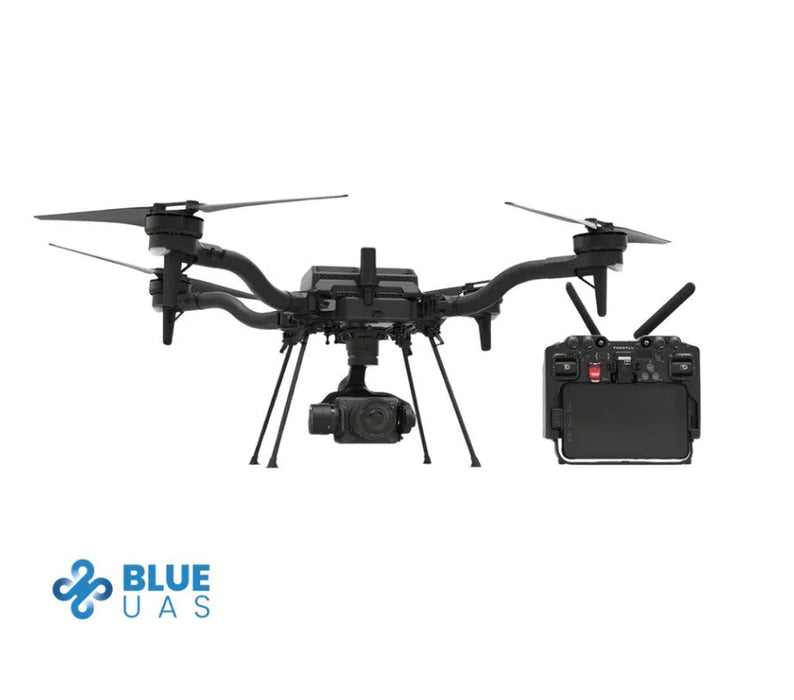

Astro Max (NDAA/Blue)
Up to 39 minutes max flight time
28 minutes flight time with LR1 Payload
18 minutes flight time with 3 kg max payload
3 kg maximum payload capacity
Booms fold to half the aircraft's diameter
Standard Remote ID enabled; can be disabled with FAA waiver or exemption
Optional LTE connectivity (North America only)
Alternate payload attachments sold separately:
Integrator Vibration Isolator (non-electronic), Freefly Smart Dovetail Kit (hard mount)
See Astro wiki for full technical specifications
Designed and assembled in the USA
NDAA and DIU Blue approved

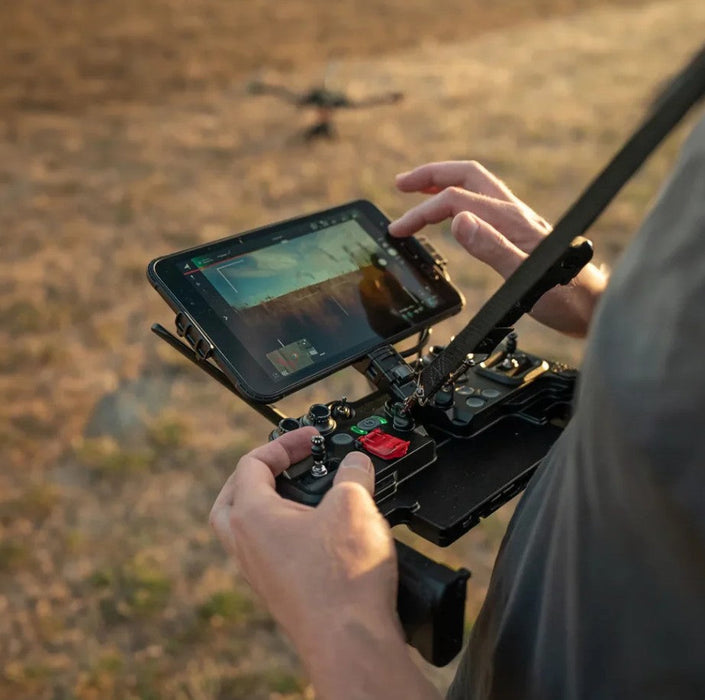

Pilot Pro Controller
Freefly Pilot Pro controller with high-resolution rockers for gimbal precision
Modular design accepts a variety of radio transmitters
Ships with Doodle Labs RF, 2.4 GHz NDAA & DIU Blue radio
Internal battery supports external power input and hot-swapping
Emergency kill-switch included
Discrete physical buttons for all key user actions
Includes pre-installed 8" Samsung Galaxy Tab Active5 tablet
Realtime drone and gimbal speed limit controls
Includes custom padded neck strap
LR1 Payload
Freefly Mapping Gimbal with Sony ILX-LR1 camera (61 MP)
Sigma 24mm f/3.5 mapping lens (p/n 404965)
Full camera and gimbal control via Pilot Pro
Ships in dedicated travel case with space for extra lenses

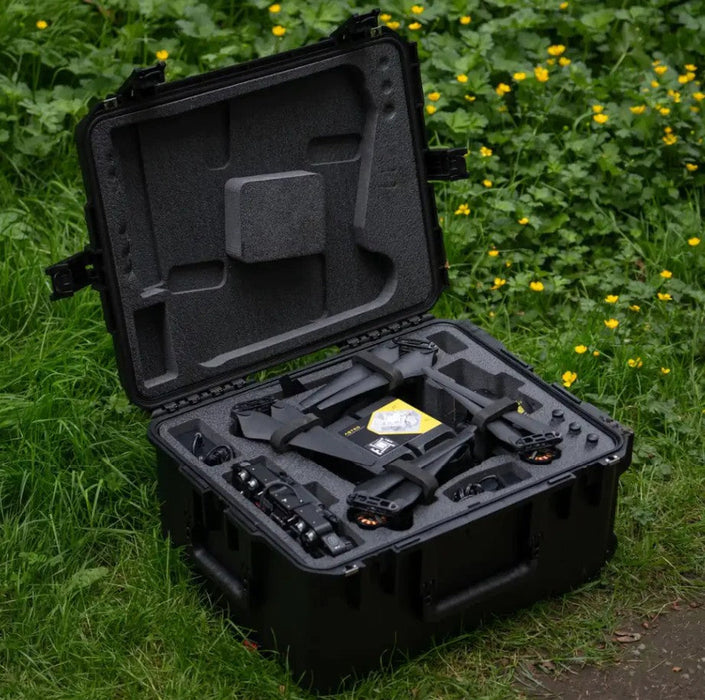

Astro Compact Travel Case
Holds full Astro Max (NDAA/Blue) system for mapping or inspection
Includes Astro with 2 SL8 batteries (legs folded)
Fits Pilot Pro, LR1 Payload, 2 SL8 chargers, props, tools
Custom-cut foam tested for 1-meter drop protection
Submersible and dust-tight (MIL-STD 810G)
Airline checkable SKB Rolling Case (3i-2217-10)
Dimensions: 24.52" × 19.5" × 12.22" / 62.28 × 49.53 × 31.04 cm
Weight (no SL8s): 38.30 lbs / 17.37 kg
Weight (full kit with 2 SL8s): 42.80 lbs / 19.41 kg
SL8-Air Batteries
Two SL8-Air batteries required per flight
Voltage: 21.6 V (6S)
Capacity: 7.3 Ah / 157 Wh
Weight: 2.25 lbs each
Battery chemistry: Lithium-Ion
Auxiliary output: USB-C Power Delivery
SL8 Fast Charger
Charges one SL8-Air battery at a time
Charge time from 0% to 100%: ~90 minutes
Input: 100–240 VAC
Output: 200 Watts
Includes NEMA 1-15 (Type A) North America power cable
Power cable replaceable via IEC320 connector
SL8 Travel Case
Holds 8 SL8 batteries and 2 chargers
Can hold up to 14 SL8 batteries without chargers
Features lockable casters and stowaway handle
Waterproof and dust tight (MIL-STD 810H)
SKB case model: 3i-1914-8B-E
