FrSky Act Series M5213H Servo
by FrSky
SKU 03050643
Sold out
Original price
$26.49
-
Original price
$26.49
Original price
$26.49
$26.49
-
$26.49
Current price
$26.49
Availability:
Out of stock

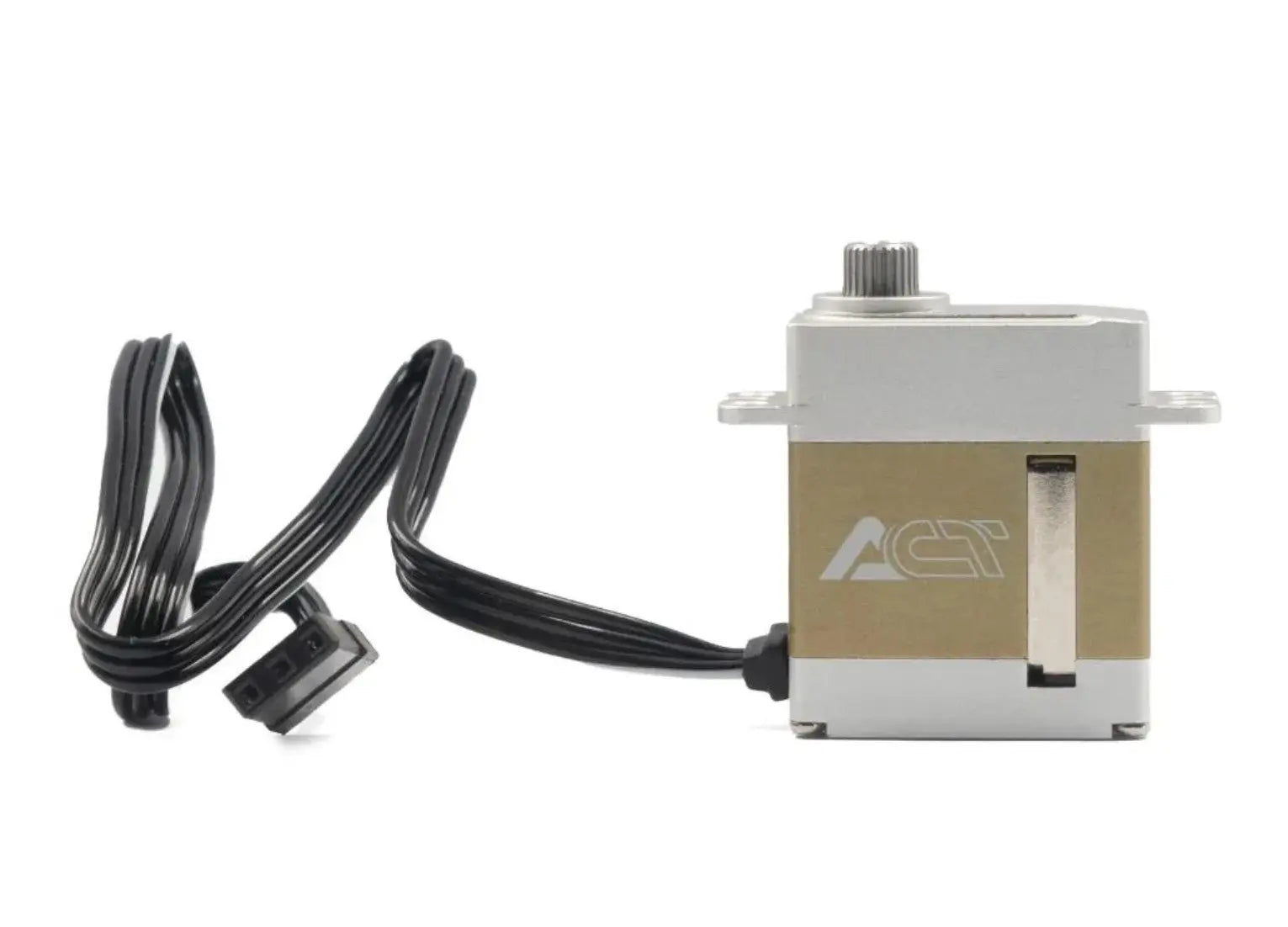

FrSky Act 5200 Series Servos, M5213H
The Act series coreless servos utilize a fully CNC machined aluminum protective case and benefit from metal gears. These high-voltage servos are capable of supporting up to 8.4V and offer both high speed and torque performance.
The Act series servos are available in a range of models to support different Torque and Speeds depending on your needs. These servos are ideally matched to models especially where power, reliability, and precision are required.
Features
- High durability with metal gear and all-aluminum CNC machined protective case
- 8.4V high voltage capable operation with high speed and big torque performance
- Built-in dual precision balls bearing with potentiometer sensor
Specifications:
- Series: Act Coreless 5200 High-Voltage Servos

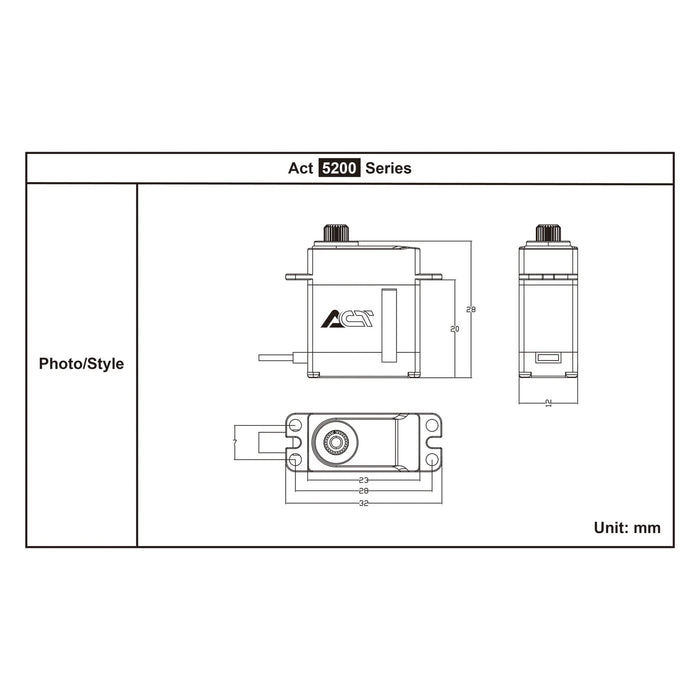

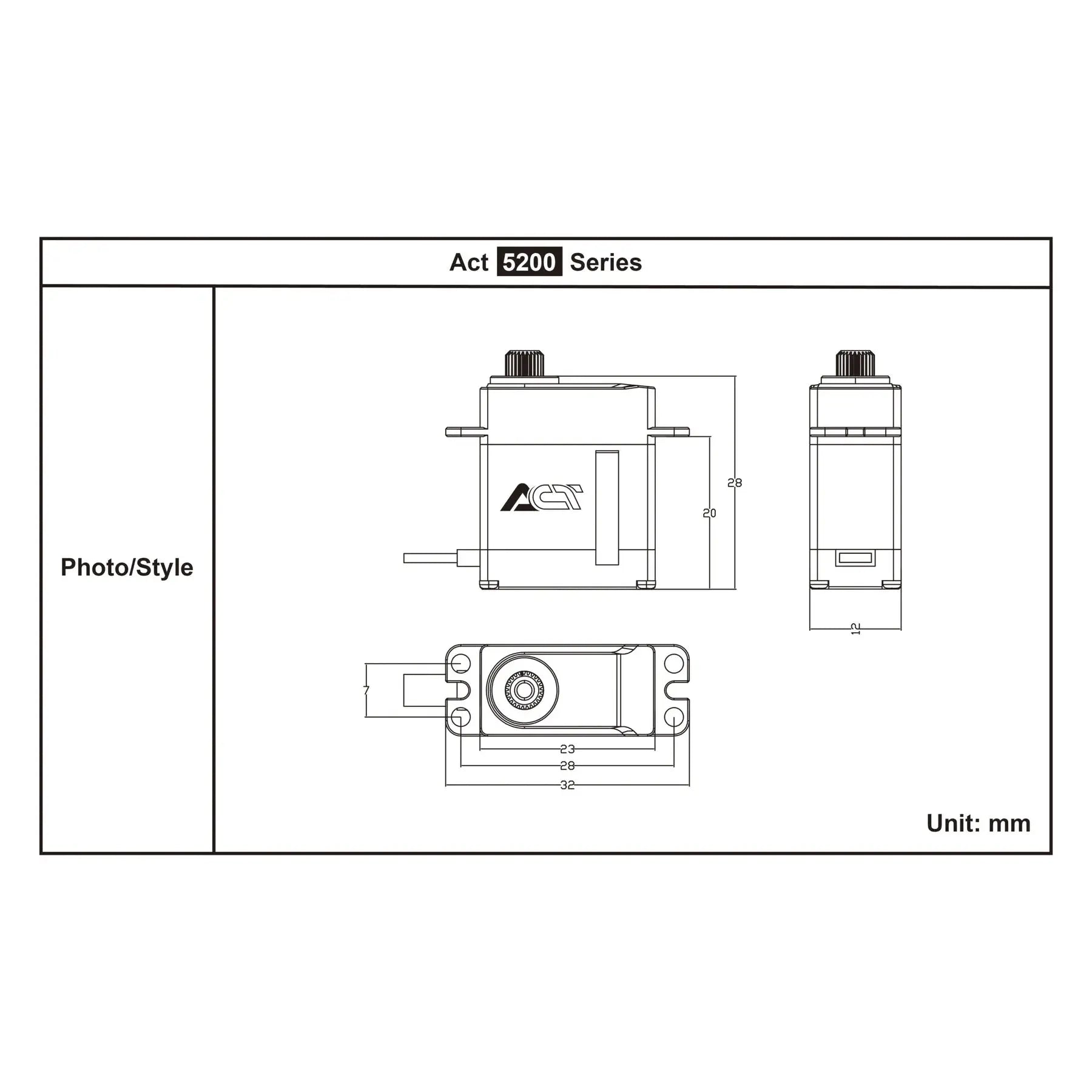

- Dimension (L×W×H): 23 × 12 × 27.5 mm
- Weight: 21 g
- Horn Spline: Φ5 25T
-
Stall Current:
- 1.9 A @ 6.0V
- 2.2 A @ 7.4V
- 2.5 A @ 8.4V
- Operating Voltage Range: 5.0 – 8.4 V
- Reflash Rate: 1520 µs / 333 Hz
- Performance (M5213H):
- Torque / Speed @ 6.0V: 7.4 kgf·cm (103 oz·in), 0.11 sec/60°
- Torque / Speed @ 7.4V: 9.5 kgf·cm (132 oz·in), 0.08 sec/60°
- Torque / Speed @ 8.4V: 10.5 kgf·cm (146 oz·in), 0.07 sec/60°
