Hitec HS-225BB Mighty Mini Servo

Original price $20.99 - Original price $20.99
Original price
$20.99
$20.99 - $20.99
Current price $20.99
Availability:
in stock, ready to be shipped

The analog HS-225BB represents a good value with performance that rivals other larger and more expensive servos. Ideal for applications that call for a small, lightweight, high speed, high torque servo, the HS-225BB high performance mini servo features a top ball bearing and is built with state-of-the-art SMT technology.

Features

  • Full Size Performance in a Mini Package
  • Durable Nylon Gears
  • Top Ball Bearings
  • Perfect for Applications Requiring a Small, Lightweight, High Speed, High Torque Servo

Performance Specifications

Operating Voltage Range (Volts DC)

4.8V ~ 6.0V

Speed (Second @ 60°)

0.14 ~ 0.11

Maximum Torque Range oz. / in.

54 ~ 67

Maximum Torque Range kg. / cm.

3.9 ~ 4.8

Current Draw at Idle

8 mA

No Load Operating Current Draw

300 mA

Stall Current Draw

1,200 mA

Dead Band Width

8 µs

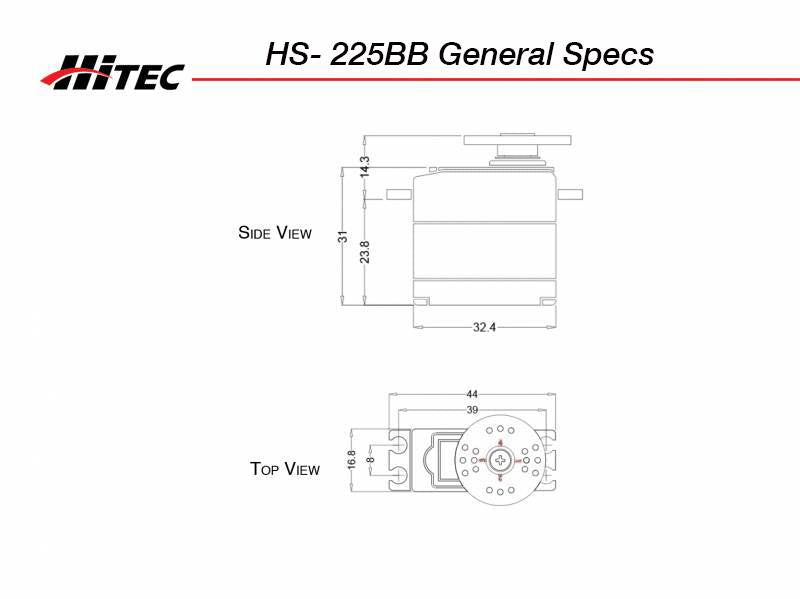

Physical Specifications

Dimensions (Inches)

1.27 x 0.66 x 1.22

Dimensions (Metric)

32.4 x 16.8 x 31.0

Weight (Ounces)

0.95

Weight (Gram)

27.0

Circuit Type

HT7003 Analog SMT

Motor Type

3 Pole Metal Brush Ferrite

Gear Material

Nylon

Bearing Type

Top Ball Bearing

Output Shaft (type / Ømm)

Standard 24

Case Material

Plastic

Dust / Water Resistance

N / A

Connector Gauge (AWG) / Strand Count

25 / 40

Radio Control Applications

Parkflyer

N / A

Sport Plane

50 - 64 oz.

Sailplane

3 Meter

3D Performance

50 - 64 oz.

Scale

N / A

Electric Helicopter

500m

Gas Helicopter

50 - 59 Class

On Road

1/12th

Monster Truck

N / A

Buggies

1/12th

Truggies

N / A

Short Course / Truck

N / A

Crawlers

1/18th

Sail Boat

< 1 Meter

Power Boat

1/16th
