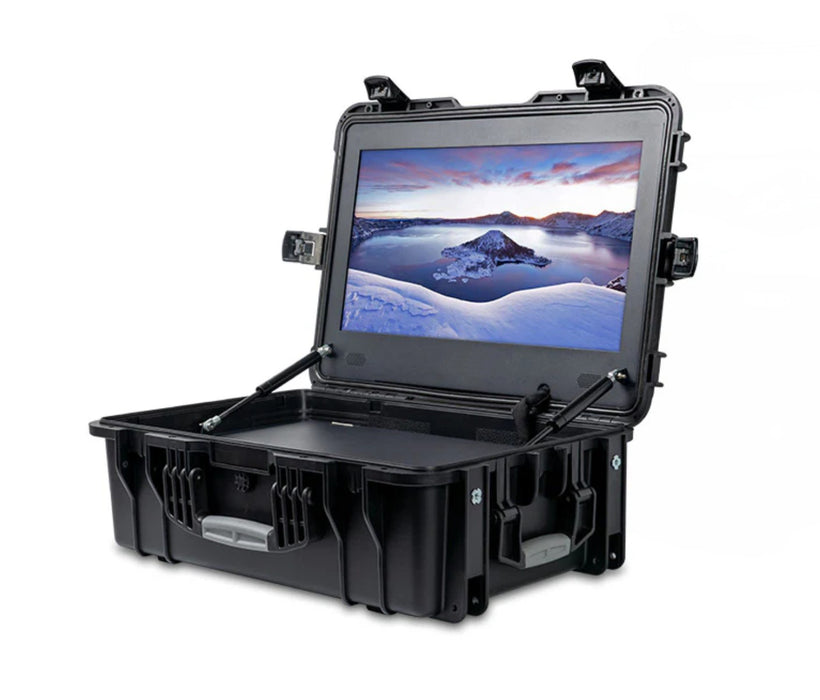

The Altitude Hobbies 21.5" drone command monitor case is a rugged, portable command-level monitoring solution built for drone operations, field production, and outdoor shoots. Featuring a 21.5-inch Full HD (1920×1080) IPS display with up to 1000 cd/m² high brightness, it delivers clear, daylight-viewable imaging even in bright ambient conditions.

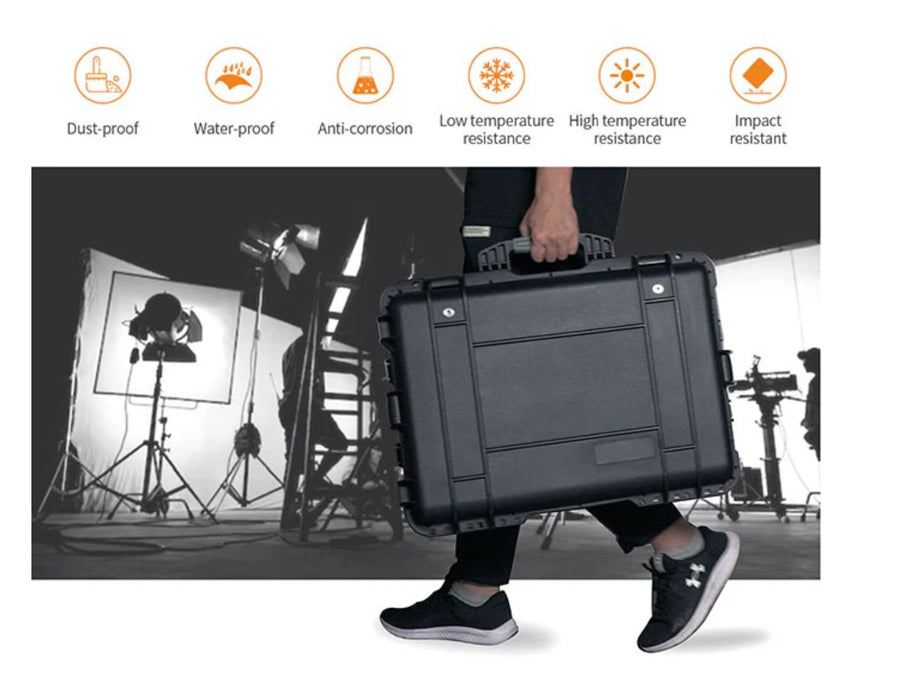

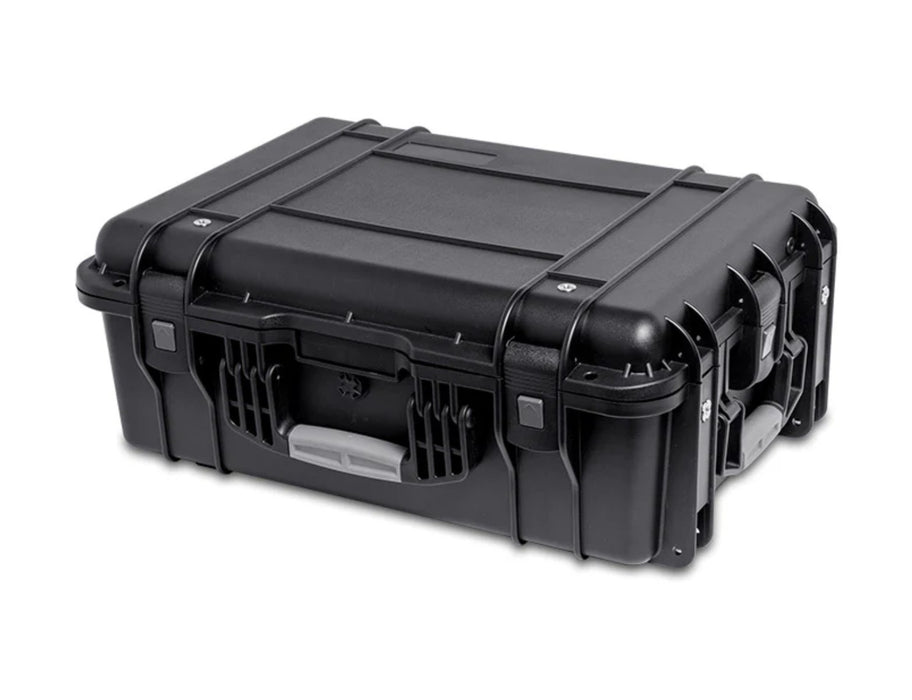

Housed in a weatherproof carry case with handle, it is designed for secure transport and deployment across locations. Its versatile I/O suite includes 3G-SDI and HDMI inputs/outputs that support up to 4K@30 Hz, letting you connect drones, cameras, and other video sources with ease.

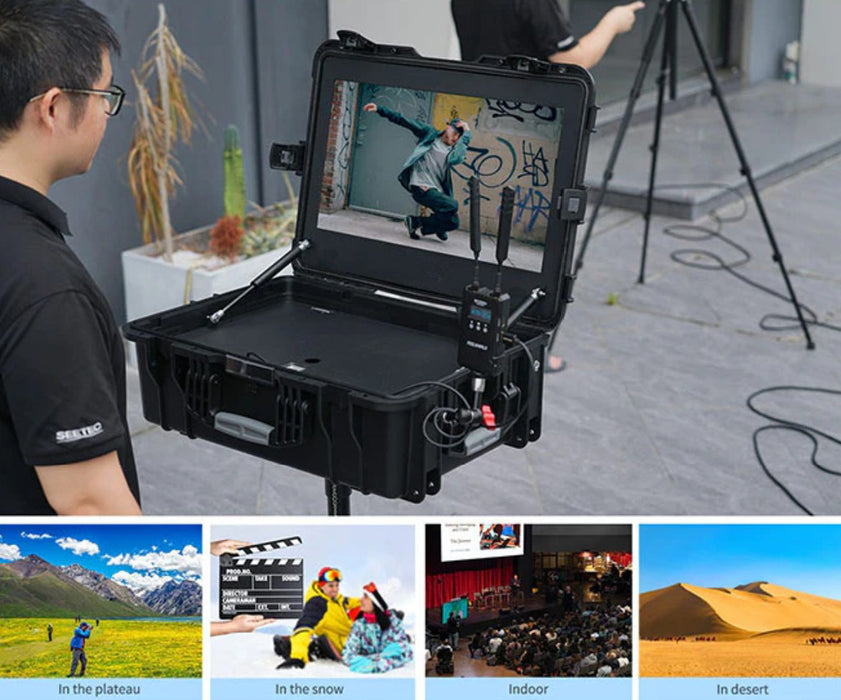

This case is perfect for tactical public safety drone operations where operators need a ruggedized screen to extend the drone feed from the small controller onto a bigger viewing surface.
Built-in professional monitoring tools such as waveform, vectorscope, RGB histogram, focus assist, false color, and customizable 3D-LUTs help operators evaluate exposure, color, and focus quickly in the field.
The rugged case also provides multiple mounting points and a built-in tripod bracket, enabling setup flexibility for command stations or on-site monitoring. With stereo audio output and support for V-mount power options, the WPC215 is a complete, field-ready solution for drone teams, broadcasters, and filmmakers who demand portable, professional-grade monitoring.

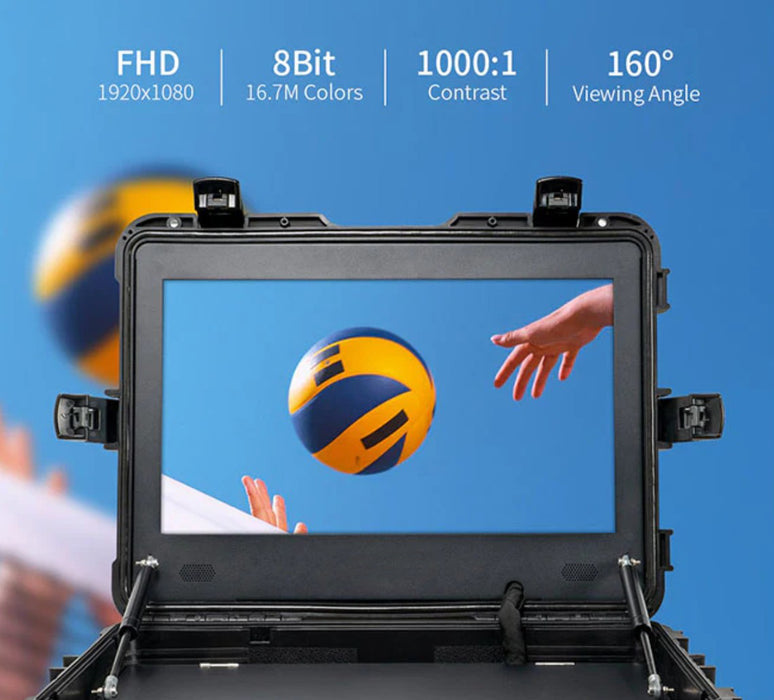

Full HD IPS Panel
With extremely high resolution IPS panel, it provides excellent details, covers 72% NTSC color space, accurately reflecting the original colors.

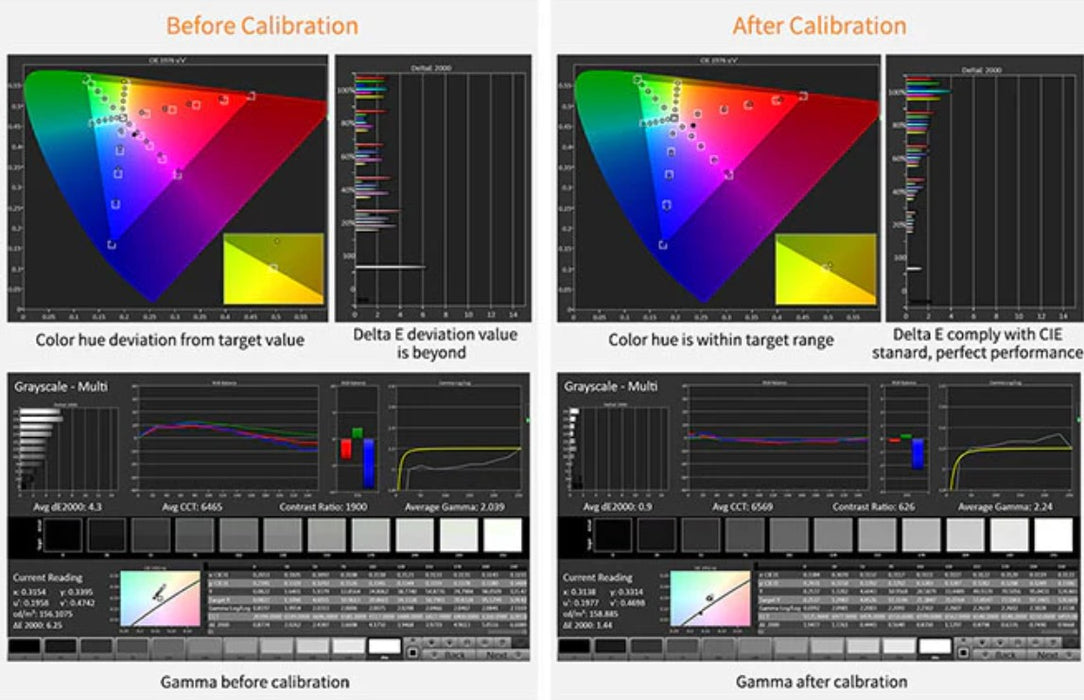

Professional Calman Software Calibration, True Color Presentation
Each monitor is calibrated by Calman software at the factory to ensure color accuracy and good reproduction.

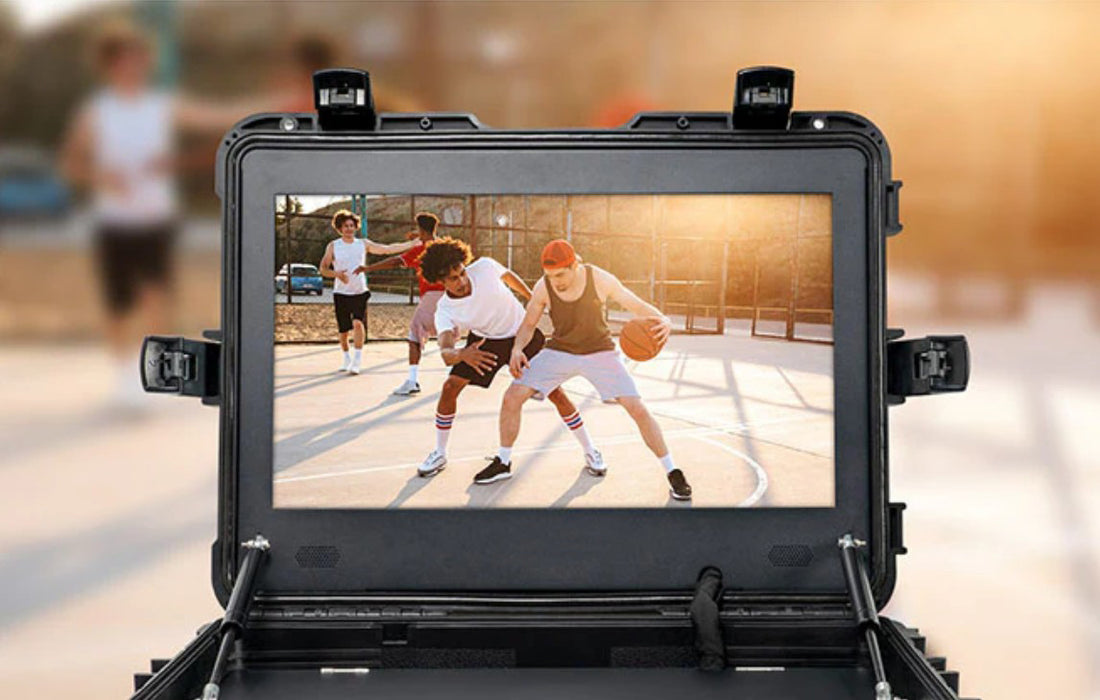

1000nits, Daylight Viewable

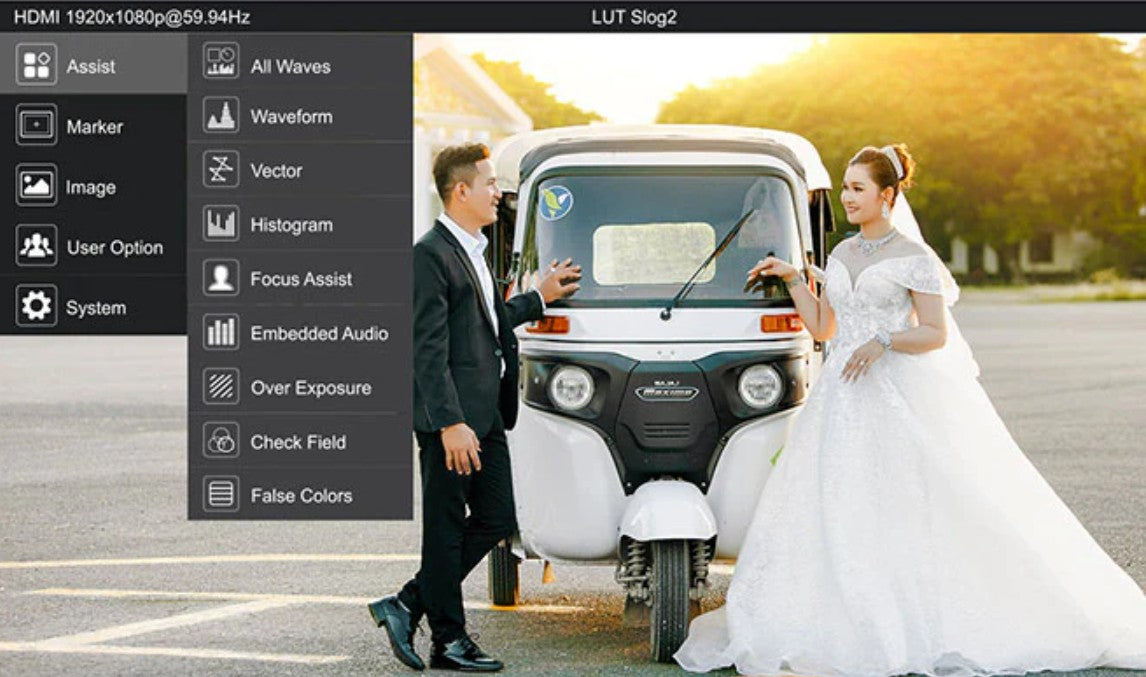

New UI Menu Interface
New UI menu with iconized options. It is more convenient and faster to operate.
Load Custom 3D LUTs, Preview Filming, Supports upload 32 custom LUTs
By loading different 3D-LUT tables, it can quickly recombine color tone to form different color styles. Built-in 4 DE-log LUT, you also can load the custom .cube file via USB flash driver (up to load 32).
Accurate waveform monitoring
Built-in waveform monitoring, you can choose from waveform (RGB Parade, YUV Parade, Y Parade), vector scope, histogram, audio phase and level displays, and get broadcast accurate waveform monitoring that shows everything you need to know technically about your video and audio signals. The functions can be opened separately, and also support one key to open all scope mode. This monitor case becomes the ideal choice for live production monitoring, so you no longer need to use a separate expensive scopes!
Flexible and Intuitive Button Operation
When you are busy at the shooting scene, you need to be able to easily control the equipment. This monitor case is equipped with multi operation buttons, can switch between one-button sources, custom shortcuts, and quickly adjust brightness, contrast, volume ,etc.to make shooting easier.

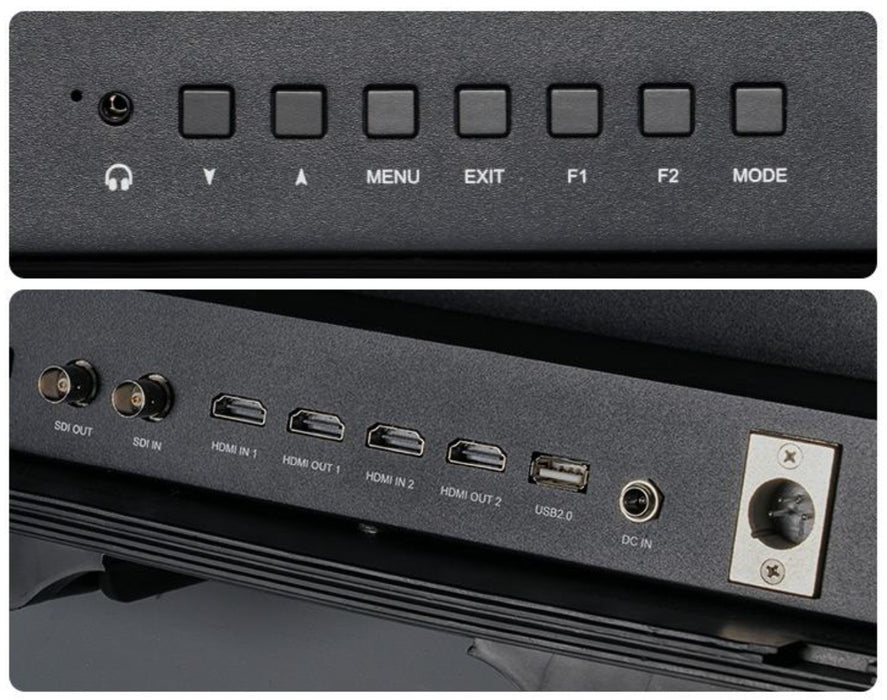

Dual HDMI + SDI Input and Output
The monitor equipped with SDI and 4K HDMI input and output, compatible with film cameras, DSLR cameras, mirrorless cameras. And loop-out to other device via output port for multi-person simultaneous monitoring. For audio, it provides two speakers and one 3.5mm earphone jack.

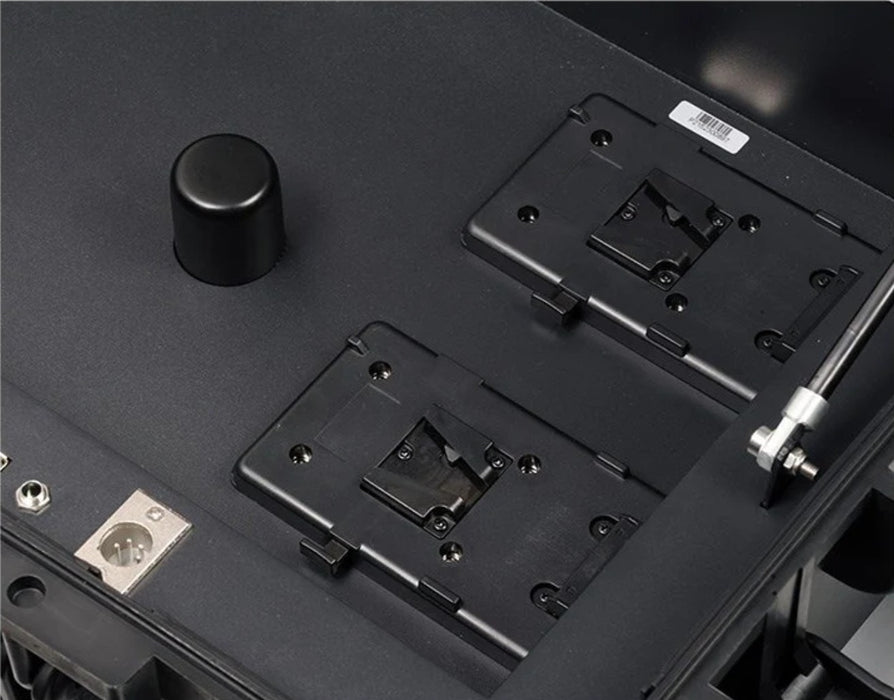

Multiple Power Supply
The monitor offers 12V DC power interface, XLR connector (can use 4A power adapter) and 2 V-mount battery plates for options. Battery not included.
Reserved Storage Space
There is a portion of space on the left side of case inside for storing accessories or other equipment. Metal cover for protection.

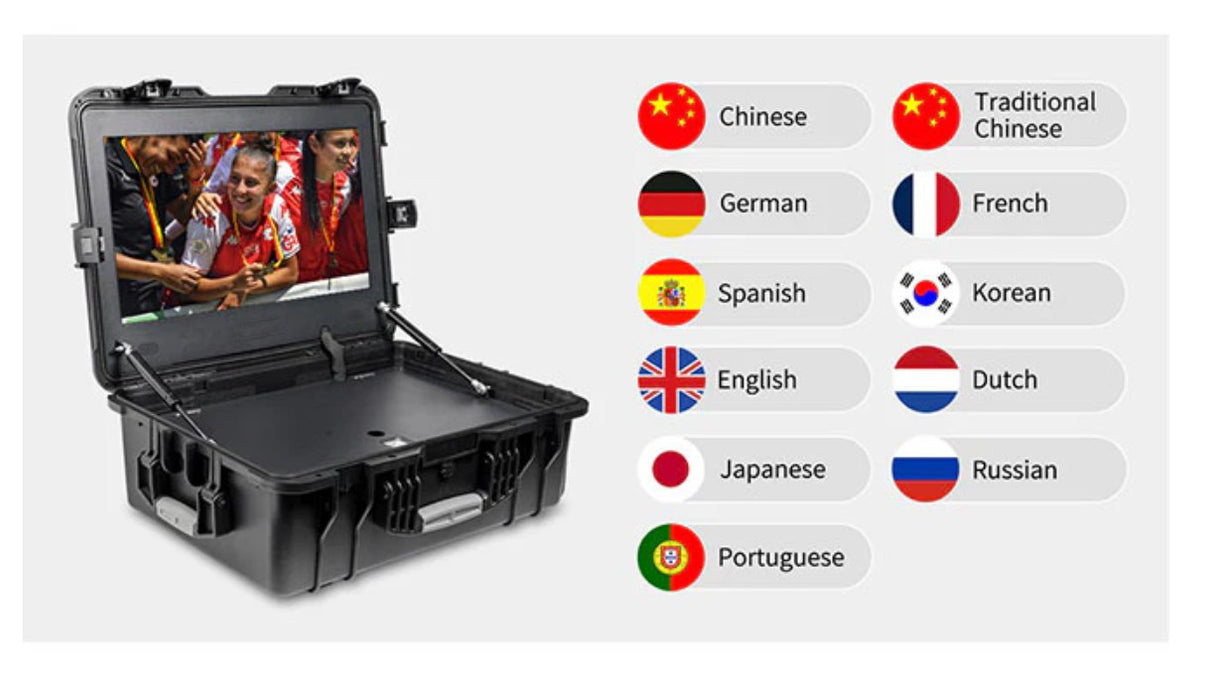

Multi Languages Support, Satisfy Different Needs
Built-in up to 11 languages.

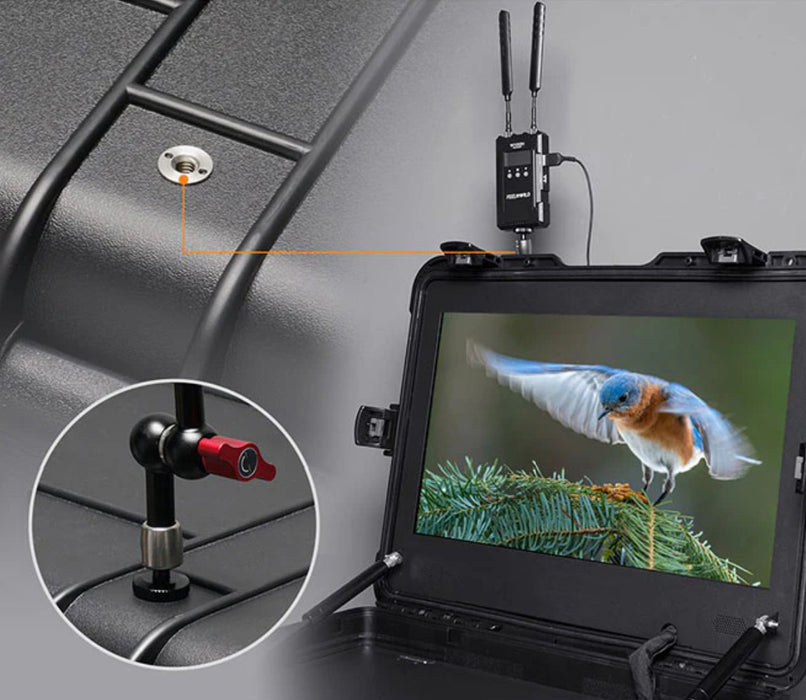

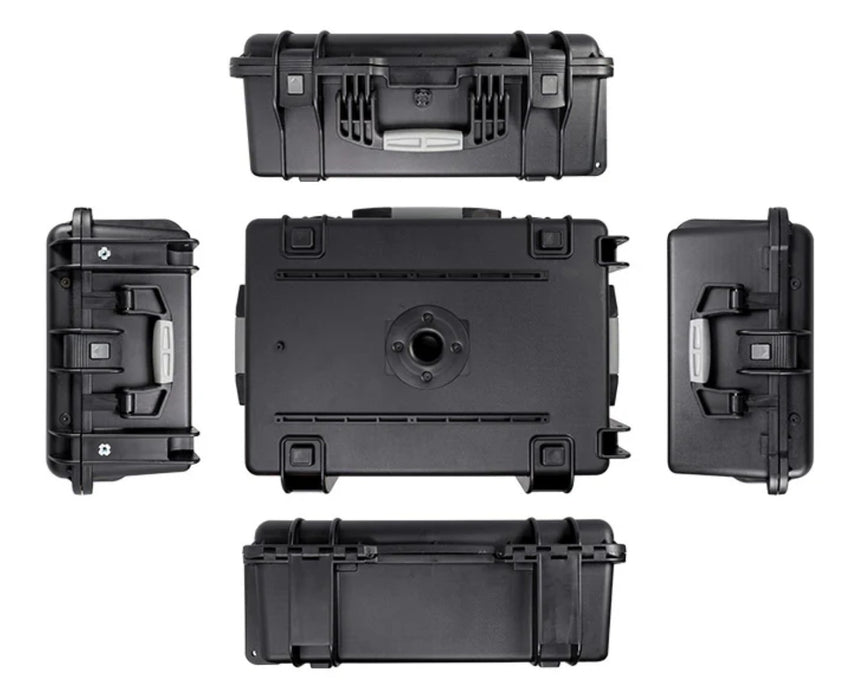

Multiple Mounting Points

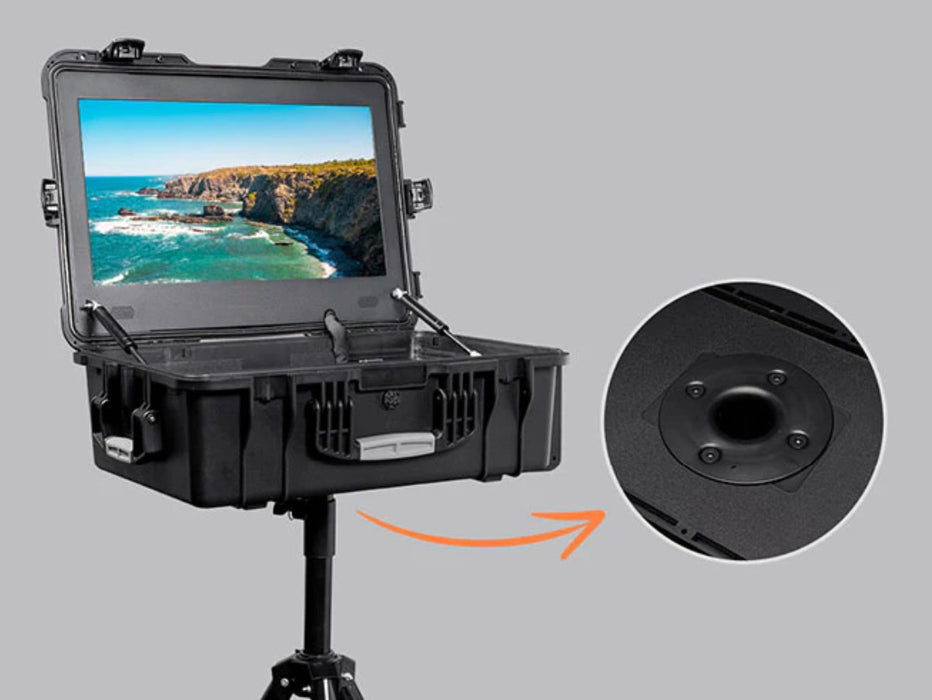

There are two 1/4 threads both on the right side and top of case, which can be installed with wireless video transmission or other equipment. In addition, the bottom of case has a built-in metal bracket for easy attachment to a tripod or mount.
Key Features:
* 21.5-inch 1920x1080 full HD large screen
* Portable waterproof case
* 1000nits high brightness, ideal choice outdoor shooting
* Flexible and intuitive button operation, easy to use
* Custom 3D-LUT, preview film look
* With Waveform, Vectorscope, RGB Histogram, Focus Assist, Monochrome etc. functions
* 3G-SDI, HDMI support up to 4K@30Hz
* With multiple 1/4" screw thread, supports mounting wireless transmission equipment and other devices.
* The bottom of case has built-in metal bracket for mounting to tripod.
* Stereo Earphone output

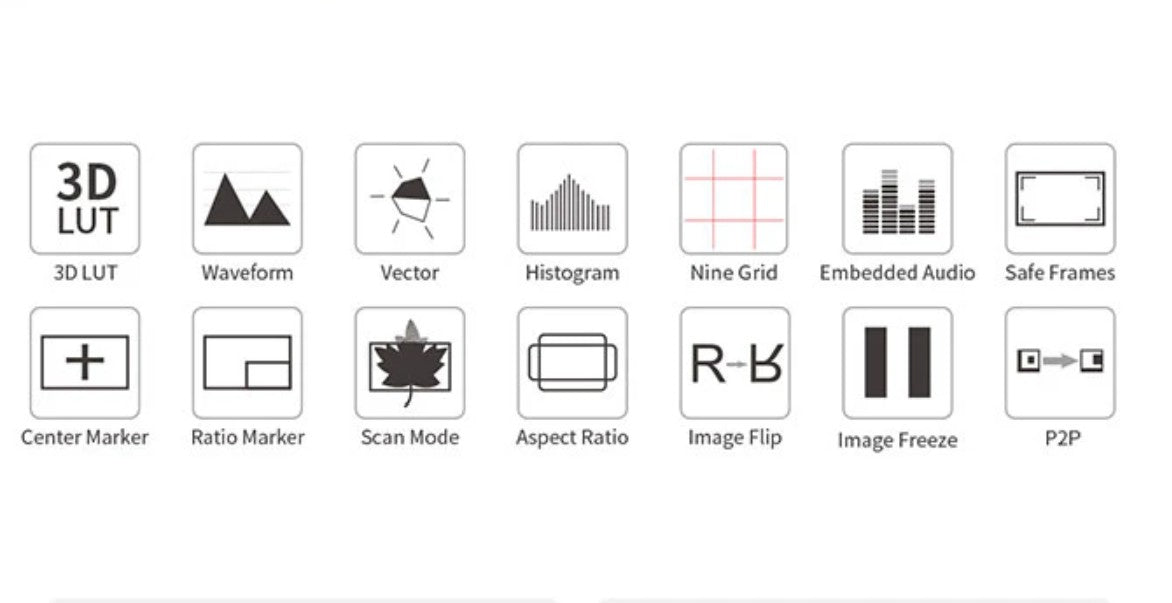

Functions:
* All waves (waveform, vector, histogram and embedded audio)
* Waveform (RGB、YUV、Y)
* Vector
* Histogram(RGB1、RGB2、Y)

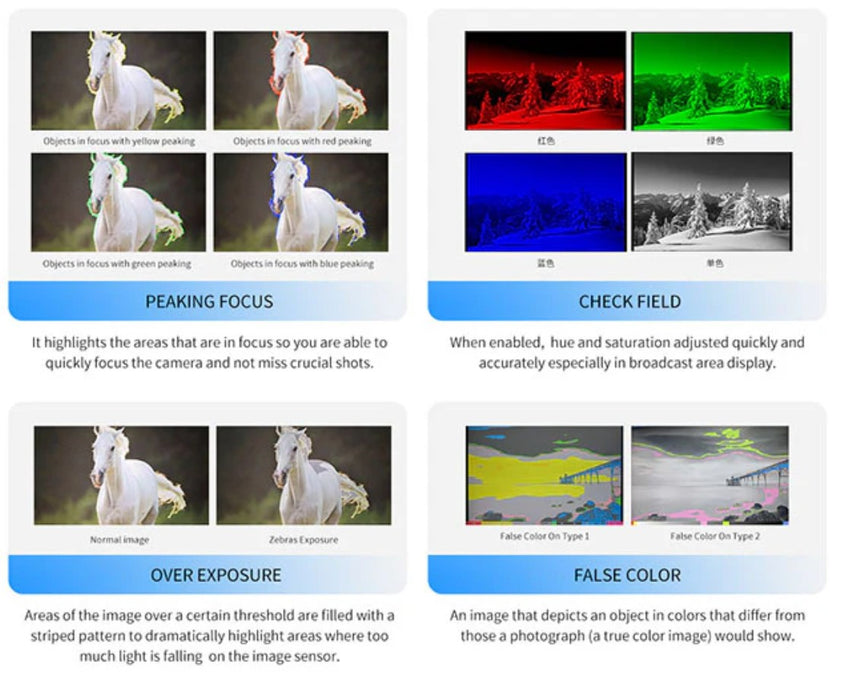

*Focus Assist ( Red, Green, Blue three colors optional highlight over parts of the image in focus)
*Embedded Audio
*Over Exposure (10~100)
* Check Field (Red, Green, Blue, Gray)
*False Color
*Nine Grid
*Safety Marker ( 80%, 85%, 90%, 93%, 96%, 2.35:1)
*Center Marker
*Ratio Marker(4:3、13:9、14:9、15:9、16:9、1.85:1、2.35:1)
*Scan Mode (Under Scan, Over Scan)
*Aspect Ratio (Auto, 16:9, 16:10, 4:3, 5:4, 1.85:1, 2.35:1, Full Screen)

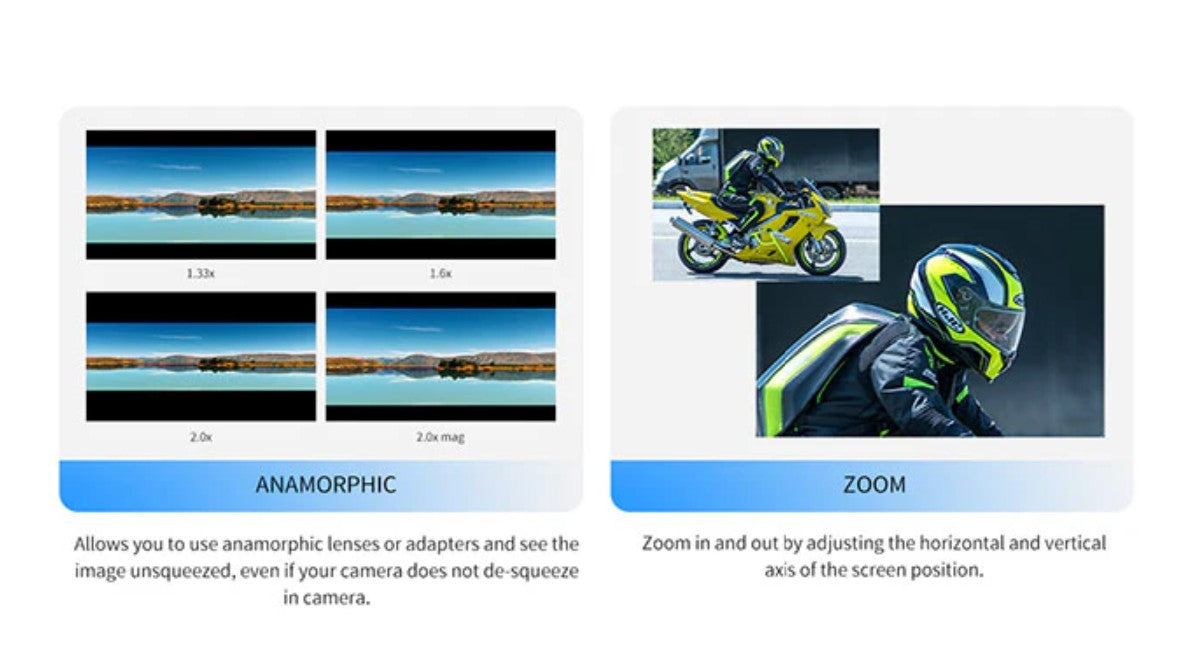

*Anamorphic (1.33X, 1.6X, 2.0X, 2.0X MAG, User)
*Image Flip (H Flip, V Flip, H_V Flip)
*Zoom Mode(2X、4X、9X、16X、User)
*Freeze
*Pixel to Pixel
*3D-LUT
*Colortemp (5600K, 6500K, 9300K, User)
