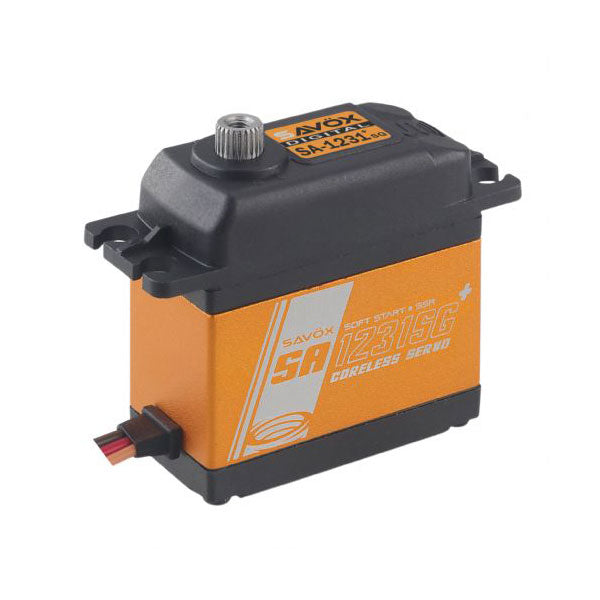

Savox SA1231SGP Coreless Digital Servo w/ Soft Start

by Savox
Original price $93.99 - Original price $93.99
Original price
$93.99
$93.99 - $93.99
Current price $93.99
Availability:
in stock, ready to be shipped

Coreless Digital Servo 0.14sec / 444.4oz @ 6V

The Savox SA-1231SG+ High Torque Steel-Gear digital servo is the servo that is ideal for those requiring extra torque, but not using high voltage as a power source.

"Plus" series servos feature Soft Start and Sanwa SSR compatibility.

Features:

  • Extremely strong unique steel gears ensure long-life and durability.
  • Minimized backlash designed for aircraft use, but great for Monster Truck and crawling use.
  • Aluminum middle case to help with cooler operating temperatures.
  • Slightly taller case design.
  • Specifications:

  • Torque @ 4.8V - 28.0kg / 388.8oz-in
  • Torque @ 6V - 32.0kg / 444.4oz-in
  • Speed @ 4.8V - 0.18 sec / 60 deg
  • Speed @ 6V - 0.14 sec / 60 deg

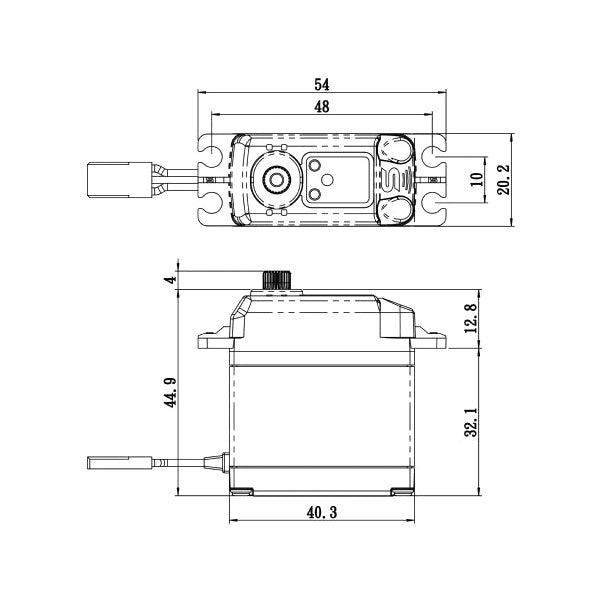

  • Dimensions L x W x H (mm): 40.3 x 20.2 x 44.9
  • Weight: 79g
  • Technical specs:
    • Operating Temperature: 14° - 122°F (-10° - 50°C)
    • Running Current (no load): 180mA @4.8V, 250mA @6.0V
    • Stall Current (at locked): 4200mA @4.8V, 5300mA @6.0V
    • Wire Length: 200 +/- 5mm
    • Output Gear Spline: 25 Tooth
    • Bearings: 2BB
    • Operating Travel: 100° (1000 → 2000 µ second)
    • Neutral Position: 1500 µ second
    • Pulse Width Range: 800 → 2200 µ second
    • Maximum Travel: Appx 130° (900 → 2100 µ second)
    • Refresh Rate: 333 Hz
    • Motor Type: Coreless
