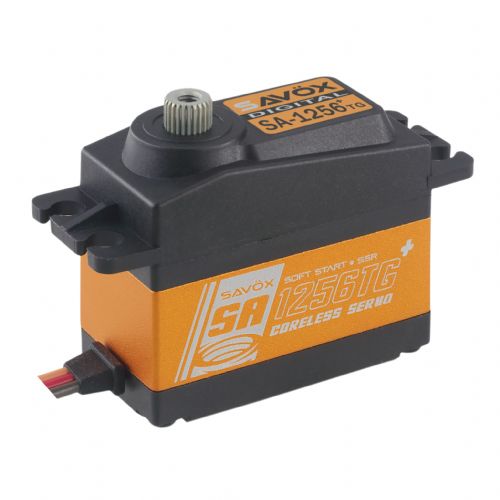

Savox SA1256TGP Coreless Standard Size Digital Servo w/ Soft Start

by Savox
Original price $89.99 - Original price $89.99
Original price
$89.99
$89.99 - $89.99
Current price $89.99
Availability:
in stock, ready to be shipped
Standard Size Coreless Digital Servo with Soft Start, 0.15sec / 277oz @ 6V

The SA-1256TG Plus servo is perfect for those who are looking for a big upgrade for RTR servos. SA series servos feature minimized backlash, making them ideal for use on flying surfaces of RC planes.

"Plus" series servos feature Soft Start and Sanwa SSR compatibility.

Features:

  • Titanium gears ensure long life, durability, and lighter weight.
  • Minimized backlash for precision aerobatic airplane use.
  • Aluminum middle case to help with cooler operating temperatures.
  • Specifications:

  • Torque @ 4.8v - 16.0kg/222.2oz-in
  • Torque @ 6v - 20.0kg/277.7oz-in
  • Speed @ 4.8v - 0.18 sec/60 deg
  • Speed @ 6v - 0.15 sec/60 deg

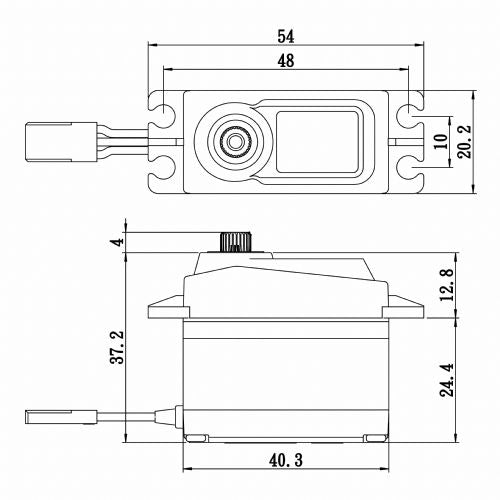

  • Dimensions L x W x H (mm): 40.3 x 20.2 x 37.2
  • Weight: 64g
  • Technical specs:
    • Operating Temperature: 14° - 122°F (-10° - 50°C)
    • Running Current (no load): 100mA @4.8V, 120mA @6.0V
    • Stall Current (at locked): 4000mA @4.8V, 5000mA @6.0V
    • Idle Current: 5mA @4.8V, 5mA @6.0V
    • Wire Length: 200 +/- 5mm
    • Output Gear Spline: 25 Tooth
    • Bearings: 2BB
    • Operating Travel: 100° (1000 → 2000 µ second)
    • Neutral Position: 1500 µ second
    • Pulse Width Range: 800 → 2200 µ second
    • Maximum Travel: Appx 130° (900 → 2100 µ second)
    • Refresh Rate: 333 Hz
    • Motor Type: Coreless
