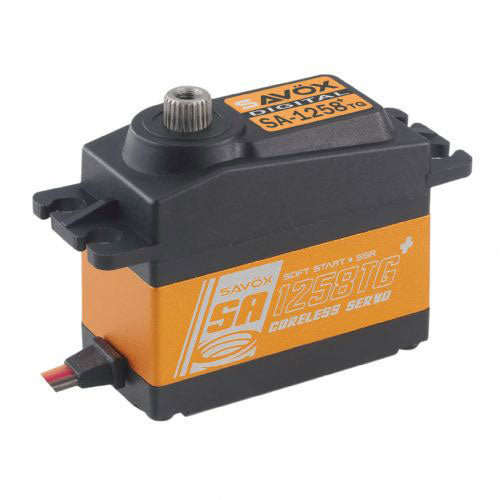

Savox SA1258TGP Coreless Standard Size Digital Servo w/ Soft Start

by Savox
Original price $89.99 - Original price $89.99
Original price
$89.99
$89.99 - $89.99
Current price $89.99
Availability:
in stock, ready to be shipped
Standard Size Coreless Digital Servo with Soft Start, 0.08sec / 166oz @ 6V

The SA-1258TG Plus servo is a high torque servo and is perfect for those who are looking for a minimized backlash to use on flying surfaces of RC planes.

"Plus" models feature Soft Start and Sanwa SSR Compatibility

Features:

  • Extremely strong titanium gears ensure long-life, durability, and light weight.
  • Aluminum middle case allows for cooler operating temperatures.
  • Minimized backlash for precision aerobatic airplane use.
  • Soft Start and Sanwa SSR Compatibility
  • Specifications:

  • Torque @ 4.8v - 9.6kg-cm/133.3oz-in
  • Torque @ 6v - 12.0kg-cm/166.6oz-in
  • Speed @ 4.8v - 0.10 sec/60 deg
  • Speed @ 6v - 0.08 sec/60 deg

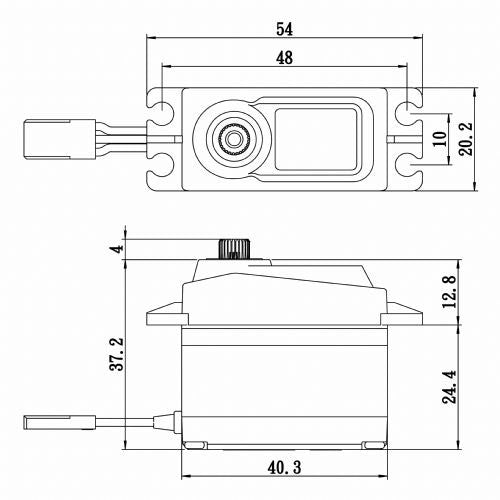

  • Dimensions L x W x H (mm): 40.8 x 20.2 x 37.2
  • Weight: 64g
  • Technical specs:
    • Operating Temperature: 14° - 122°F (-10° - 50°C)
    • Running Current (no load): 100mA @4.8V, 120mA @6.0V
    • Stall Current (at locked): 4000mA @4.8V, 5000mA @6.0V
    • Idle Current: 5mA @4.8V, 5mA @6.0V
    • Wire Length: 250 +/- 5mm
    • Output Spline: 25 Tooth
    • Bearings: 2BB
    • Operating Travel: 100° (1000 → 2000 µ second)
    • Neutral Position: 1500 µ second
    • Pulse Width Range: 800 → 2200 µ second
    • Maximum Travel: Appx 130° (900 → 2100 µ second)
    • Refresh Rate: 333 Hz
    • Motor Type: Coreless
