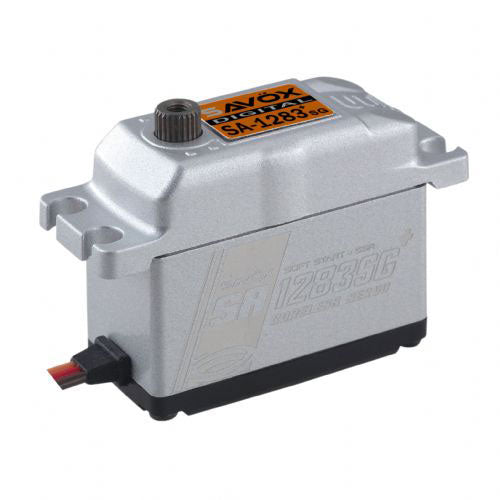

Savox SA1283SGP Coreless Metal Case Digital Servo w/ Soft Start

by Savox
Original price $112.99 - Original price $112.99
Original price
$112.99
$112.99 - $112.99
Current price $112.99
Availability:
in stock, ready to be shipped
Coreless Metal Case Digital Servo with Soft Start, 0.13sec / 416oz @ 6V

The SA1283SG combines leading-edge technology with high 12-bit (4096) resolution for one amazing servo! The strong unique steel gears and all aluminum case ensure long-life and durability.

"Plus" models feature Soft Start and Sanwa SSR Compatibility

Features:

  • Combines leading edge technology with super high 12 bit (4096) resolution.
  • Extremely strong unique steel gears ensure long-life and durability.
  • Full aluminum case design provides for durability.
  • Ideal for steering on rock crawlers, monster trucks, and 1/8th scale vehicles.
  • Soft Start and Sanwa SSR Compatibility
  • Specifications:

  • Torque @ 4.8v - 25.0kg/347.2oz-in
  • Torque @ 6v - 30.0kg/416.67oz-in
  • Speed @ 4.8v - 0.16 sec/60 deg
  • Speed @ 6v - 0.13 sec/60 deg

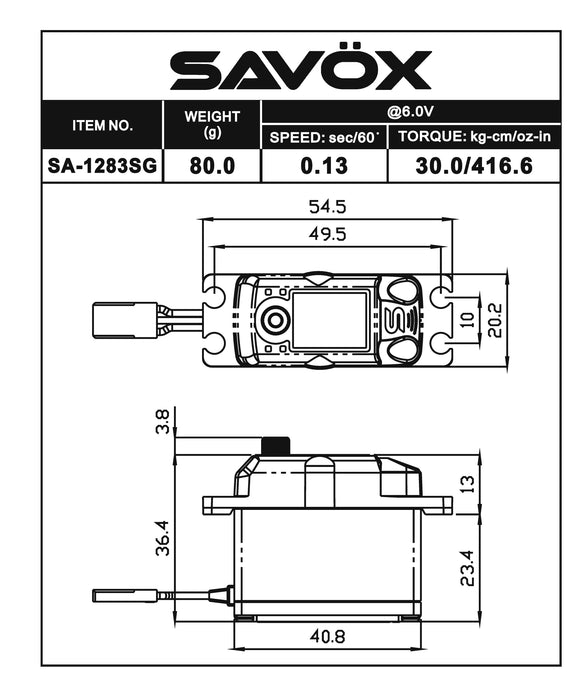

  • Dimensions L x W x H (mm): 40.3 x 20.2 x 36.4
  • Technical specs:
    • Operating Temperature: 14° - 122°F (-10° - 50°C)
    • Running Current (no load): 100mA @4.8V, 120mA @6.0V
    • Stall Current (at locked): 4800mA @4.8V, 6000mA @6.0V
    • Idle Current: 5mA @4.8V, 5mA @6.0V
    • Wire Length: 300 +/- 5mm
    • Output Gear Spline: 25 Tooth
    • Bearings: 2BB
    • Operating Travel: 90° (1000 → 2000 µ second)
    • Neutral Position: 1500 µ second
    • Pulse Width Range: 950 → 2050 µ second
    • Maximum Travel: Appx 130° (900 → 2100 µ second)
    • Refresh Rate: 333 Hz
    • Motor Type: Coreless
