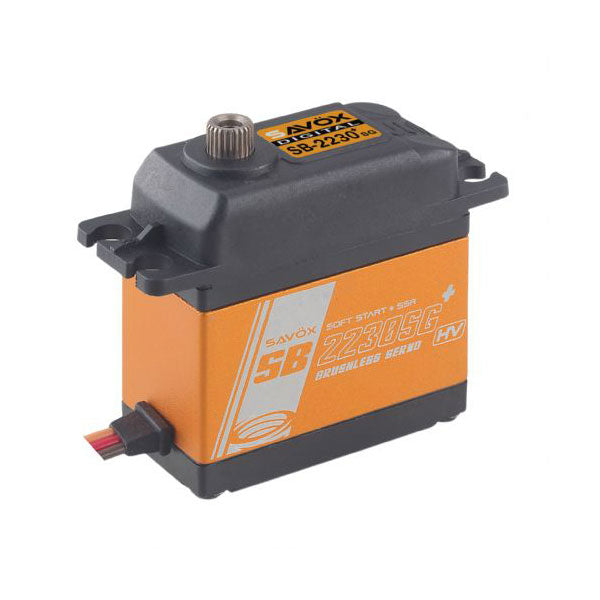

Savox SB2230SGP High Voltage Brushless Digital Servo (Tall) w/ Soft Start

by Savox
Original price $133.99 - Original price $133.99
Original price
$133.99
$133.99 - $133.99
Current price $133.99
Availability:
in stock, ready to be shipped
High Voltage Brushless Digital Servo (Tall) with Soft Start, 0.11sec / 763.8oz @ 8.4V

The Savox SB-2230SG Plus Monster Torque Brushless servo features a slightly taller case design, and contains unique steel gears to accommodate the massive output torque.

"Plus" series servos feature Soft Start and Sanwa SSR compatibility.

Features:

  • Ideal for giant scale aircraft, monster truck, and 1/8 scale off road.
  • Brushless motor provides longer life and cooler operating temps.
  • Extremely strong unique steel gears ensure long-life and durability.
  • Specifications:

  • Torque/Speed @ 6v - 36.0kg/499.9oz-in, 0.16 sec/60 deg
  • Torque/Speed @ 7.4v - 42.0kg/583.3oz-in, 0.13 sec/60 deg
  • Torque/Speed @ 8.4v - 55.0kg/763.8oz-in, 0.11 sec/60 deg

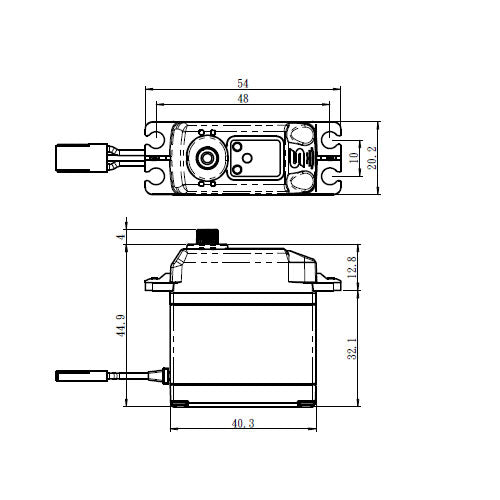

  • Dimensions L x W x H (mm): 40.3 x 20.2 x 44.9
  • Weight: 84g

  • Technical specs:
    • Operating Temperature: 14° - 122°F (-10° - 50°C)
    • Running Current (no load): 180mA @6.0V, 220mA @7.4V
    • Stall Current (at locked): 7500mA @6.0V, 9200mA @7.4V
    • Idle Current: 5mA @6.0V, 5mA @7.4V
    • Wire Length: 200 +/- 5mm
    • Output Gear Spline: 25 Tooth
    • Bearings: 2BB
    • Operating Travel: 100° (1000 → 2000 µ second)
    • Neutral Position: 1500 µ second
    • Pulse Width Range: 800 → 2200 µ second
    • Maximum Travel: Appx 130° (900 → 2100 µ second)
    • Refresh Rate: 333 Hz
    • Motor Type: Brushless
