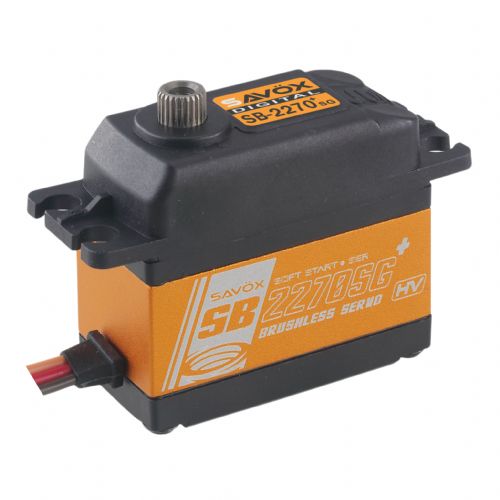

Savox SB2270SGP High Voltage Brushless Digital Servo w/Soft Start

by Savox
Original price $121.99 - Original price $121.99
Original price
$121.99
$121.99 - $121.99
Current price $121.99
Availability:
in stock, ready to be shipped
High Voltage Brushless Digital Servo with Soft Start, 0.11sec / 624.9oz @ 8.4V

The Savox SB-2270SG Plus Monster Torque Servo features a brushless motor and steel gears to ensure long lasting performance.

"Plus" series servos feature Soft Start and Sanwa SSR compatibility.

Features:

  • Extremely strong unique steel gears ensure long-life and durability.
  • Brushless motor for smooth operation and efficiency.
  • Ideal for rock crawlers, monster trucks, and control surfaces for giant scale aircraft.
  • Specifications:

  • Torque/Speed @ 6v - 25.0kg/347.2oz-in, 0.15 sec/60 deg
  • Torque/Speed @ 7.4v - 40.0kg/555.5oz-in, 0.12 sec/60 deg
  • Torque @ 8.4v - 45.0kg/624.9oz-in, 0.11 sec/60 deg

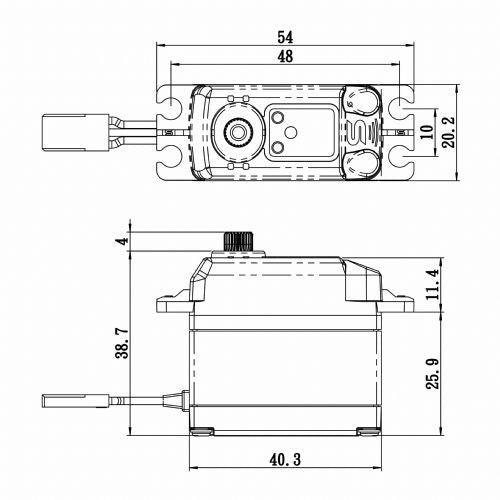

  • Dimensions L x W x H (mm): 40.3 x 20.2 x 38.7
  • Weight: 74g

  • Technical Specs:

    • Operating Temperature: 14° - 122°F (-10° - 50°C)
    • Running Current (no load): 180mA @6.0V, 220mA @7.4V
    • Stall Current (at locked): 6000mA @6.0V, 7400mA @7.4V
    • Idle Current: 5mA @6.0V, 5mA @7.4V
    • Wire Length: 300 +/- 5mm
    • Output Gear Spline: 25 Tooth
    • Bearings: 2BB
    • Operating Travel: 100° (1000 → 2000 µ second)
    • Neutral Position: 1500 µ second
    • Pulse Width Range: 800 → 2200 µ second
    • Maximum Travel: Appx 130° (900 → 2100 µ second)
    • Refresh Rate: 333 Hz
    • Motor Type: Brushless
