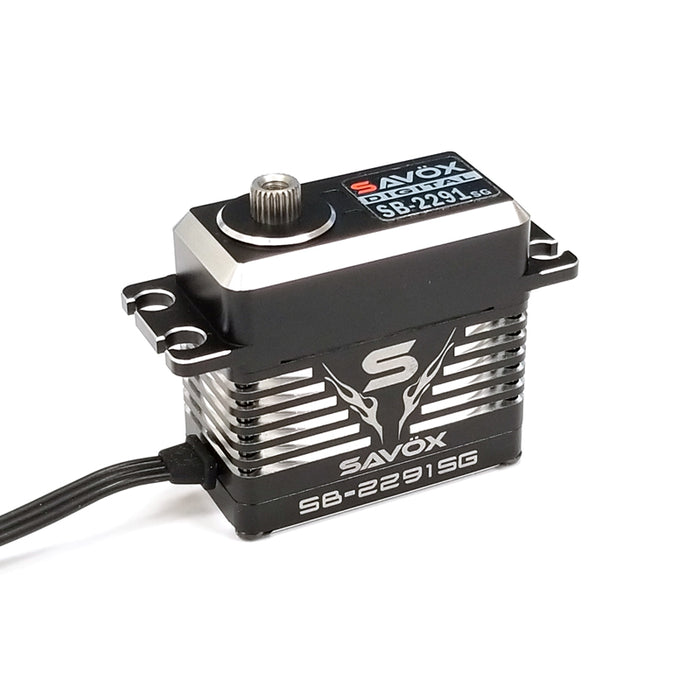

Savox SB2291SG Monster High Speed Brushless Servo, Black Edition

by Savox
Original price $148.99 - Original price $148.99
Original price
$148.99
$148.99 - $148.99
Current price $148.99
Availability:
in stock, ready to be shipped
Monster High Speed Brushless Servo, Black Edition, 0.05sec / 250oz @ 7.4V

The newest member of the Savox Monster Series family delivers an impressively quick 0.05 second transit time while producing above-average torque for specific applications where response time is the primary concern. Models like 1/8 on-road cars, 1/10 nitro touring and even 1/8 EP and GP buggies can improve performance with a more responsive servo-and the SB2291SG fills the need perfectly. Features Savox' patented brushless servo motor technology that provides up to 35% more power than motors in competing brands, while smoothness and reliability are optimized through the use of three precision ball bearings.

Features:

  • Full Aluminum Case
  • 2 Precision Ball Bearings
  • Unique steel gears
  • Torque @ 6.0v: 8kg / 111.1oz-in
  • Speed @ 6.0v: 0.06 sec / 60deg
  • Specifications:

  • Torque @ 7.4v: 18kg / 250oz-in
  • Speed @ 7.4v: 0.05 sec / 60deg
  • Dimensions L x W x H (mm): 40.3 x 20.2 x 38.7
  • Weight: 79g / 3.1oz

  • Technical Specs:
    • Operating Temperature: 14° - 122°F (-10° - 50°C)
    • Running Current (no load): 180mA @6.0V, 220mA @7.4V, 220mA @8.4V
    • Stall Current (at locked): 7500mA @6.0V, 9200mA @7.4V, 10500mA @8.4V
    • Idle Current: 5mA @6.0V, 5mA @7.4V, 5mA @8.4V
    • Wire Length: 300 +/- 5mm
    • Output Gear Spline: 25 Tooth
    • Bearings: 2BB
    • Operating Travel: 100° (1000 → 2000 µ second)
    • Neutral Position: 1500 µ second
    • Pulse Width Range: 800 → 2200 µ second
    • Maximum Travel: Appx 130° (900 → 2100 µ second)
    • Refresh Rate: 333 Hz
    • Motor Type: Brushless
