Savox SC-0251MGP Larger Standard Digital Servo

by Savox
Save 34% Save 34%
Original price $51.99
Original price $51.99 - Original price $51.99
Original price $51.99
Current price $34.09
$34.09 - $34.09
Current price $34.09
Availability:
Only 2 left!
Larger Standard Digital Servo, 0.18sec / 222oz @ 6.0V

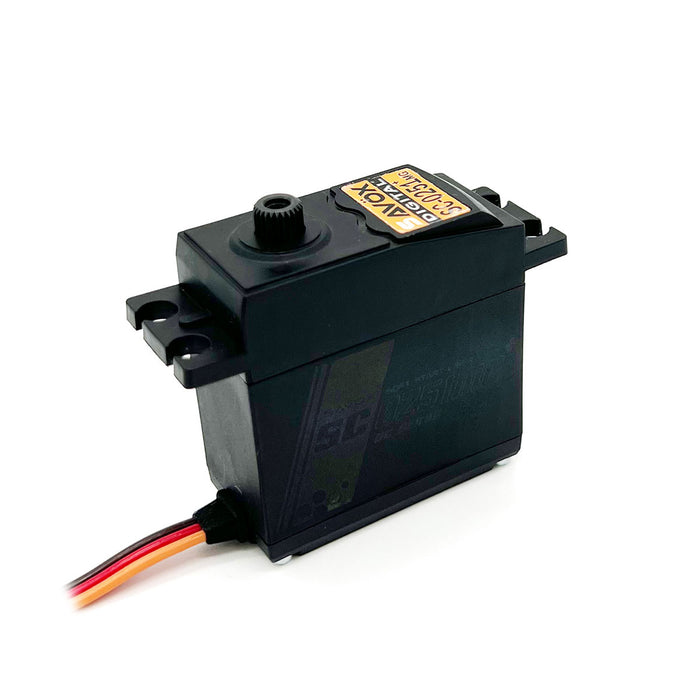

The Savox SC-0251MGP is a high torque, metal-geared, digital servo which is suitable for many applications .

"Plus" series servos feature Soft Start and Sanwa SSR compatibility.

Features:

  • Metal gear train ensures durability under harsh situations.
  • Slightly taller case design.
  • Ideal for aircraft and some 1/8 off road car applications.
  • Specifications:

  • Torque @ 4.8v - 13.0kg/180.5oz-in
  • Torque @ 6v - 16.0kg/222.2oz-in
  • Speed @ 4.8v - 0.20 sec/60 deg
  • Speed @ 6v - 0.18 sec/60 deg

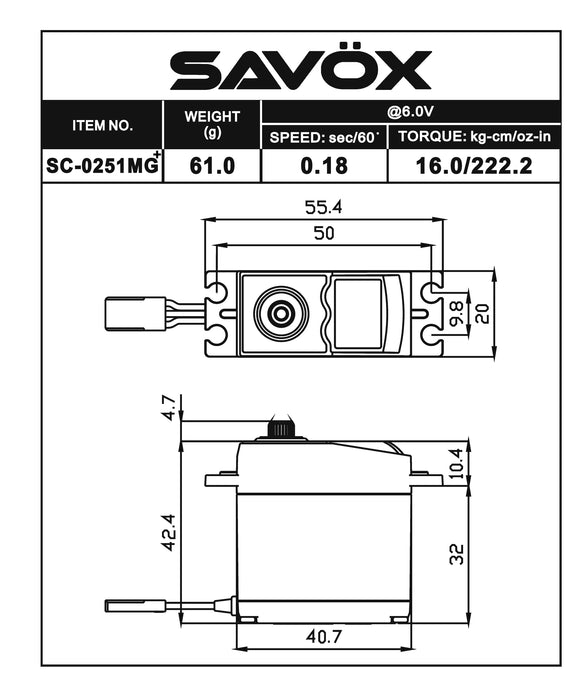

  • Dimensions L x W x H (mm): 40.7 x 20 x 42.4
  • Weight: 61.0g
  • Technical Specs:
    • Operating Temperature: 14° - 122°F (-10° - 50°C)
    • Running Current (no load): 300mA @4.8V, 350mA @6.0V
    • Stall Current (at locked): 2600mA @4.8V, 3200mA @6.0V
    • Idle Current: 5mA @4.8V, 6mA @6.0V
    • Wire Length: 300 +/- 5mm
    • Output Gear Spline: 25 Tooth
    • Bearings: 2BB
    • Operating Travel: 120° (1000 → 2000 µ second)
    • Neutral Position: 1500 µ second
    • Pulse Width Range: 800 → 2200 µ second
    • Maximum Travel: Appx 164° (800 → 2200 µ second)
    • Refresh Rate: 240 Hz
    • Motor Type: Brushed
