Savox SC0254MGP Standard Digital Servo w/ Soft Start

by Savox
Original price $34.99 - Original price $34.99
Original price
$34.99
$34.99 - $34.99
Current price $34.99
Availability:
in stock, ready to be shipped

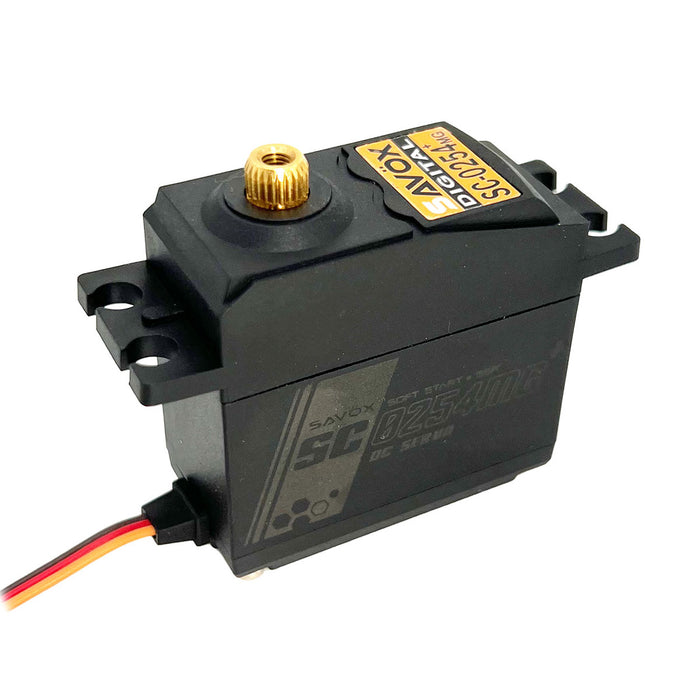

Standard Digital Servo with Soft Start, 0.14sec / 100oz @ 6V

The Savox SC-0254MG is a high torque, metal-geared, digital, standard servo. A great replacement for standard, plastic-geared servos with less torque.

"Plus" series servos feature Soft Start and Sanwa SSR compatibility.

Features:

  • Metal gear train ensures durability under harsh situations.
  • Higher torque output than standard servos.
  • Ideal for 30-60 size aircraft, and some car applications.
  • Specifications:

  • Torque @ 4.8v - 6.9kg/86.1oz-in
  • Torque @ 6v - 7.2kg/100.0oz-in
  • Speed @ 4.8v - 0.19 sec/60 deg
  • Speed @ 6v - 0.14 sec/60 deg

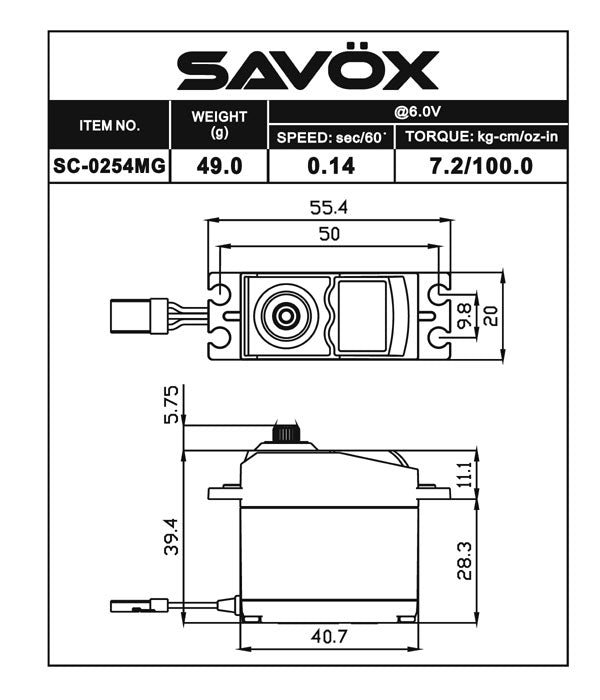

  • Dimensions L x W x H (mm): 40.7 x 19.6 x 39.4
  • Weight: 49.0g

  • Technical Specs:
    • Operating Temperature: 14° - 122°F (-10° - 50°C)
    • Running Current (no load): 220mA @4.8V, 240mA @6.0V
    • Stall Current (at locked): 1300mA @4.8V, 1500mA @6.0V
    • Idle Current: 6mA @4.8V, 6mA @6.0V
    • Wire Length: 300 +/- 5mm
    • Output Gear Spline: 25 Tooth
    • Bearings: 2BB
    • Operating Travel: 120° (1000 → 2000 µ second)
    • Neutral Position: 1500 µ second
    • Pulse Width Range: 800 → 2200 µ second
    • Maximum Travel: Appx 164° (800 → 2200 µ second)
    • Refresh Rate: 240 Hz
    • Motor Type: Brushed
