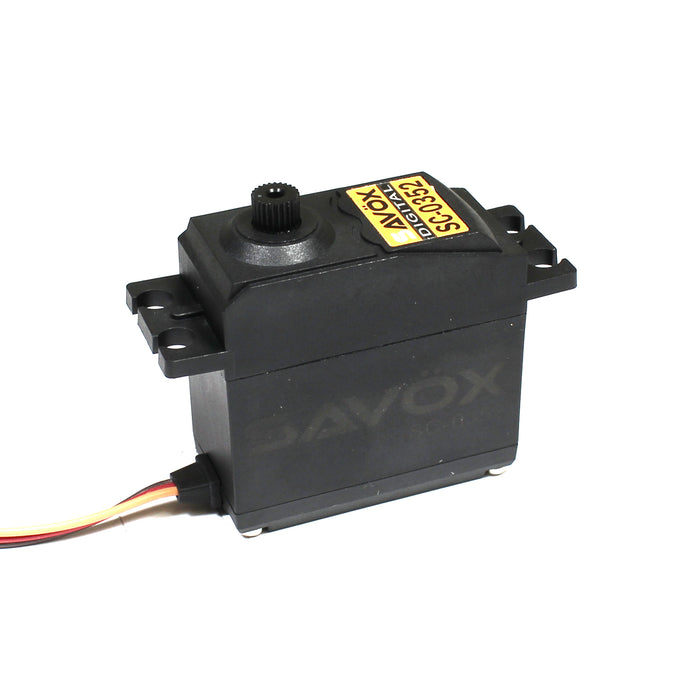

Savox SC-0352 Standard Digital Servo

by Savox
Sold out
Original price $29.99 - Original price $29.99
Original price
$29.99
$29.99 - $29.99
Current price $29.99
Availability:
Out of stock
Standard Digital Servo, 0.13sec / 90oz @ 6V

The Savox SC-0352 is considered a 'standard' servo, but outperforms other standard servos with more torque and dual bearing support.

Features:

  • Dual ball bearing support for precision and gear support.
  • Industrial plastic gear train is quiet and smooth.
  • More torque than other standard servos.
  • Specifications:

  • Torque @ 4.8v - 4.2kg/58.3oz-in
  • Torque @ 6v - 6.5kg/90.3oz-in
  • Speed @ 4.8v - 0.14 sec/60 deg
  • Speed @ 6v - 0.11 sec/60 deg

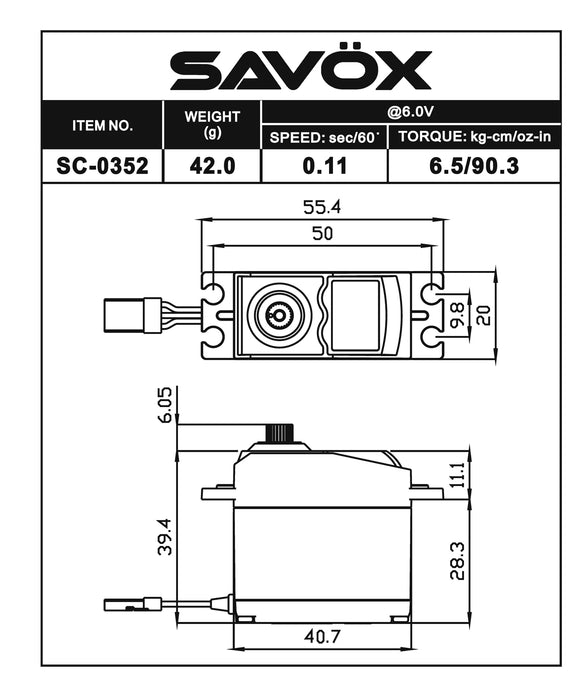

  • Dimensions L x W x H (mm): 40.7 x 20.0 x 39.4
  • Weight: 42.0g

  • Technical Specs:
    • Operating Temperature: 14° - 122°F (-10° - 50°C)
    • Running Current (no load): 180mA @4.8V, 240mA @6.0V
    • Stall Current (at locked): 1300mA @4.8V, 1500mA @6.0V
    • Idle Current: 5mA @4.8V, 5mA @6.0V
    • Wire Length: 250 +/- 5mm
    • Output Gear Spline: 25 Tooth
    • Bearings: 2BB
    • Operating Travel: 120° (1000 → 2000 µ second)
    • Neutral Position: 1500 µ second
    • Pulse Width Range: 800 → 2200 µ second
    • Maximum Travel: Appx 164° (800 → 2200 µ second)
    • Refresh Rate: 240 Hz
    • Motor Type: Brushed
