Savox SC1257TG-BE Black Edition Standard Size Coreless Digital Servo

by Savox
Original price $76.99 - Original price $76.99
Original price
$76.99
$76.99 - $76.99
Current price $76.99
Availability:
in stock, ready to be shipped

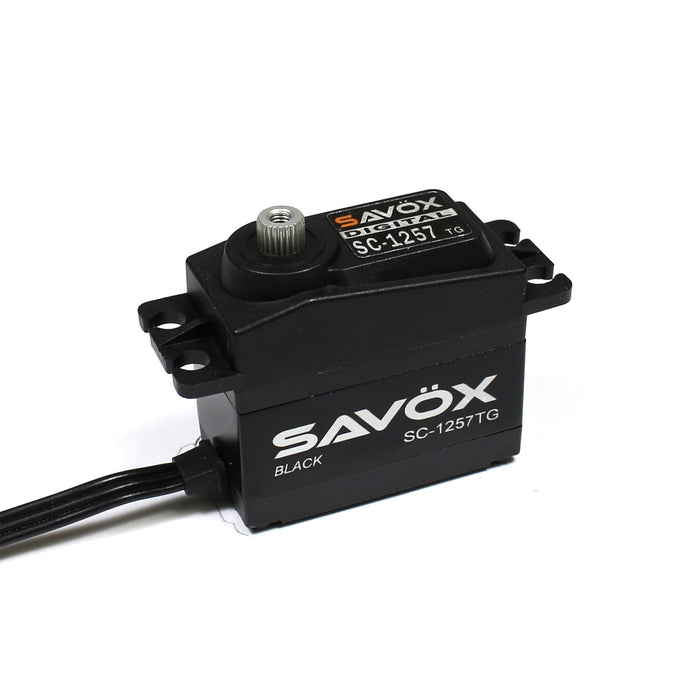

Black Edition, Standard Size Coreless Digital Servo, 0.07sec / 139oz @ 6V

The SC-1257TG-BE is a high speed standard servo that provides a fast transit for those looking to get the ultimate in speed. With an all black color design, the SC-1257TG-BE provides a stealth look in RC cars.

Features:

  • Extremely strong titanium gears ensure long-life, durability, and light weight.
  • Ideal for CCPM on 600 and 700 class heli, steering servo on 1/10 scale buggies
  • Sleek black design with laser etching and a shorter 200mm black lead wire.
  • Aluminum middle case allows for cooler operating temperatures.
  • Specifications:

  • Torque @ 4.8v -8.0kg/111.1oz-in
  • Torque @ 6v - 10kg/138.9oz-in
  • Speed @ 4.8v - 0.09 sec/60 deg
  • Speed @ 6v - 0.07 sec/60 deg

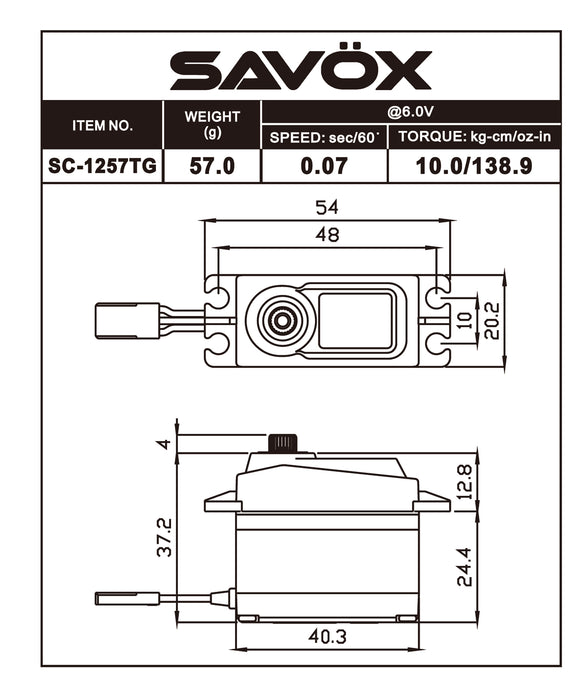

  • Dimensions L x W x H (mm): 40.3 x 20.2 x 37.2
  • Weight: 52.4g

  • Technical Specs:
    • Operating Temperature: 14° - 122°F (-10° - 50°C)
    • Running Current (no load): 100mA @4.8V, 120mA @6.0V
    • Stall Current (at locked): 4000mA @4.8V, 5000mA @6.0V
    • Idle Current: 5mA @4.8V, 5mA @6.0V
    • Wire Length: 250 +/- 5mm
    • Output Gear Spline: 25 Tooth
    • Bearings: 2BB
    • Operating Travel: 100° (1000 → 2000 µ second)
    • Neutral Position: 1500 µ second
    • Pulse Width Range: 800 → 2200 µ second
    • Maximum Travel: Appx 130° (900 → 2100 µ second)
    • Refresh Rate: 333 Hz
    • Motor Type: Coreless
