Savox SG0211MG High Torque Metal Case Digital Glider Servo

by Savox
Original price $76.99 - Original price $76.99
Original price
$76.99
$76.99 - $76.99
Current price $76.99
Availability:
in stock, ready to be shipped
High Torque Metal Case Digital Glider Servo, .13 / 111.1@ 6V

The SG-0211MG is specifically designed for glider and sailplane applications. With its unique case design, it is meant to be mounted in the slim specifications of wings.

Features:

  • Metal Gear train for extended life and durability.
  • Special design for glider applications.
  • Special design for glider applications.
  • All aluminum case for secure mounting.
  • Specifications:

  • Torque @ 4.8v - 6.0kg/83.3oz-in
  • Torque @ 6v - 8.0kg/111.1oz-in
  • Speed @ 4.8v - 0.16 sec/60 deg
  • Speed @ 6v - 0.13 sec/60 deg

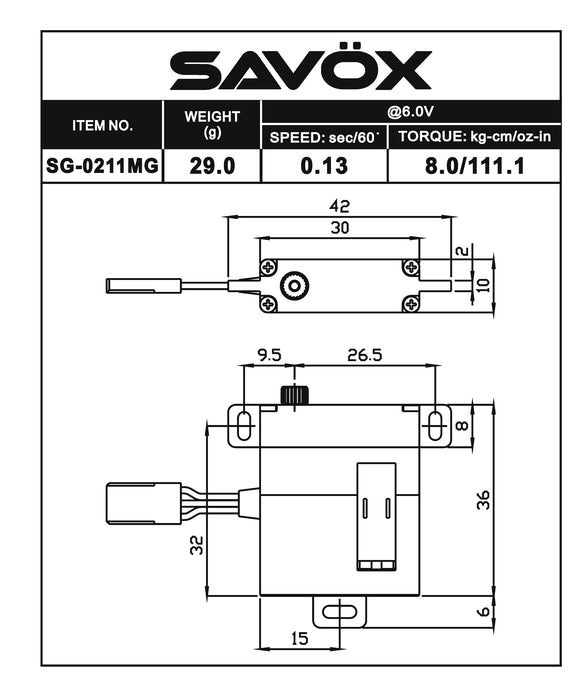

  • Dimensions L x W x H (mm): 30.0 x 10.0 x 36.0
  • Weight: 29g

  • Technical Specs:

    • Operating Temperature: 14° - 122°F (-10° - 50°C)
    • Running Current (no load): 120mA @4.8V, 180mA @6.0V
    • Stall Current (at locked): 1500mA @4.8 V, 1900mA @6.0V
    • Idle Current: 5mA @4.8V, 5mA @6.0V
    • Wire Length: 250 ± 5mm
    • Output Gear Spline: 21 Tooth
    • Bearings: 2BB
    • Operating Travel: 100° (1000 → 2000 µ second)
    • Neutral Position: 1500 µ second
    • Pulse Width Range: 800 → 2200 µ second
    • Maximum Travel: Appx 165° (800 → 2200 µ second)
    • Refresh Rate: 240 Hz
    • Motor Type: Brushed
