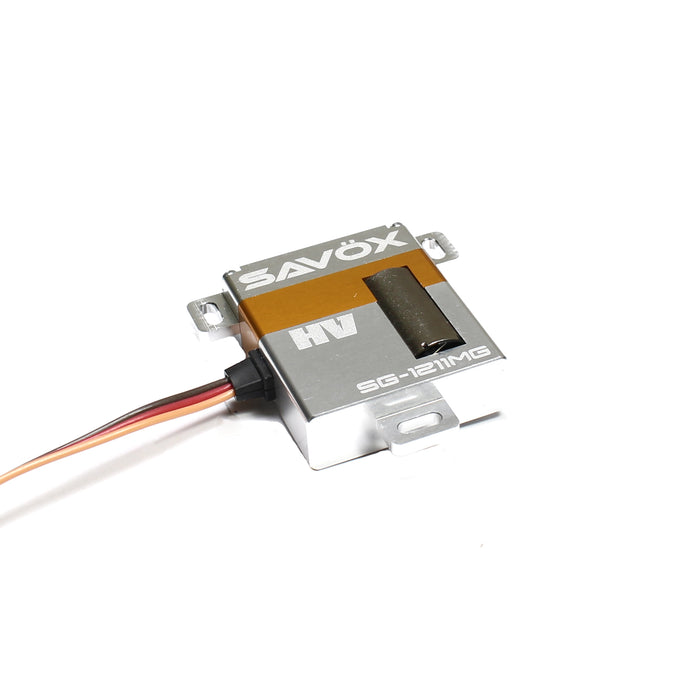

Savox SG1211MG High Torque High Voltage Metal Case Digital Glider Servo

by Savox
Original price $88.99 - Original price $88.99
Original price
$88.99
$88.99 - $88.99
Current price $88.99
Availability:
Only 2 left!

High Torque High Voltage Metal Case Digital Glider Servo, .15sec / 153.1oz

Features:

  • Metal Gear train for extended life and durability.
  • Special design for glider applications.
  • All aluminum case for secure mounting.
  • Capable of 2S Operation
  •

    Specifications:

  • Torque @ 6v - 8.0kg/111.1oz-in
  • Torque @ 7.4v - 11.03kg/153.1oz-in
  • Speed @ 6v - 0.18 sec/60 deg
  • Speed @ 7.4v - 0.15 sec/60 deg

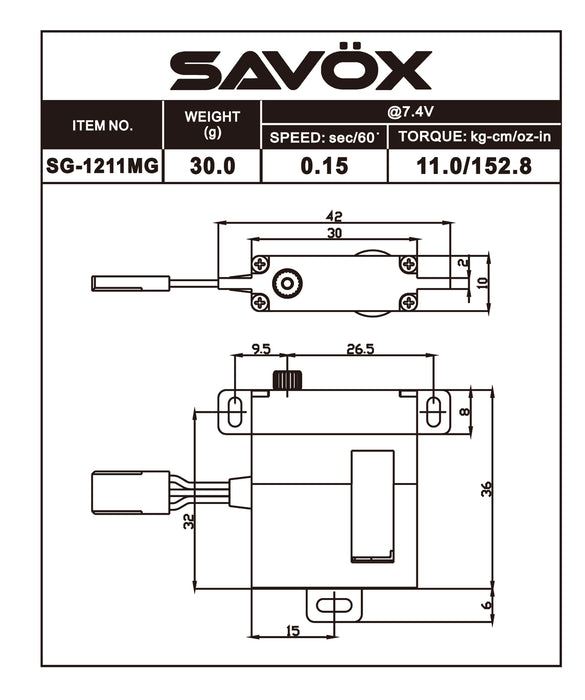

  • Dimensions L x W x H (mm): 30.0 x 10.0 x 36.0
  • Weight: 29g

  • Technical Specs:

    • Operating Temperature: 14° - 122°F (-10° - 50°C)
    • Running Current (no load): 120mA @6.0V, 180mA @7.4V
    • Stall Current (at locked): 3000mA @6.0 V, 3700mA @7.4V
    • Idle Current: 5mA @6.0V, 5mA @7.4V
    • Wire Length: 250 ± 5mm
    • Output Gear Spline: 21 Tooth
    • Bearings: 2BB
    • Operating Travel: 100° (1000 → 2000 µ second)
    • Neutral Position: 1500 µ second
    • Pulse Width Range: 800 → 2200 µ second
    • Maximum Travel: Appx 165° (800 → 2200 µ second)
    • Refresh Rate: 333 Hz
    • Motor Type: Coreless
