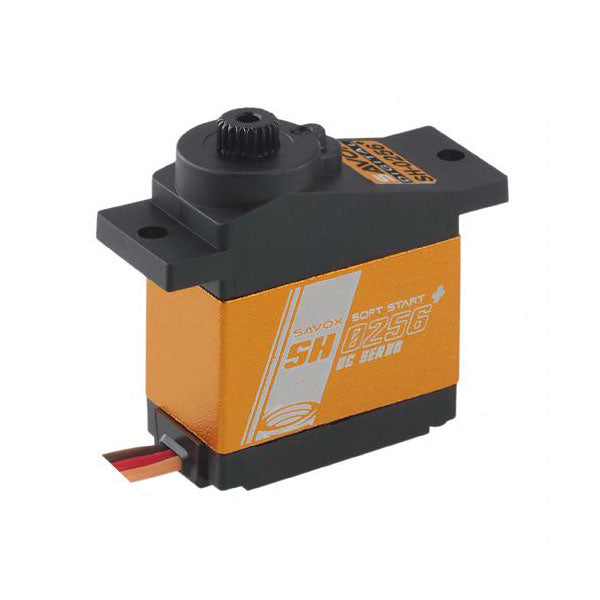

Savox SH0256P Micro Digital Servo

by Savox
Original price $39.99 - Original price $39.99
Original price
$39.99
$39.99 - $39.99
Current price $39.99
Availability:
in stock, ready to be shipped
Micro Digital Servo with Soft Start 0.16sec / 63.9oz @ 6v

The Savox SH-0256 micro, super torque, digital Plus servo has a massive amount of torque in a micro-sized case.

"Plus" series servos feature Soft Start and Sanwa SSR compatibility.

Features:

  • Aluminum middle case allows for cooler operating temperatures.
  • Industrial plastic and metal gear train ensures durability and longevity.
  • Ideal for small planes, and 450 size helicopters.
  • Specifications:

  • Torque @ 4.8v - 3.9kg/54.2oz-in
  • Torque @ 6v - 4.6kg/63.9oz-in
  • Speed @ 4.8v - 0.21 sec/60 deg
  • Speed @ 6v - 0.16 sec/60 deg

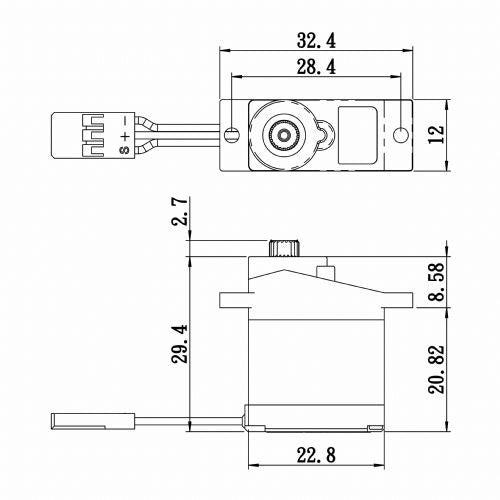

  • Dimensions L x W x H (mm):22.8 x 12.0 x 29.4
  • Weight: 15.8g

  • Technical Specs:

    • Operating Temperature: 14° - 122°F (-10° - 50°C)
    • Water Resisting Property: Water Resistant (not waterproof)
    • Running Current (no load): 180mA @ 4.8V, 250mA @6.0V
    • Stall Current (at locked): 4200mA @4.8V, 5300mA @6.0V
    • Idle Current: 5mA @ 4.8V, 5mA @6.0V
    • Wire Length: 200 +/- 5mm
    • Output Gear Spline: 21 Tooth
    • Bearings: 1BB
    • Operating Travel: 100° (1000 → 2000 µ second)
    • Neutral Position: 1500 µ second
    • Pulse Width Range: 800 → 2200 µ second
    • Maximum Travel: Appx 130° (900 → 2100 µ second)
    • Refresh Rate: 240 Hz
    • Motor Type: Brushed
