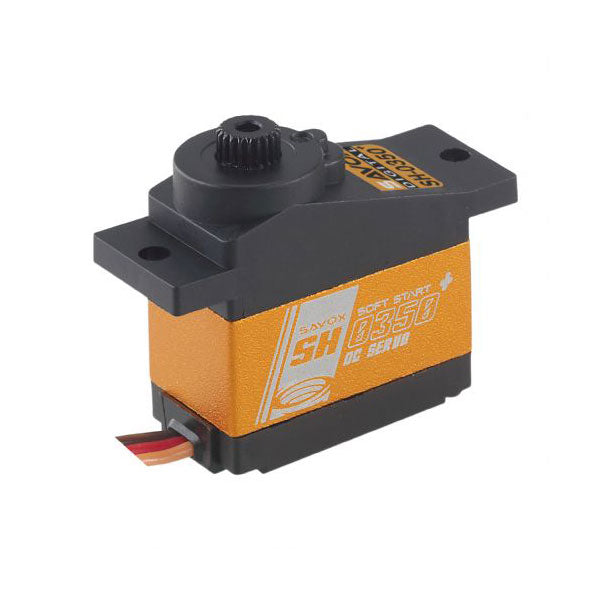

Savox SH0350P Micro Digital Servo w/ Soft Start

by Savox
Original price $30.99 - Original price $30.99
Original price
$30.99
$30.99 - $30.99
Current price $30.99
Availability:
in stock, ready to be shipped
Micro Digital Servo w/Soft Start, 0.16sec / 36oz @ 6V

The SH-0350 is a budget-friendly, micro-sized servo with an aluminum case for additional support.

"Plus" series servos feature Soft Start and Sanwa SSR compatibility.

Features:

  • Aluminum middle case allows for cooler operating temperatures.
  • Ideal for small planes, and 450 size helicopters.
  • "Plus" series servos feature Soft Start and Sanwa SSR compatibility.
  • Specifications:

  • Torque @ 4.8v - 2.2kg/30.6oz-in
  • Torque @ 6v - 2.6kg/36.1oz-in
  • Speed @ 4.8v - 0.21 sec/60 deg
  • Speed @ 6v - 0.16 sec/60 deg

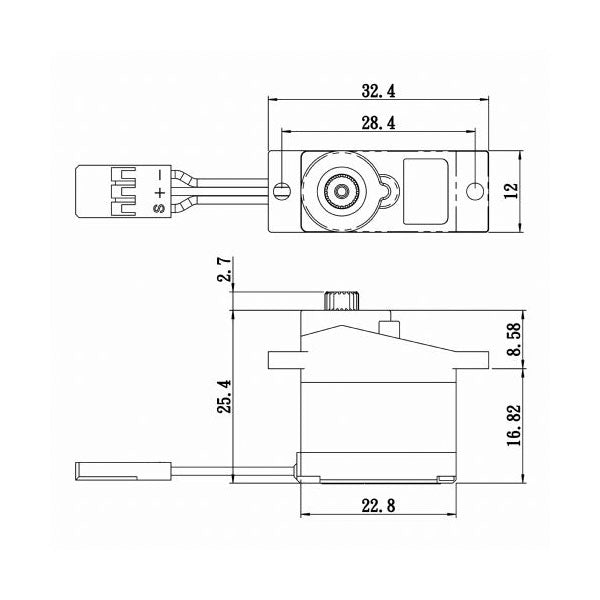

  • Dimensions L x W x H (mm):22.8 x 12.0 x 25.4
  • Weight: 12.3g

  • Technical Specs:

    • Operating Temperature: 14° - 122°F (-10° - 50°C)
    • Running Current (no load): 150mA @4.8V, 180mA @6.0V
    • Stall Current (at locked): 1000mA @4.8V, 1200mA @6.0V
    • Idle Current: 5mA @4.8V, 5mA @6.0V
    • Wire Length: 250 ± 5mm
    • Output Gear Spline: 21 Tooth
    • Bearings:
    • Operating Travel: 90° (1000 → 2000 µ second)
    • Neutral Position: 1500 µ second
    • Pulse Width Range: 700 → 2300 µ second
    • Maximum Travel: Appx 150° (700 → 2300 µ second)
    • Refresh Rate: 240 Hz
    • Motor Type: Brushed
