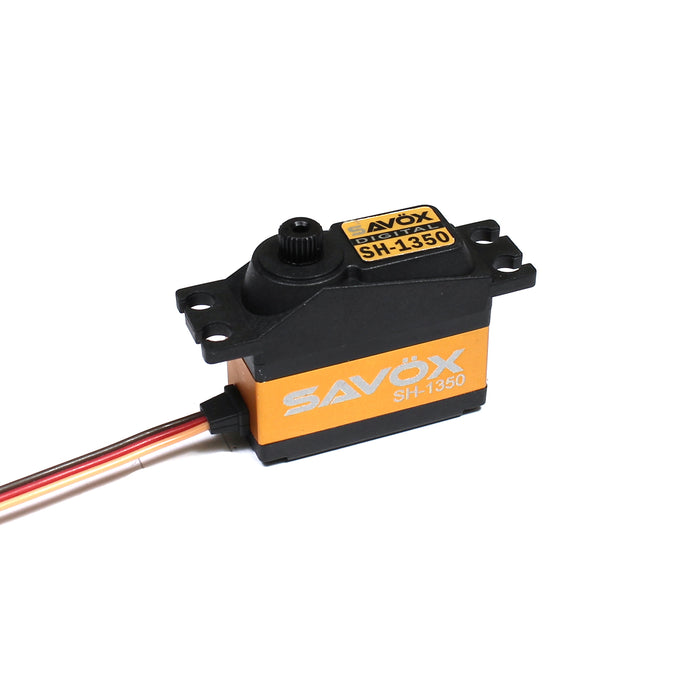

Savox SH1350 Mini Size Coreless Digital Servo

by Savox
Original price $52.99 - Original price $52.99
Original price
$52.99
$52.99 - $52.99
Current price $52.99
Availability:
in stock, ready to be shipped
Mini Size Coreless Digital Servo .11/63 @ 6V

The Savox SH-1350 is a micro sized, digital servo that is extremely strong for its size without having ot use higher voltage batteries which makes it great for a number of applications.

Features:

  • Aluminum middle case allows for cooler operating temperatures.
  • Industrial plastic gear allows for a smmoth and quiet operation yet remains durable.
  • Dual ball bearing support.
  • Specifications:

  • Torque @ 4.8v - 3.7kg/51.4oz-in
  • Torque @ 6v - 4.6kg/63.9oz-in
  • Speed @ 4.8v - 0.13 sec/60 deg
  • Speed @ 6v - 0.11 sec/60 deg

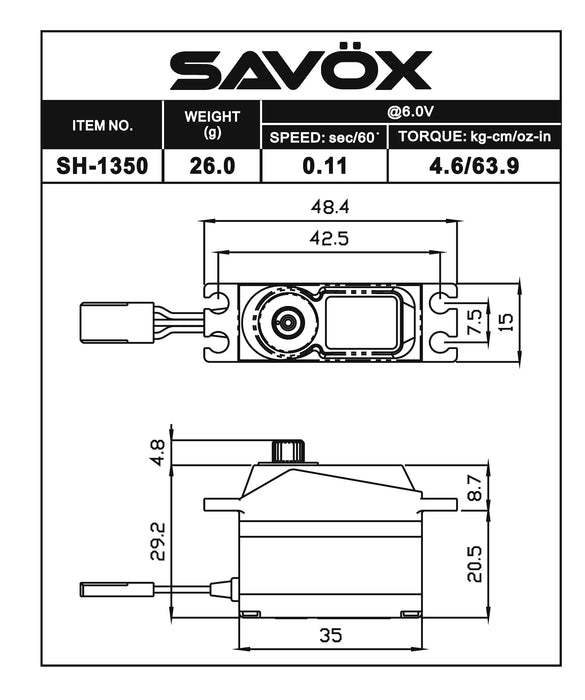

  • Dimensions L x W x H (mm): 35.0 x 15.0 x 29.2
  • Weight: 26.0g

  • Technical Specs:

    • Operating Temperature: 14° - 122°F (-10° - 50°C)
    • Running Current (no load): 80mA @4.8V, 100mA @6.0V
    • Stall Current (at locked): 800mA @4.8V, 1000mA @6.0V
    • Idle Current: 6mA @4.8V, 6mA @6.0V
    • Wire Length: 250 ± 5mm
    • Output Gear Spline: 25 Tooth
    • Bearings: 2BB
    • Operating Travel: 110° (1000 → 2000 µ second)
    • Neutral Position: 1500 µ second
    • Pulse Width Range: 800 → 2200 µ second
    • Maximum Travel: Appx 154° (800 → 2200 µ second)
    • Refresh Rate: 333 Hz
    • Motor Type: Coreless
