Savox SV1254MGP High Voltage Coreless Low Profile Digital Servo w/ Soft Start

by Savox
Original price $93.99 - Original price $93.99
Original price
$93.99
$93.99 - $93.99
Current price $93.99
Availability:
in stock, ready to be shipped

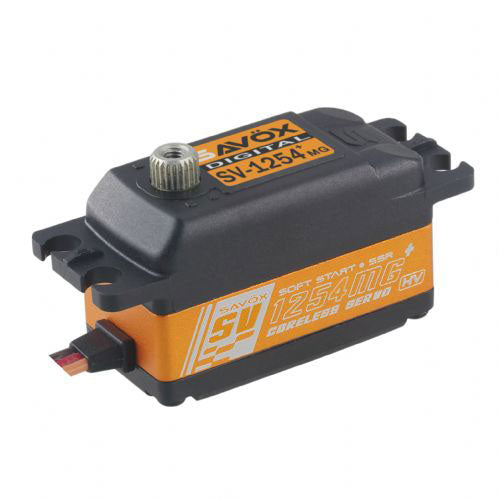

High Voltage Coreless Low Profile Digital Servo with Soft Start, 0.085sec / 208.3oz @ 7.4V

The SV-1254MG servo is a high performance coreless servo with good torque and fast transit time in a low profile package.

"Plus" models feature Soft Start and Sanwa SSR Compatibility

Features:

  • Steel gear train provide durability against heavy use.
  • Capable of HV operation.
  • Standard size performance in a low profile package.
  • Ideal for 1/10 on road and other applications where space is tight.
  • Soft Start and Sanwa SSR Compatibility
  • Specifications:

  • Torque @ 7.4v - 15.0kg-cm/208.3oz-in
  • Torque @ 8.4v - 18.0kg-cm/250.0oz-in
  • Speed @ 7.4v - 0.085 sec/60 deg
  • Speed @ 8.4v - 0.075 sec/60 deg

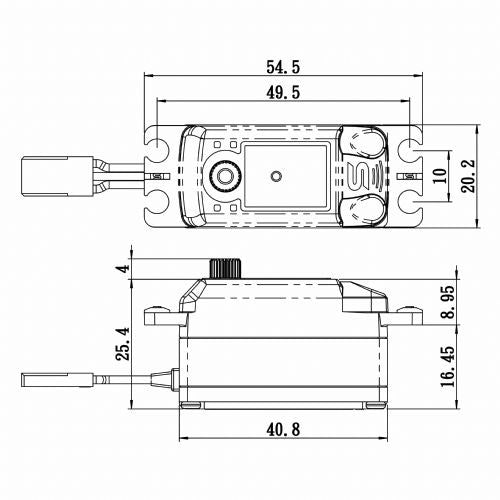

  • Dimensions L x W x H (mm): 40.8 x 20.2 x 25.4
  • Weight: 46.0g

  • Technical Specs:

    • Operating Temperature: 14° - 122°F (-10° - 50°C)
    • Running Current (no load): 150mA @6.0V, 180mA @7.4V
    • Stall Current (at locked): 5200mA @6.0V, 6400mA @7.4V
    • Idle Current: 5mA @4.8V, 5mA @6.0V
    • Wire Length: 300 ± 5mm
    • Output Gear Spline: 25 Tooth
    • Bearings: 2BB
    • Operating Travel: 90° (1000 → 2000 µ second)
    • Neutral Position: 1500 µ second
    • Pulse Width Range: 900 → 2050 µ second
    • Maximum Travel: Appx 160° (700 → 2300 µ second)
    • Refresh Rate: 333 Hz
    • Motor Type: Coreless
