DJI Matrice 4TD Standalone Combo w/ Remote & Battery

Next-Generation Visibility for Critical Operations

Engineered for public safety, infrastructure, and remote inspections, the DJI Matrice 4TD offers unmatched situational awareness with a built-in thermal and telephoto imaging suite. This workhorse drone delivers up to 47 minutes of flight time and features a cutting-edge obstacle sensing system designed to function even at high speeds. Built for mission reliability, the Matrice 4TD thrives in low-visibility, high-stakes conditions.

Its unique 80-degree upward tilting camera provides the vantage point needed to assess bridge undersides or high-rise structures with unprecedented clarity. Combined with IP55-rated weather protection and 12mm wire detection, it's the go-to solution for inspections where precision matters.

Thermal Meets Telephoto for Real-World Results

Equipped with a 48MP telephoto camera and ultra-high resolution infrared thermal sensor, the Matrice 4TD enables professionals to spot structural issues or heat anomalies from hundreds of meters away. The integrated relay function allows one aircraft to maintain communication while another executes the mission-ideal for operations beyond cellular range.

The included DJI RC Plus 2 Enhanced Controller offers SDR and 4G hybrid video transmission through a high-bright display, allowing clear visuals in sunlight and remote areas alike.

Key Features

• 48MP telephoto camera with 250m zoom and 80° upward tilt
• Ultra-high resolution thermal imaging (1280 × 1024)
• Up to 47 minutes of flight time; 18 minutes at 10 km range
• IP55 protection for dust, rain, and field conditions
• Detects wires as small as 12mm while flying at 15 m/s
• Onboard relay mode extends range via a second drone
• RC Plus 2 Controller with 7" high-bright display
• NIR auxiliary light and Night Scene Mode for 24/7 ops

Applications

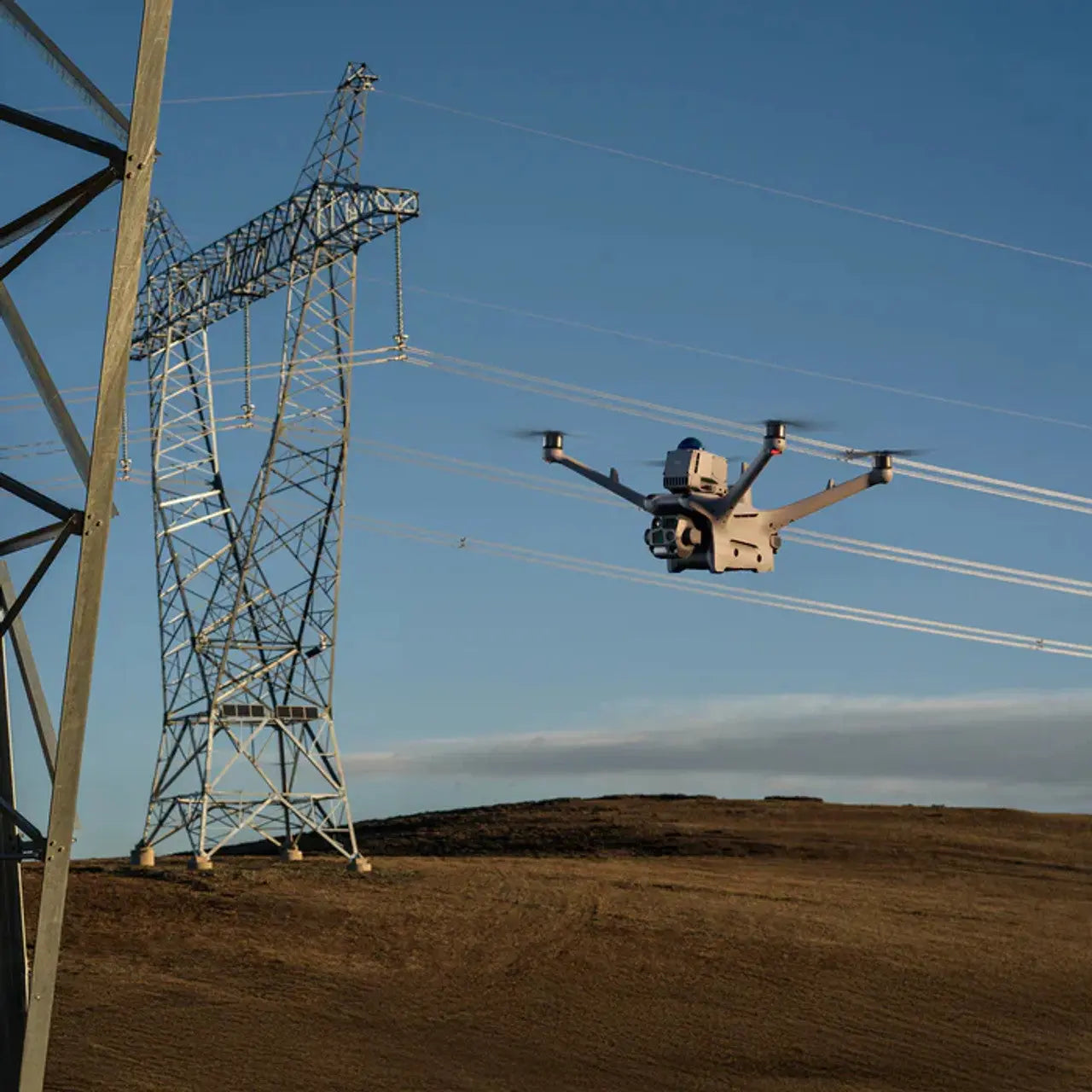

• Powerline and substation inspections with advanced LiDAR support
• Disaster response and search-and-rescue in difficult terrain
• Thermal scanning of rooftops, industrial sites, or farmlands
• Orthophoto and oblique mapping with terrain-follow flight paths
• Bridge, tower, and building assessments via telephoto tilt

******************

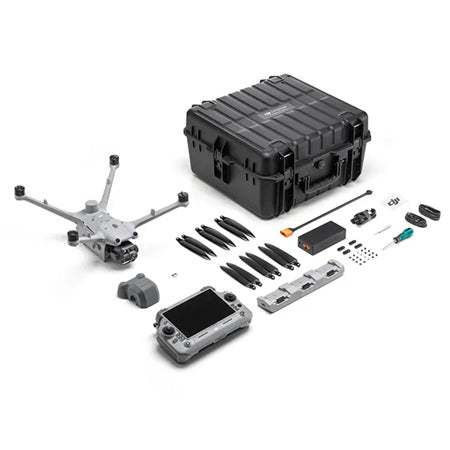

The Matrice 4TD combo includes:

• DJI Matrice 4TD Aircraft
• DJI RC Plus 2 Enterprise Controller
• 1x intelligent flight battery
• DJI Matrice 4 Series 240W Charging Hub
• DJI 240W USB-C Power Adapter
• DJI Matrice 4TD Propellers (Pair) x3
• DJI WB37 Remote Controller Battery
• USB-C to USB-C Cable
• USB-A to USB-C Cable
• Gimbal Cover
• Screwdriver & Screws
• microSD Card 64GB
• DJI Matrice 4TD Hard Case

You then have the option of selecting extras accessories from the options above!

Spotlights:

• DJI AL1 (most popular): this is DJI's flagship spotlight designed for the drone. It can be combined with the AS1 speaker for use in unison which can be handy in public safety applications. You don't have to land to swap out accessories. The AL1 is a visible-light spotlight only with no NIR (near-infrared) or laser pointer capabilities.
• JZ T40(P) spotlight: this is an aftermarket spotlight which has been reported to be brighter than the AL1 and it comes with an integrated visible laser pointer which can be used to pinpoint targets to units on the ground. JZ is a highly trusted name in the drone industry and makes fantastic products. However, this spotlight cannot be used in conjunction with the AS1 speaker. Therefore, the drone would have to be landed to swap out payloads.

Speaker: the AS1 speaker, as mentioned above, can be used in conjunction with the AL1 spotlight. It is useful for broadcasting verbal commands over a large area.

Drop systems: the JZ AD2 drop system is a useful accessory for public safety drone applications. This mechanism can be attached to the bottom of the drone and used to transport and drop light objects to units on perimeter positions or subjects on operations. The AD2 is available with or without an operational laser sight for more targeted delivery. Note: for use on the Matrice 4TD, you must select the required bracket to attach the AD2 to the bottom of the drone. The AD2 can be attached to the Matrice 4T without the use of the bracket.

Optional fast chargers:

The included OEM charging hub from DJI charges just one battery at a time. We offer several options for optional fast chargers to keep you in the air longer.

• Additional DJI OEM charging hub: the stock DJI 240W charging hub can charge one battery to 100% in 55 minutes or to 90% (ready-to-fly mode) in 40 minutes. Having an additional charging hub means you can charge 2 batteries in this time. If selecting an additional 240W DJI hub, you will also want to select an additional 240W power adapter. The power adapter is the "brick" that connects to the wall that the hub connects to.
• AK M4TD3 charging hub (most popular): this aftermarket 600W charging hub can accept 3 batteries at once and can charge all in approximately 50 minutes.

Optional WB37 controller battery: the controller for the Matrice 4TD features a built-in battery with up to 7 hours of run time. You have the option of using an external DJI WB37 controller battery which fits in the back of the controller for an additional 4-6 hours of run time on extended operations. The battery is hot swappable and helps ensure you don't get grounded due to a dead controller. Optionally, you can also add the LKTOP charging hub to charge the WB37 battery independently of the controller. Alternatively, the WB37 can be charged while installed in the controller using the included OEM charger. Therefore, the charging hub for the WB37 is also an optional accessory but handy in situations where you are flying for hours at a time and need to ensure continued operations without interruption.

LKTOP WB37 charging hub: The optional WB37 remote battery can be charged while installed in the remote using the OEM charger, or this optional LKTOP charging hub allows for separate, faster charging of up to 2x batteries.

Mobile ops monitor case: Lastly, you can choose to add on a Seetec 21.5" rugged monitor case for enhanced mobile field ops. The Seetec case features a 1000nit daylight-bright monitor enclosed in a ruggedized case. This allows you to output the controller screen onto a larger viewing surface for better viewing of small details on the go. We recommended powering it with a vehicle power inverter or mobile power source such as a Jackery or EcoFlow lithium generator. This can also be used for mobile charging of drone batteries in the field.

AIRCRAFT SPECS

Weight
1850 g

This value includes the weight of the battery, propellers, and a microSD card, but does not include third-party payloads. The actual weight may vary due to differences in batch materials and external factors.

Max Takeoff Weight
2090 g

Dimensions
377.7×416.2×212.5 mm (L×W×H, without propellers)

Wheelbase
Diagonal Wheelbase: 498.5 mm
Front Motor Left-Right Wheelbase: 383.0 mm
Rear Motor Left-Right Wheelbase: 343.0 mm
Front-Rear Wheelbase: 341.6 mm

Max Ascent Speed
6 m/s (Normal Mode)
10 m/s (Sport mode)

Max Descent Speed
6 m/s (Normal Mode)
8 m/s (Sport mode)

Max Horizontal Speed (at sea level, no wind)
Normal Mode, With Obstacle Sensing Enabled: 15 m/s flying forward, 12 m/s flying backward, 10 m/s flying sideways
Sport Mode: 21 m/s flying forward, 19 m/s flying backward, 15 m/s flying sideways

When used with DJI Dock, only Normal mode is supported.

Max Wind Speed Resistance
During Operation: 12 m/s
During Takeoff/Landing: 12 m/s

Max Takeoff Altitude
6500 m

Max Flight Time
54 minutes

Measured in a controlled test environment.

Max Hovering Time
47 minutes

Max Operating Radius
10 km

Max Flight Distance
43 km

Measured with Matrice 4D/4TD flying at a constant speed of 16 m/s in a windless environment at 20 meters above sea level and from 100% battery level until 0%.

 Max Pitch Angle

25° (Normal Mode)
30° (Sport Mode)

Max Angular Velocity
200°/s

Global Navigation Satellite System
GPS + BeiDou + Galileo + QZSS + GLONASS (QZSS and GLONASS are supported only when the RTK module is enabled.)

Hovering Accuracy Range (windless or breezy)
Vertical:
±0.1 m (with vision positioning)
±0.5 m (with GNSS positioning)
±0.1 m (with RTK positioning)

Horizontal:
±0.3 m (with vision positioning)
±0.5 m (with GNSS positioning)
±0.1 m (with RTK positioning)

Operating Temperature
-20° to 50° C (-4° to 122° F)
Ingress Protection Rating
IP55

Motor Model
2611

Propeller Model
1364F foldable low-noise anti-ice propellers

RTK Module
Integrated on the aircraft

Beacon
Integrated on the aircraft

DJI Matrice 4TD Aircraft
DJI RC Plus 2 Enterprise Controller
1x Intelligent Flight Battery
DJI Matrice 4 Series 240W Charging Hub
DJI 240W USB-C Power Adapter
DJI Matrice 4TD Propellers (Pair) x3
USB-C to USB-C Cable
USB-A to USB-C Cable
Gimbal Cover
Screwdriver & Screws
microSD Card 64GB
DJI Matrice 4TD Hard Case
