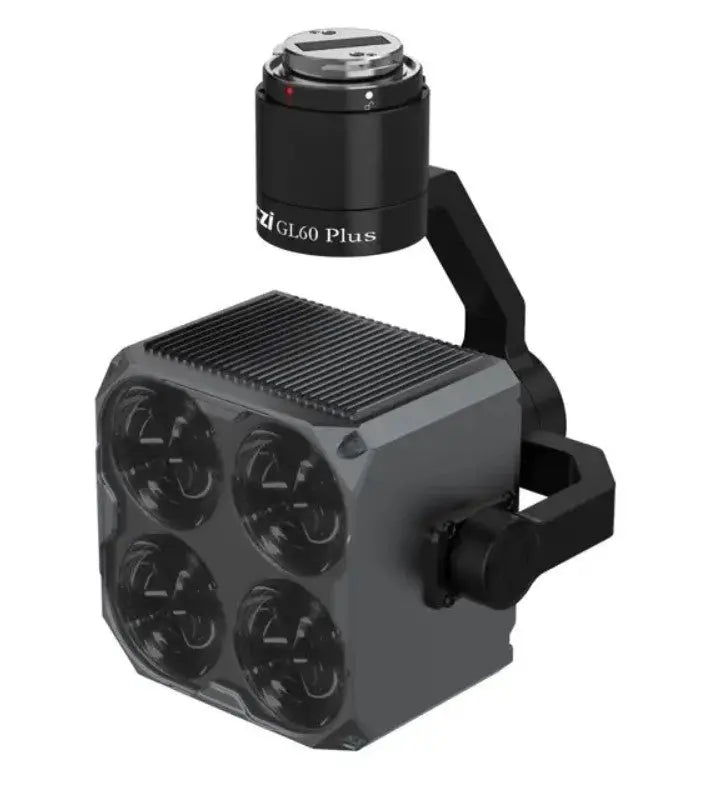

CZI GL60 Plus SDK Gimbal Spotlight for DJI M300/M350 RTK
This Item Ships FREE
Description
The CZI GL60 Plus SDK Gimbal Spotlight has 4 sets of optical imaging components, each comprising 4 lenses. These lenses work collectively to emit a focused beam of light at a precise 15° angle, ensuring both brightness and color uniformity.
With a maximum power consumption of 120W, the spotlight achieves an impressive illumination value of 24lux at the center of a 100-m spot. At a height of 150m, the effective illumination area spans 1,225 square meters, significantly enhancing the aerial illumination capabilities for drone night operations.
The GL60 Plus boasts an overall ultra-lightweight design, weighing a mere 750 grams.
Compatible with the DJI SkyPort V2.0 interface, the searchlight seamlessly integrates with DJI M200 V2, M300 RTK, and M350 RTK.
This versatility makes it an ideal choice for various night operations, including law enforcement, firefighting, search and rescue missions, power grid line inspections, and other enterprise applications.
- LED linear dimming
- 120W max power
- 100m ground illumination 24lux
- 4 sets of optical imaging lenses
- No reflector design
- Ultra-lightweight design
- Compatible with M200 V2, M300 RTK, & M350 RTK
Model
GL60 Plus
Electrical interface
DJI SkyPort V2.0
Weight/g
750g
Dimensions/mm
126*131*167mm
FOV/°
15°
Supply voltage /V
PSDK 17V+OSDK 24V
PSDK 17V
Total power/W
128W
68W
LED power/W
120W
60W
Luminous flux/lm
13400lm±3%
8000lm±3%
Luminous efficacy(lm/W)
111.67lm/W
133.33lm/W
Spot diameter/m
13.2m（distance：50m,120W）
26.4m（distance：100m,120W）
39.5m（distance：50m,120W）
13.2m（distance：50m,60W）
26.4m（distance：100m,60W）
39.5m（distance： 150m,60W）
Illumination area/m²
136m²（distance：50m,120W）
544m²（distance：100m,120W）
1225m²（distance：150m,120W）
136m²（distance：50m,60W）
544m²（distance：100m,60W）
1225m²（distance：150m,60W）
Central illuminance/Lux
85Lux（Power:120W；distance：50m）
23Lux（Power:120W；distance：100m）
11Lux（Power:120W；distance：150m）
45Lux（Power:60W；distance：50m）
12Lux（Power:60W；distance：100m）
6Lux（Power:60W；distance：150m）
Function mode
Normally on: 120W , 60W
Sharp flash: 120W , 60W
Adjusting the gimbal angle
Adjusting brightness
Range of rotation of the gimbal
Pitch: -99°~+23°
Horizontal: ±99°
Design range of the gimbal
Pitch: - 100 ° ~ + 24° < br / > Horizontal: ±100° < br / > Rolling: - 90°～+ 60°
Operating temperature
-20°C~+50°C
