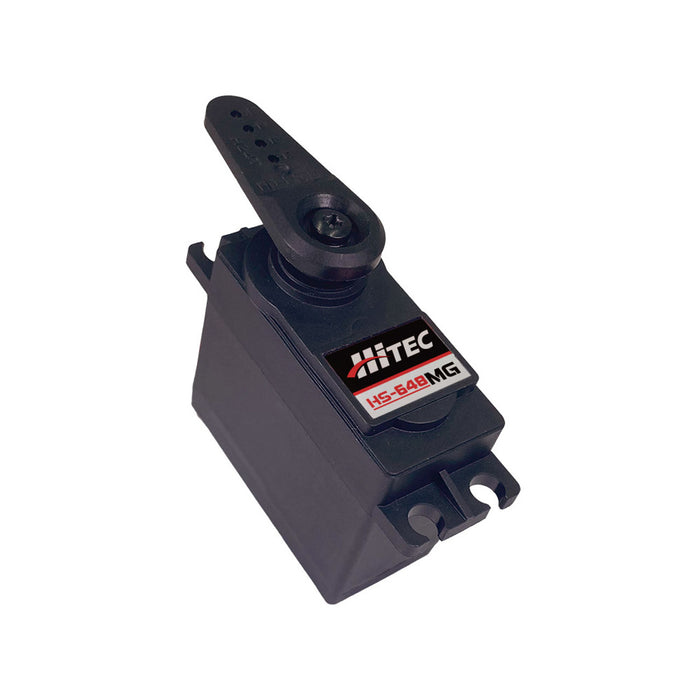

Hitec HS-648MG High Torque Metal Gear 25T Analog Sport Servo
Original price
$34.99
-
Original price
$34.99
Original price
$34.99
$34.99
-
$34.99
Current price
$34.99
Availability:
in stock, ready to be shipped
Featuring the industry standard 25-tooth output spline with 3mm hex screw, and metal gears for maximum durability, our new HS-648MG is the 25-tooth version of our powerful high-torque HS-645MG. It’s the perfect choice for those larger sport planes or monster trucks and buggies requiring a durable high torque servo. Equipped with our unique M/P and metal gear train technology, the HS-648MG offers one of the strongest gear trains available in any servo.
Features
- High Torque Metal Gear Servo
- 25 Tooth Output Spline
- Revolutionary Metal/Plastic First Gear (MP Gear)
- Cored Metal Brush Motor
- Dual Ball Bearing Supported Output Shaft
- Top Selling High Torque Metal Gear Servo
| General Specifications | |||
| Operating Voltage Range | 3.5 ~ 6.8V | ||
| Voltage | 4.8V | 6.0V | - |
| No Load Speed | 0.24sec/60˚ | 0.20sec/60˚ | - |
| Stall Torque | 7.7kgf·cm (106.93 oz·in) | 9.6kgf·cm (133.32 oz·in) | - |
| Peak Efficiency Torque | 1.5kgf·cm (20.8 oz·in) | 1.9kgf·cm (26.4 oz·in) | - |
| Standing Current | 9mA | 9mA | - |
| No Load Running Current | 350mA | 450mA | - |
| Stall Current | - | - | - |
| Deadband | 8μs | 8μs | - |
| Continuous Rotation | n / a | ||
| Connector Wire Length | 300mm (11.811 in.) | ||
| Connector Wire Gauge | 24AWG | ||
| Dimensions | 40.6 x 19.8 x 37.8mm (1.598 x 0.780 x 1.488 in.) | ||
| Weight | 55.2g (1.947oz) | ||
| Motor Type | Cored Metal Brush | ||
| Bearing Type | 2 Ball Bearing | ||
| Case Material | Engineering Plastic | ||
| Gear Material | 1 Metal+Plastic & 3 Metal Gears | ||
| Horn Gear Spline | 25T (Ø6.0) | ||
| IP-Rating | IP4X | ||
| Servo Amplifier Type | Analog Controller | ||
| Radio Control Applications | |||
| Parkflyer | n / a | ||
| Sport Plane | 12-15 lbs. | ||
| Sailplane | 2 Meters and up | ||
| 3D Performance | 12-15 lbs. | ||
| Giant / Large Scale | 12-15 lbs. | ||
| On Road | 1/10th | ||
| Monster Truck | 1/10th | ||
| Buggy | 1/10th | ||
| Truggy | 1/10th | ||
| Short Coarse / Truck | 1/10th | ||
| Crawler | 1/12th | ||
| Electric Heli | n / a | ||
| Gas Heli | n / a | ||
| Sail Boat | ≥ 1 Meter & Scale | ||
| Power Boat | 1/10th | ||
