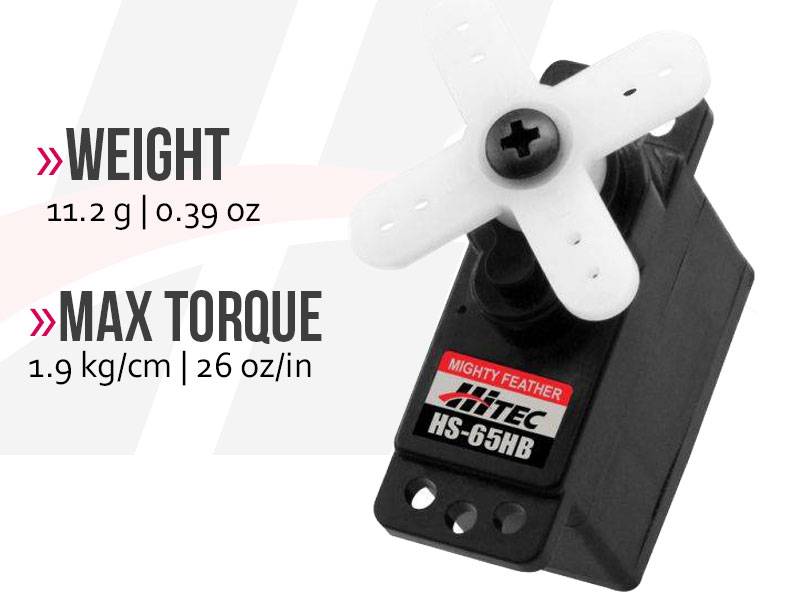

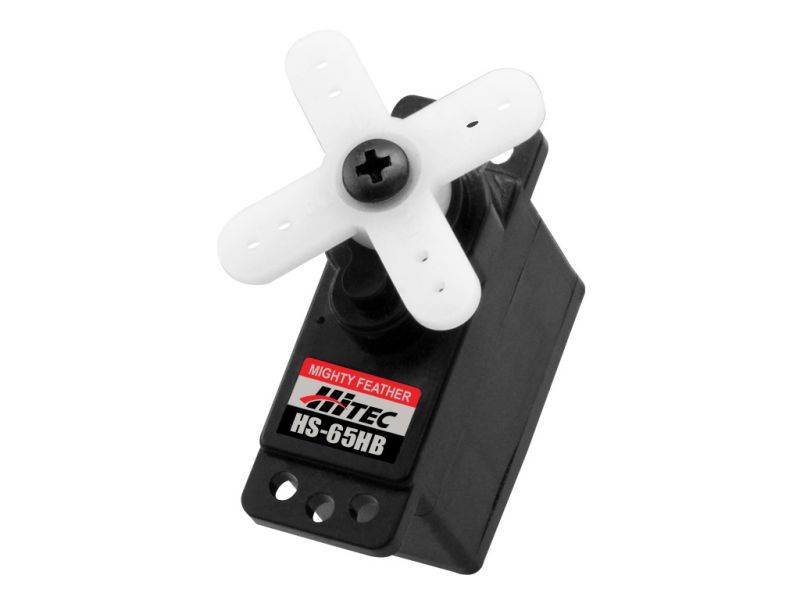

Hitec HS-65HB Mighty Karbonite Gear Feather Servo


Hitec/Multiplex

In Stock

Regular price $25.49

Considered one of the most powerful servos in the micro class, the HS-65 is offered with a choice of “shock resistant” Metal or “zero wear” Karbonite gears. The 65 series features a top-ball bearing for long life and positive centering, 31 ounces/inches of power at 6 volts and is an excellent choice for higher performance micro helicopters, electric park flyers, and 1/18 scale cars.

Features

  • Premium Feather Servo
  • Strong Karbonite Gears
  • Ball Bearing-Supported Output Shaft
  • High Torque and High Speed

Performance Specifications

Operating Voltage Range (Volts DC)

4.8V ~ 6.0V

Speed (Second @ 60°)

0.16 ~ 0.13

Maximum Torque Range oz. / in.

22 ~ 26

Maximum Torque Range kg. / cm.

1.6 ~ 1.9

Current Draw at Idle

7.7 mA

No Load Operating Current Draw

220 mA

Stall Current Draw

1,200 mA

Dead Band Width

5 µs

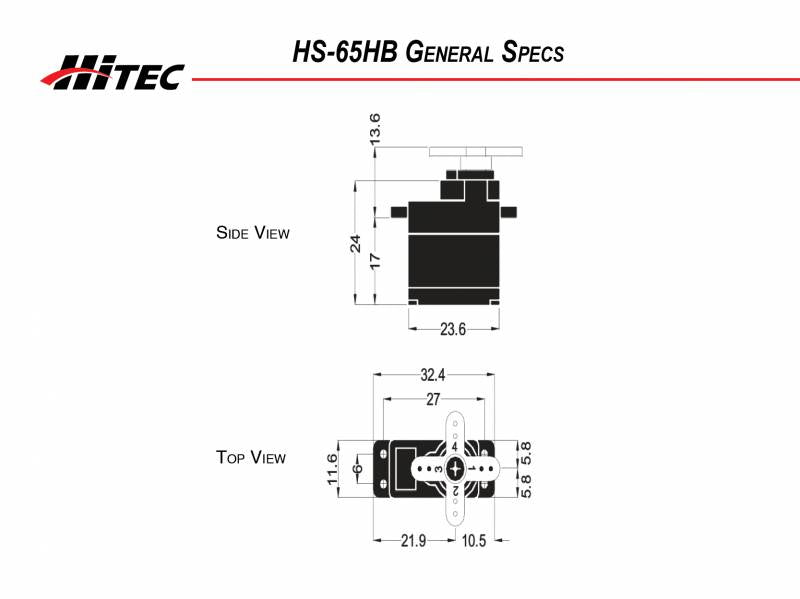

Physical Specifications

Dimensions (Inches)

0.92 x 0.45 x 0.94

Dimensions (Metric)

23.6 x 11.6 x 24.0

Weight (Ounces)

0.39

Weight (Gram)

11.2

Circuit Type

HT7003 Analog SMT

Motor Type

3 Pole Metal Brush Neodymium

Gear Material

Karbonite

Bearing Type

Top Ball Bearing

Output Shaft (type / Ømm)

Feather 15 / 8

Case Material

Plastic

Dust / Water Resistance

N / A

Connector Gauge (AWG) / Strand Count

28 / 20

Radio Control Applications

Parkflyer

< 42 oz.

Sport Plane

36 - 41 oz.

Sailplane

< 2 meter / DLG

3D Performance

Foamies

Scale

N / A

Electric Helicopter

400 - 500mm

Gas Helicopter

30 - 39 Class

On Road

N / A

Monster Truck

N / A

Buggies

N / A

Truggies

N / A

Short Course / Truck

1/8th

Crawlers

N / A

Sail Boat

N / A

Power Boat

1/8th
