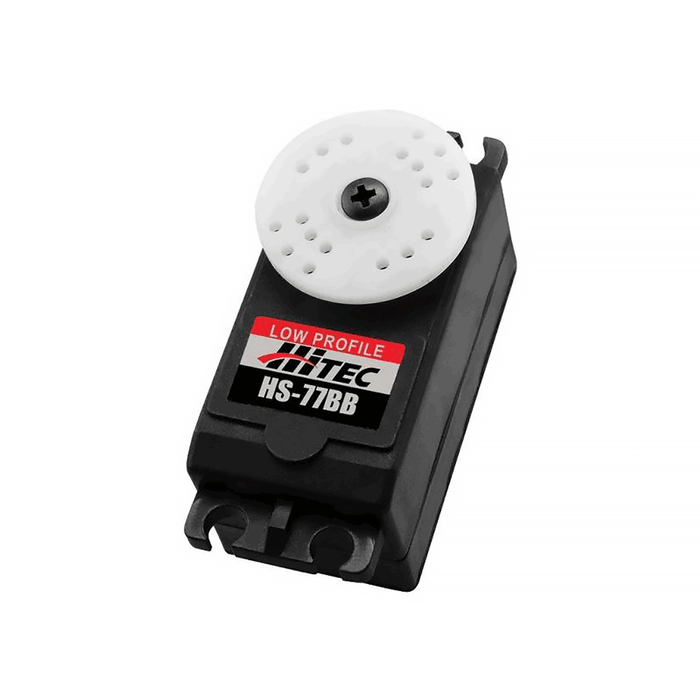

Hitec HS-77BB Nylon Gear Analog Low Profile Servo
Original price
$29.99
-
Original price
$29.99
Original price
$29.99
$29.99
-
$29.99
Current price
$29.99
Availability:
in stock, ready to be shipped
With its low profile design and strong standing torque, the HS-77BB is a great choice for wing or tail mounting in aircraft up to 1.20 size. Submarines, boats, cars and trucks can also benefit from this servo’s strength and compact size.
Features
- Low Profile Compact Design
- High Torque Three-Pole Ferrite Motor
- Durable Nylon Gears
- Top Ball Bearings
HS-77BB Servo Specifications
| Performance Specifications | |
| Operating Voltage Range (Volts DC) | 4.8V ~ 6.0V |
| Speed (Second @ 60°) | 0.18 ~ 0.14 |
| Maximum Torque Range oz. / in. | 61 ~ 76 |
| Maximum Torque Range kg. / cm. | 4.4 ~ 5.5 |
| Current Draw at Idle | 8 mA |
| No Load Operating Current Draw | 250 mA |
| Stall Current Draw | 800 mA |
| Dead Band Width | 8 µs |
| Physical Specifications | |

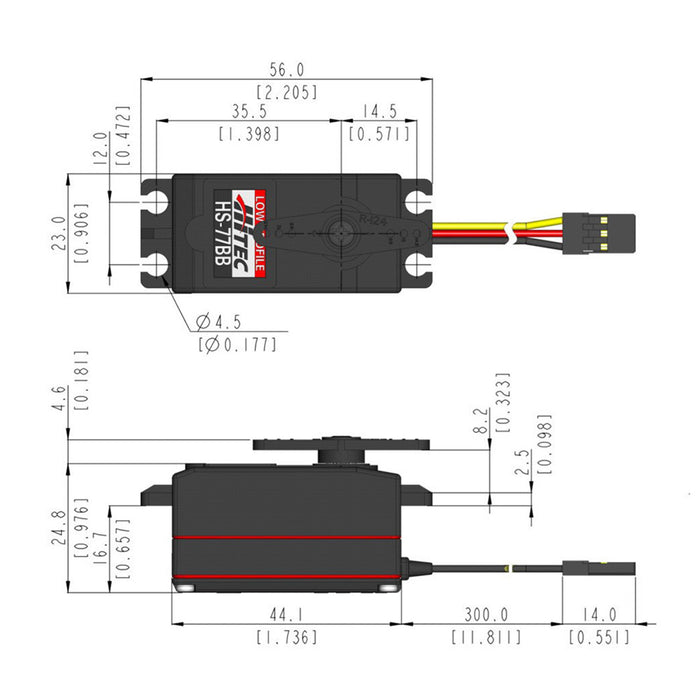

| Dimensions (Inches) | 1.73 x 0.90 x 0.98 |
| Dimensions (Metric) | 44.0 x 23.0 x 25.0 |
| Weight (Ounces) | 1.23 |
| Weight (Gram) | 35.0 |
| Circuit Type | HT7003 Analog SMT |
| Motor Type | 3 Pole Metal Brush Ferrite |
| Gear Material | Nylon |
| Bearing Type | Top Ball Bearing |
| Output Shaft (type / Ømm) | Standard 24 |
| Case Material | Plastic |
| Dust / Water Resistance | Splash Proof |
| Connector Gauge (AWG) / Strand Count | 25 / 40 |
| Radio Control Applications | |
| Parkflyer | N / A |
| Sport Plane | 12 - 15 lbs. |
| Sailplane | N / A |
| 3D Performance | 12 - 15 lbs. |
| Scale | 12 - 15 lbs. |
| Electric Helicopter | N / A |
| Gas Helicopter | N / A |
| On Road | N / A |
| Monster Truck | N / A |
| Buggies | N / A |
| Truggies | N / A |
| Short Course / Truck | N / A |
| Crawlers | N / A |
| Sail Boat | < 1 meter |
| Power Boat | N / A |
