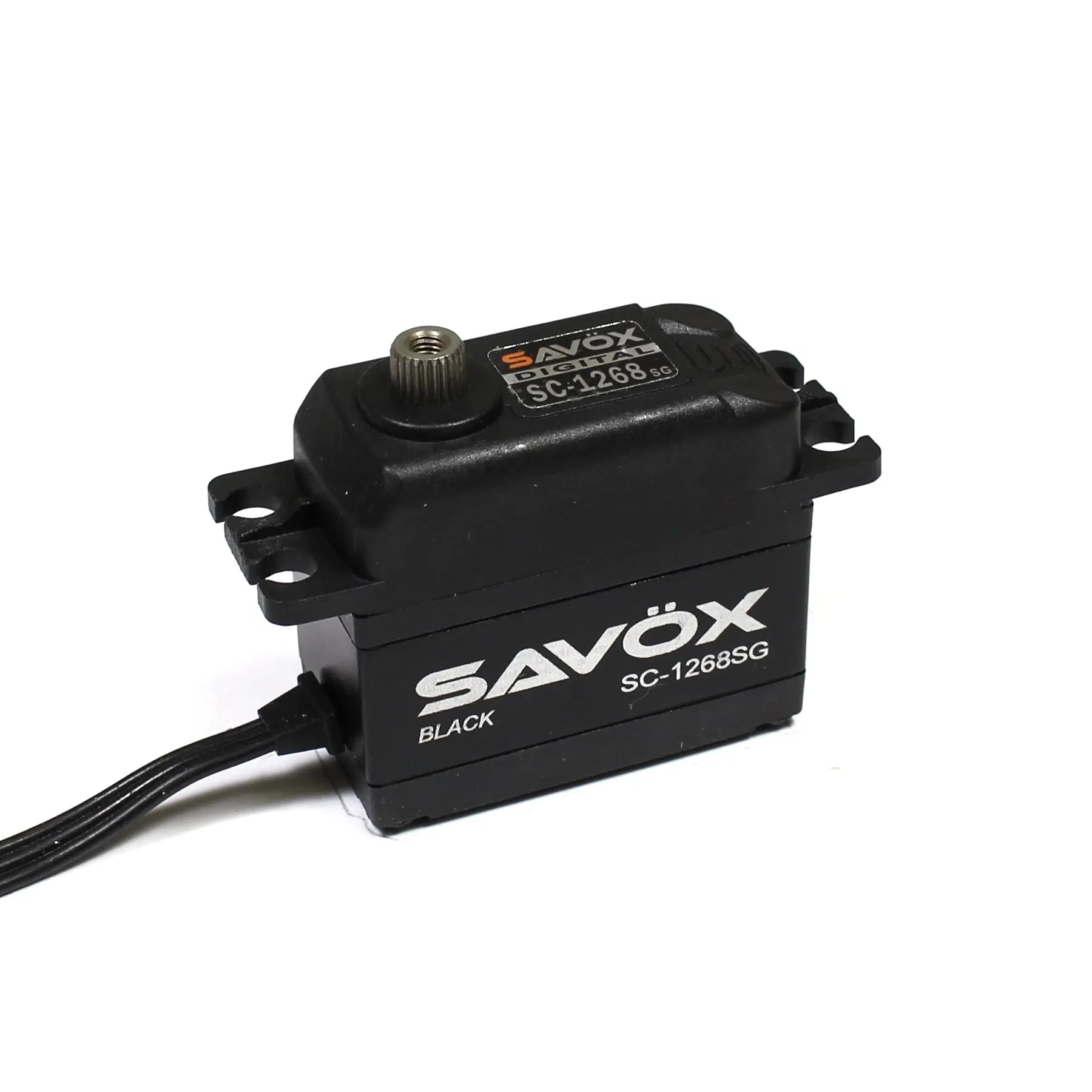

Savox SC1268SG-BE Black Edition High Torque Digital Servo

by Savox
Original price $88.99 - Original price $88.99
Original price
$88.99
$88.99 - $88.99
Current price $88.99
Availability:
in stock, ready to be shipped
Black Edition, High Torque Digital Servo, 0.11sec / 347oz @ 7.4V

The SC-1268SG-BE is a high torque servo that delivers combining leading edge technology with super high 12 bit (4096) resolution along with it's strong output and durable gear train.

Features:

  • Super strong and precision made unique steel gears provide durability and survive heavy use.
  • Capable of HV operation.
  • Sleek black design with laser etching and a shorter 200mm black lead wire.
  • Ideal for 1/8 buggies, and other applications desiring high amounts of power.
  • Specifications:

  • Torque @ 6v - 15.0kg/208.3oz-in
  • Torque @ 7.4v - 25.0kg/347.2oz-in
  • Speed @ 6v - 0.13 sec/60 deg
  • Speed @ 7.4v - 0.11 sec/60 deg

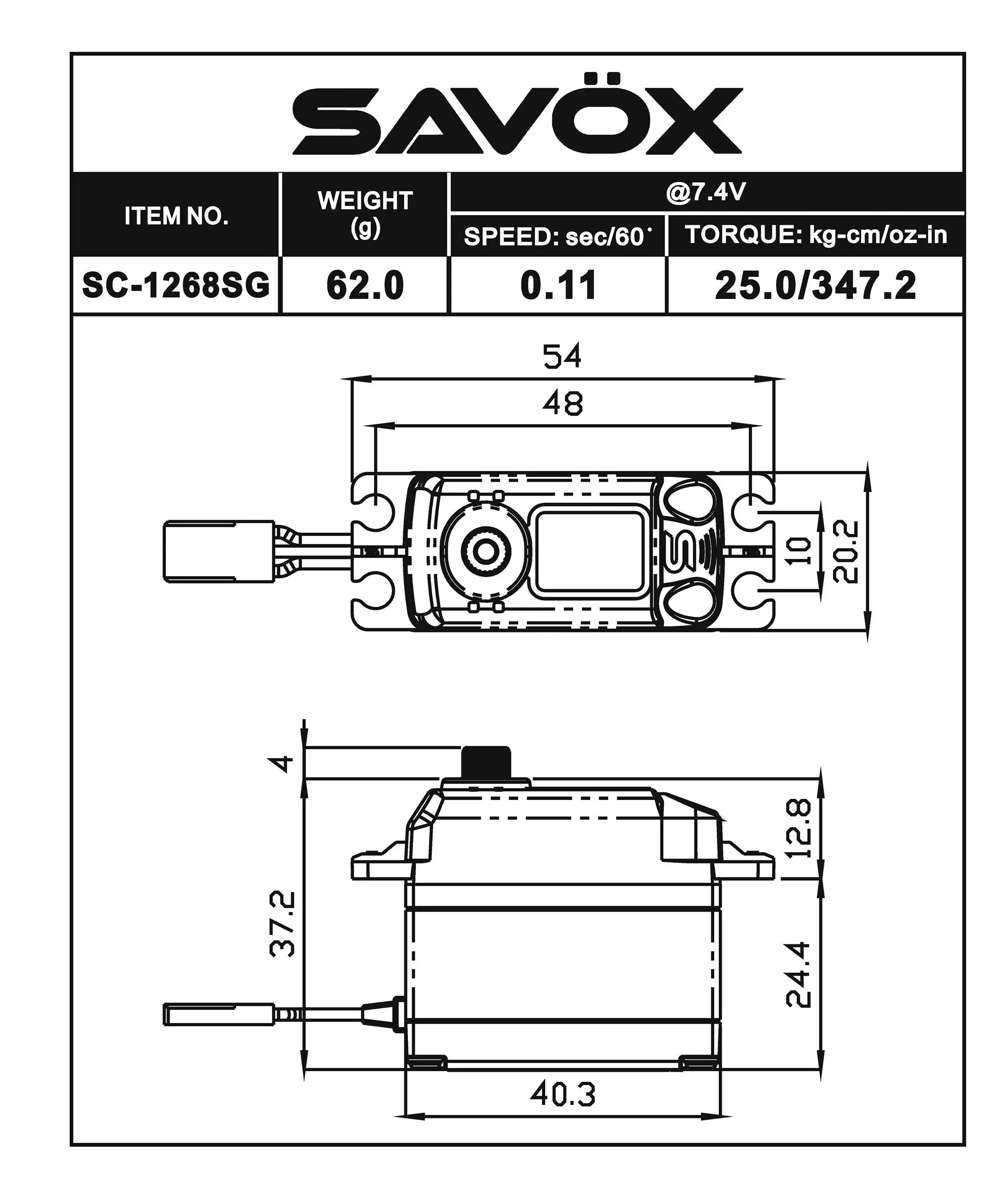

  • Dimensions L x W x H (mm): 40.3 x 20.2 x 37.2
  • Weight: 62.0g

  • Technical Specs:
    • Running Current (no load): 100mA @4.8V, 120mA @6.0V, 150mA @7.4V
    • Stall Current (at locked): 2500mA @4.8V, 3000mA @6.0V, 3500mA @7.4V
    • Idle Current: 5mA @4.8V, 5mA @6.0V, 5mA @7.4V
    • Wire Length: 200 ± 5mm
    • Output Gear Spline: 25 Tooth
    • Bearings: 2BB
    • Operating Travel: 100° (1000 → 2000 µ second)
    • Neutral Position: 1500 µ second
    • Pulse Width Range: 800 → 2200 µ second
    • Maximum Travel: Appx 130° (900 → 2100 µ second)
    • Refresh Rate: 333 Hz
    • Motor Type: Coreless
