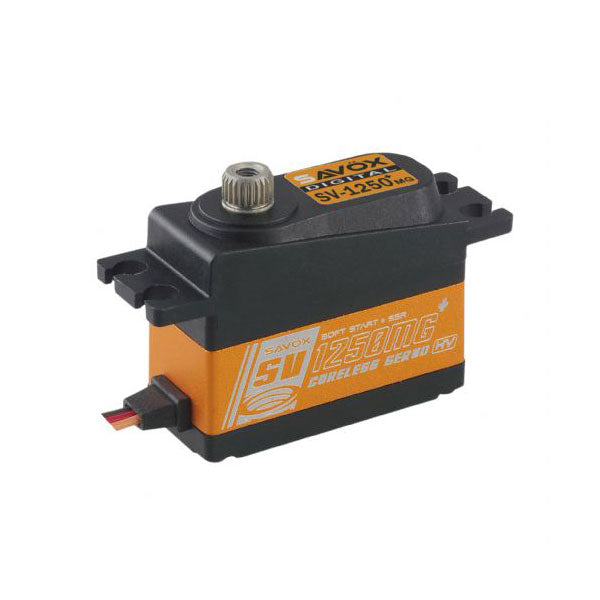

Savox SV1250MGP High Voltage Micro Tail Servo w/Soft Start

by Savox
Original price $69.99 - Original price $69.99
Original price
$69.99
$69.99 - $69.99
Current price $69.99
Availability:
in stock, ready to be shipped
High Voltage Micro Tail Servo w/Soft Start, 0.095sec / 111.1oz @ 7.4v

The SV-1250MG mini-sized, metal-geared, digital servo is extremely powerful for it's size and capbable of operating on higher voltages than most mini/micro servos compared to other brands.

"Plus" series servos feature Soft Start and Sanwa SSR compatibility.

Features:

  • Steel gear train provide durability against heavy use.
  • Capable of HV operation.
  • Aluminum middle case allows for cooler operating temperatures.
  • Ideal where torque is needed in a small mounting space.
  • "Plus" series servos feature Soft Start and Sanwa SSR compatibility.
  •

    Specifications:

  • Torque @ 6v - 4.6kg/63.9oz-in
  • Torque @ 7.4v - 8.0kg/111.1oz-in
  • Speed @ 6v - 0.11 sec/60 deg
  • Speed @ 7.4v - 0.095 sec/60 deg

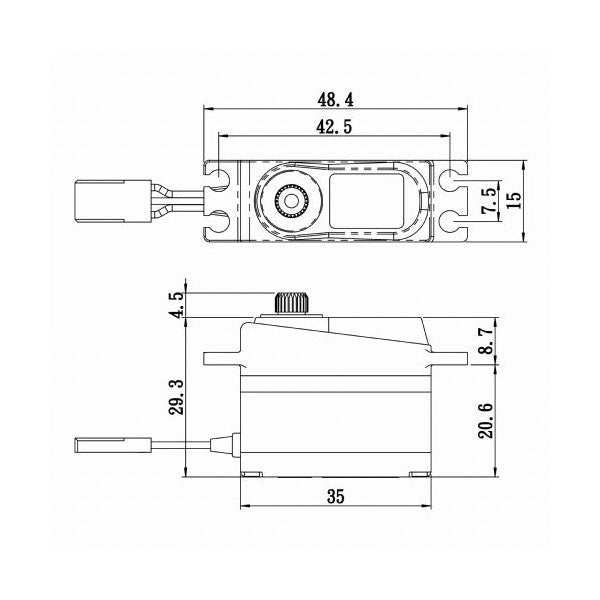

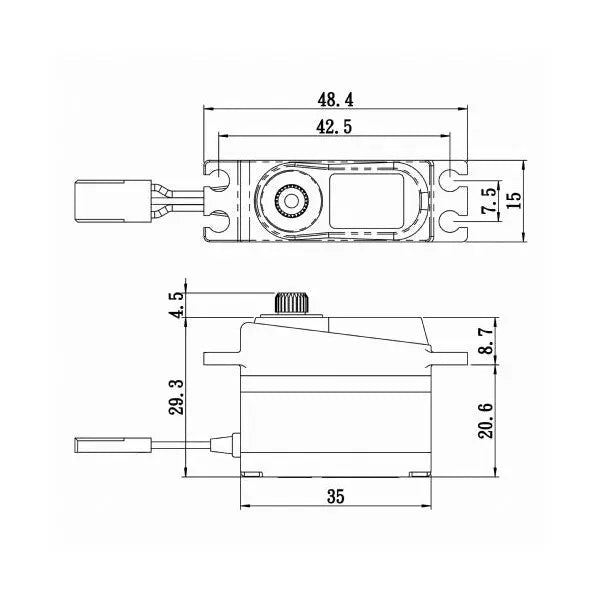

  • Dimensions L x W x H (mm): 35.0 x 15.0 x 29.2
  • Weight: 29.6g

  • Technical Specs:
    • Operating Temperature: 14° - 122°F (-10° - 50°C)
    • Running Current (no load): 100mA @6.0V, 120mA @7.4V
    • Stall Current (at locked): 1600mA @6.0V, 2000mA @7.4V
    • Idle Current: 6mA @4.8V, 6mA @6.0V
    • Wire Length: 250 ± 5mm
    • Output Gear Spline: 25 Tooth
    • Bearings: 2BB
    • Operating Travel: 110° (1000 → 2000 µ second)
    • Neutral Position: 1500 µ second
    • Pulse Width Range: 800 → 2200 µ second
    • Maximum Travel: Appx 154° (800 → 2200 µ second)
    • Refresh Rate: 333 Hz
    • Motor Type: Coreless
