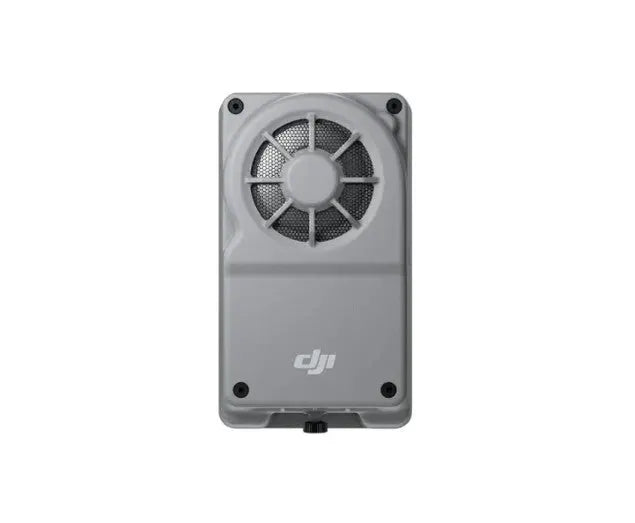

DJI Manifold 3

DJI Manifold 3

Manifold 3 harness the next generation of aerial intelligence. The Manifold 3 integrates a colossal 100 TOPS of computing power into a featherlight unit, designed to elevate the capabilities of your advanced drone platforms. It's not just an upgrade; it's a transformation of what's possible in energy inspection, public safety, and beyond.

Lightweight but Powerful

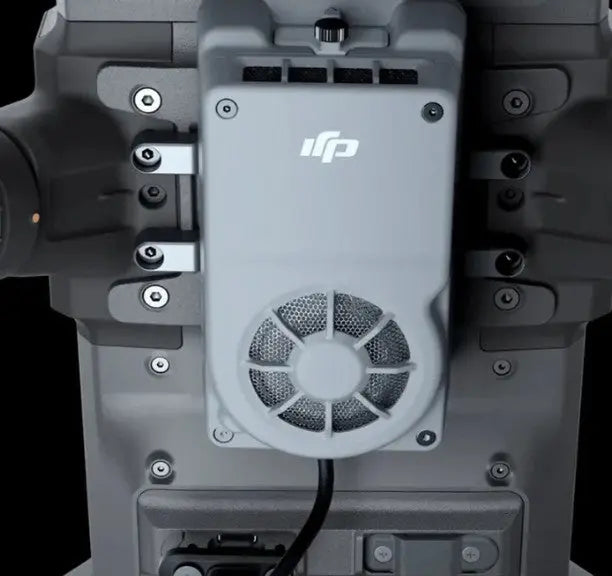

The Manifold 3 packs its immense computing power, driven by cutting-edge GPU and DLA components, into a compact frame weighing only about 120 g. When mounted on a drone, its minimal footprint ensures that flight time and agility are virtually unaffected, allowing you to deploy sophisticated AI and machine learning models in the field.

Robust Adaptability

Manifold 3 is built to endure. With an IP55 rating, it is protected against dust and water ingress, ensuring reliable operation in challenging conditions. Its exceptional thermal design allows it to function flawlessly in temperatures ranging from a frigid -20°C to a sweltering 50°C, maintaining a steady 25W output even in 40°C environments.

Full PSDK Support

Compatible with PSDK V3, the Manifold 3 gains seamless access to the drone's full suite of sensor data. Native hardware codec support enables rapid video stream processing and highly efficient payload and flight control.

Revolutionary Software Features

Forget command lines and complex dependencies. Developers can now locally install and upgrade third-party apps through DJI Pilot 2—as easily as on a smartphone. PSDK also enables onboard 4G networking for low-latency connectivity and allows developers to access LiDAR point cloud data to create immersive AR overlays in the Pilot 2 app.

Effortless Expandability

The onboard USB-C 3.0 port supports Power Delivery (PD) and allows for easy connection to a host of external devices, including USB drives, network interface cards (NICs), and specialized sensors.

• High computing power: Up to 100 TOPS of computing power. Manifold 3 utilises components like GPU and DLA to perform and accelerate algorithm models.

• Compatibility: Deploy with DJI Matrice 400, DJI Matrice 4 Series, and DJI Matrice 4D Series (DJI FlightHub 2 required when used with M4D Series). Manifold accessory kits (available separately) are required for integration.

• Lightweight: Manifold 3 weighs 120g. Wehn integrated with a drone, its small footprint ensures minimal impact on flight time.

• Weather-resistant: Manifold 3 is IP55-rated. Depoy in temperatures from -20°C to 50°C

• Cooling performance: Supports operation at 25W, even in temperatures of 40° C.


• Product Name: Manifold 3
• Weight: 120±5 g
• Dimensions: 98×57×36 mm (L×W×H)
• Rated Power: 33 W
• Supported Models: DJI Matrice 400, Matrice 4 Series, Matrice 4D Series
• Processor: NVIDIA Jetson Orin NX (ARM Cortex-A78AE 64-bit)
• RAM: 16 GB LPDDR5
• Internal Storage: 256 GB SSD
• Computing Power: Up to 100 TOPS (INT8 precision, sparse model)
• E-Port Interface: Supports DJI Matrice 400 E-Port V2 (E1, E2, E3; E3 recommended)
• USB-C Interface: USB 3.2 Gen 1, up to 5 Gbps
• Operating Temperature: -20° to 50°C (-4° to 122°F)
• Storage Temperature: -20° to 60°C (-4° to 140°F)
• Ingress Protection Rating: IP55 (under controlled conditions)
• Power Supply (E-Port): 24V input via Matrice 400 E-Port V2
• USB Power Delivery: PD protocol supported via USB-C
