DYS G-Power D3536 Brushless Outrunner Motor DYS
DYS G-Power D3536 Brushless Outrunner Motor DYS
DYS G-Power D3536 Brushless Outrunner Motor DYS

DYS G-Power D3536 Brushless Outrunner Motor

DYS
Sale price$28.99
In stock
KV option:: 910kv
Description

DYS G-Power Series D3536 brushless motor, available in 910KV/1000KV/1250KV/1450KV options. Select desired KV option from drop down menu above.

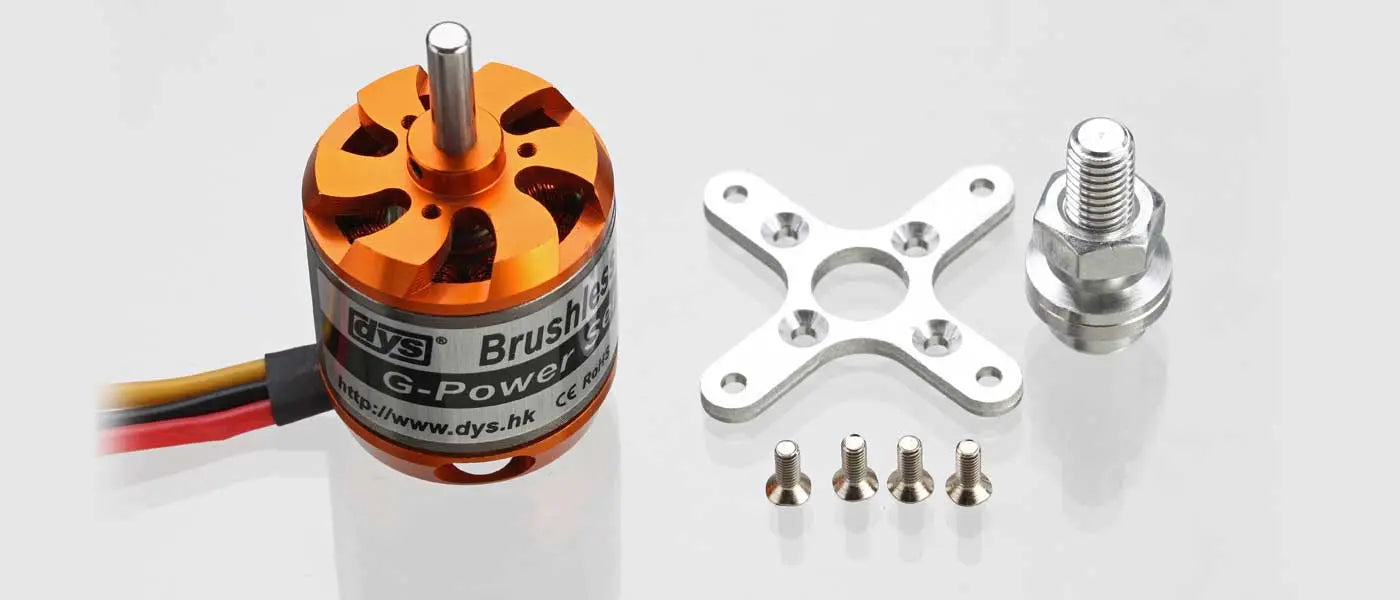

Includes X-Mount and collet-style prop adapter.

Specifications:

  • KV: 1450KV/1250KV/1000KV/910KV
  • Pull: 1380g/1270g/1160g/1050g
  • Max power: 655W/496W/432W/370W
  • Prop: see chart linked below
  • Motor size(mm): Ф35*36mm
  • Battery: 2-4s Lipo
  • Motor shaft size: 5.0mm x 53.5mm
  • Pre-soldered with 3.5mm male gold bullet connectors
  • Weight (weighed in house): 101g (motor only) / 121g (w/ hardware)

Click here to see a PDF with full specifications, prop data, and technical diagram

DYS G-Power Series D3536 brushless motor, available in 910KV/1000KV/1250KV/1450KV options. Select desired KV option from drop down menu above.

Includes X-Mount and collet-style prop adapter.

Specifications:

  • KV: 1450KV/1250KV/1000KV/910KV
  • Pull: 1380g/1270g/1160g/1050g
  • Max power: 655W/496W/432W/370W
  • Prop: see chart linked below
  • Motor size(mm): Ф35*36mm
  • Battery: 2-4s Lipo
  • Motor shaft size: 5.0mm x 53.5mm
  • Pre-soldered with 3.5mm male gold bullet connectors
  • Weight (weighed in house): 101g (motor only) / 121g (w/ hardware)

Click here to see a PDF with full specifications, prop data, and technical diagram

You may also like

  • 5 stars: 1 (100%)
  • 4 stars: 0 (0%)
  • 3 stars: 0 (0%)
  • 2 stars: 0 (0%)
  • 1 star: 0 (0%)
T
Traves B. (Waleska, US)

Great product! Very friendly customer service!
Ordered two motors delivered quickly they are in Colorado I’m in Tennessee already installed them in my planes just waiting to have a time to fly

K
Kalev T.

What PWM frequency you recommend DYS D3536-5 KV 1450 motor i bought from Hobby King some time ago and now starting to build a drone?
I am using Arduino Giga R1 microcontroller and to change frequency i need to change some parameters in internal Timer of microcontroller.
Is 50 Khz ok or 80 or even higher?

Altitude Hobbies

I contacted DYS and they advised the PWM frequency of DYS D3536-5 1450kv is 169Hz/V. Hope that helps
