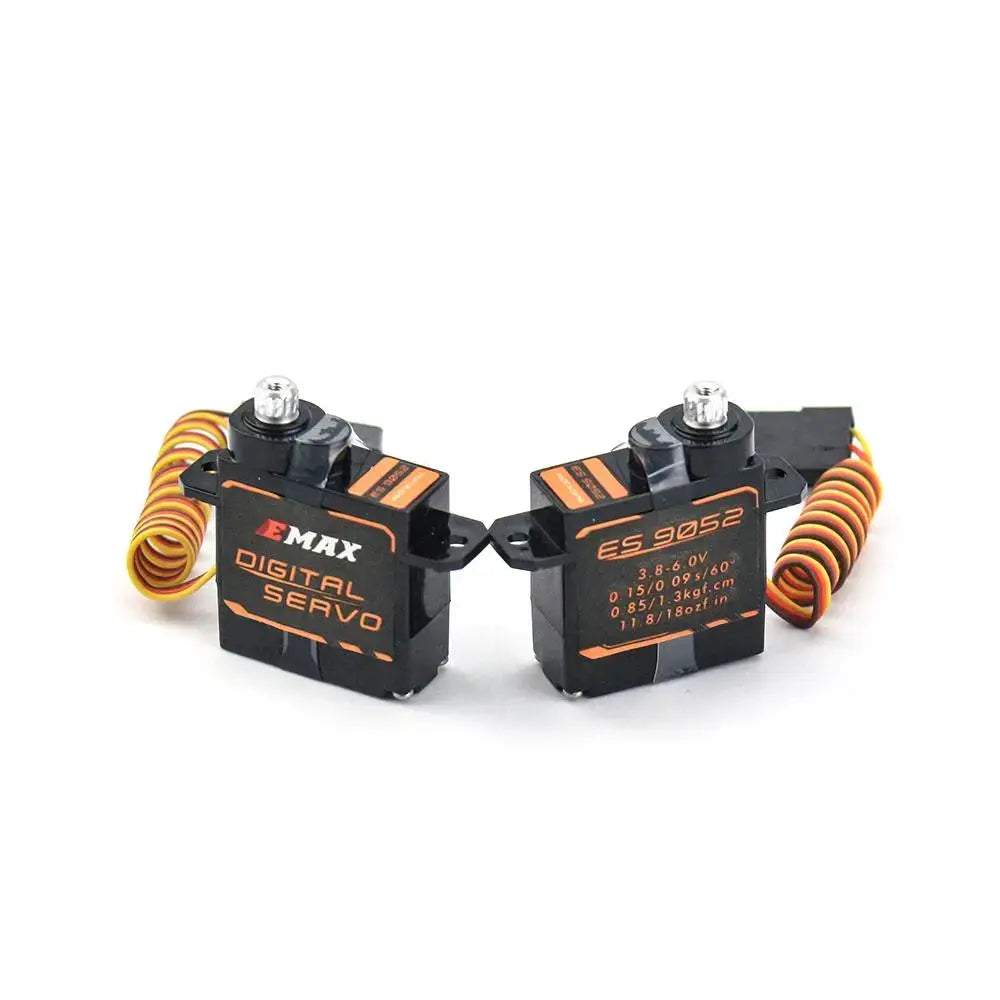

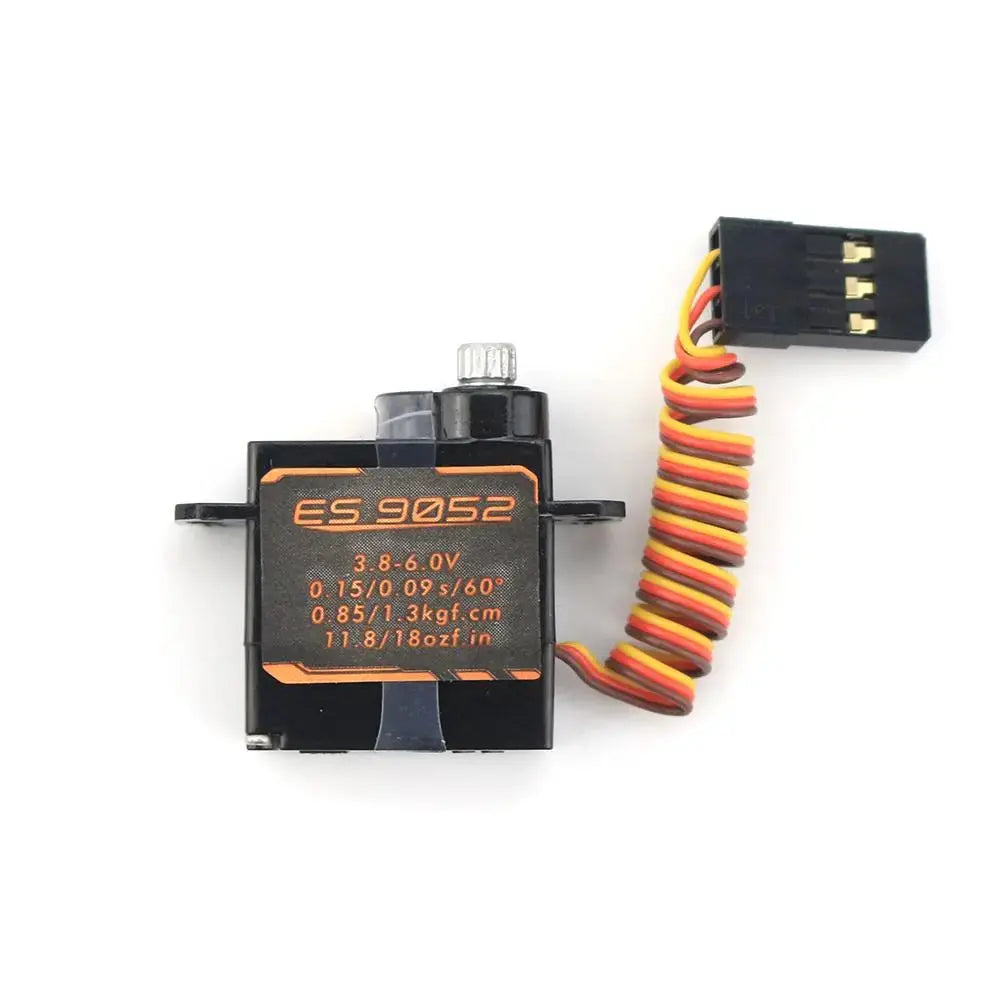

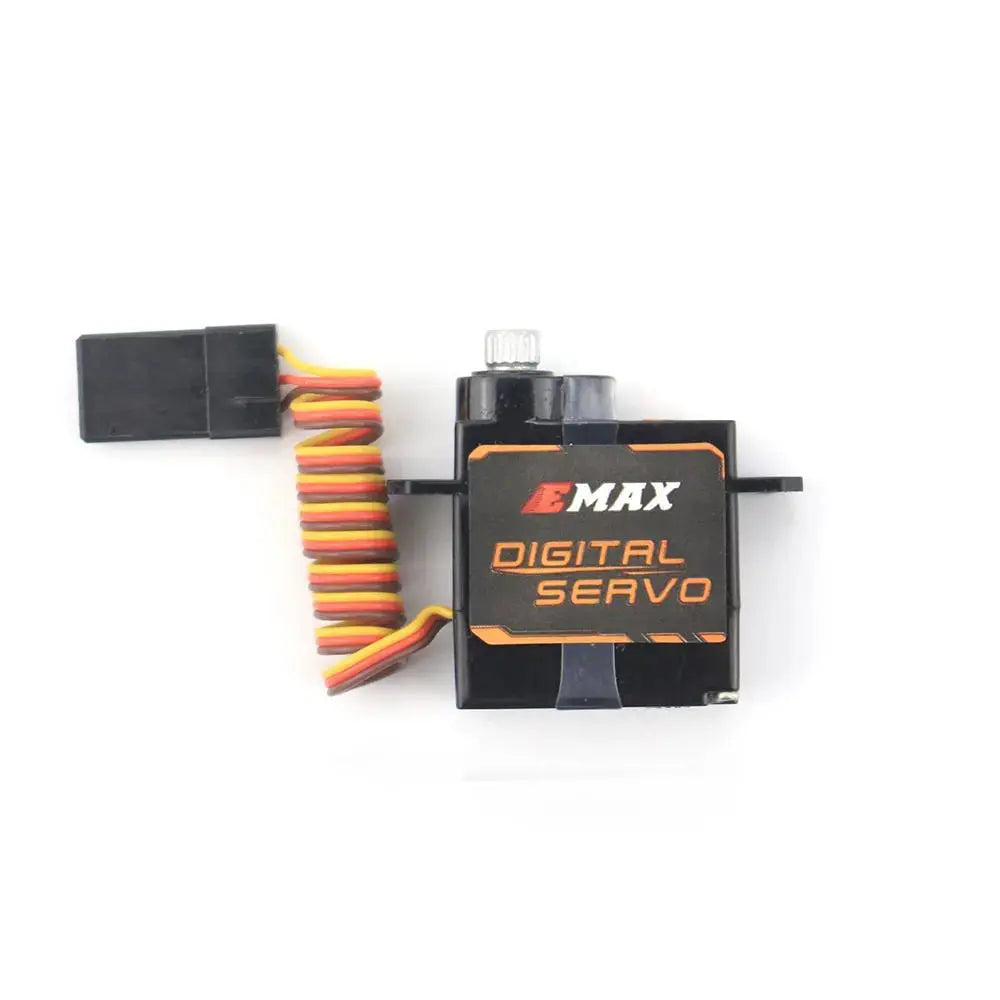

EMAX ES9052MD (5.5g) Coreless Metal Gear Digital Servo

Operating speed (at no load):

• 0.15 sec/60 degrees @ 3.8V
• 0.11 sec/60 degrees @ 5.0V
• 0.09 sec/60 degrees @ 6.0V

Running current:

• 80mA Max @ 3.8V
• 100mA Max @ 5.0V
• 120mA Max @ 6.0V

Stall torque:

• 0.85 kg/cm (11.8 oz/in) max @ 3.8V
• 1.1 kg/cm (15.3 oz/in) max @ 5.0V
• 1.3 kg/cm (18.0 oz/in) max @ 6.0V

Maximum current:

• 0.45A Max @ 3.8V
• 0.60A Max @ 5.0V
• 0.70A Max @ 6.0V

Idle current:

• 2.2mA @ all voltages

Physical specifications:

• Dimensions: 0.79x0.35x0.91 in
• Weight: 5.5g +/- 0.5g
• Connector type: JR
• Connector wire length: 180mm +/- 8mm
• Flower head: 15T
• Bearing: no
• Gear type: metal
• Extreme angle: 360 degrees
• Control system: PWM
• Operating travel: 90 degrees +/- 8 degrees (when 1000-2000 μ sec)
• Neutral position: 1500 μ sec
• Rotating direction: counter clockwise / pulse traveling 1500-1900 μ sec
• Pulse width range: 600-2400 μ sec
• Maximum travel: 160 degrees +/- 10 degrees (600-2400 μ sec)
• Storage temperature range: -20 degrees C – 60 degrees C
• Operating temperature range: -10 degrees C – 50 degrees C
