Freefly Astro Max Mapping Bundle: Turnkey Precision Drone Survey Kit
The Freefly Astro Max Mapping Bundle is a complete, professional-grade aerial mapping system built for accuracy, endurance, and efficiency. It combines the Freefly Astro Max aircraft, Sony ILX-LR1 61 MP camera with Sigma 24 mm f/3.5 lens, Freefly gimbal, Pilot Pro Controller with tablet, six SL8-Air batteries, and a full charging and spare-parts suite. The Astro Max aircraft in this bundle is not NDAA approved, though an NDAA/Blue version of the Freefly Astro Max is also available separately. The Sony ILX-LR1 payload included here is NDAA and DIU approved, providing flexibility for a wide range of survey projects.
Precision Imaging Meets Proven Engineering
The Astro Max is Freefly’s most advanced compact industrial platform, built with open interface specifications that allow flexible payload integration. It ships ready to fly with the Astro Isolator, folding landing gear, and high-efficiency 2270 propellers for stable performance. The Sony ILX-LR1 full-frame 61 MP camera and Sigma 24 mm lens deliver crisp, low-distortion imagery ideal for mapping. RTK compatibility through a user-supplied ground-station computer enables centimeter-level positioning for survey accuracy.
Field Efficiency and Complete Readiness
This bundle ensures maximum uptime in the field. Six SL8-Air batteries and four SL8 Fast Chargers support continuous mission cycles, while the included SL8 Travel Case keeps the power system organized for transport. The Pilot Pro Controller, pre-installed with a Samsung Galaxy Active5 tablet and Herelink 1.1 radio, provides a durable, ready-to-fly control solution. A spare-parts kit, prop protectors, and replacement props ensure long-term reliability. Standard Remote ID is enabled for FAA compliance.
Key Features and Benefits
- Complete mapping bundle: aircraft, camera, controller, power system, and spares
- Astro Max aircraft: compact, industrial-grade platform with open interface specs
- Aircraft not NDAA approved; NDAA/Blue version available separately
- Sony ILX-LR1 61 MP camera: full-frame clarity for detailed aerial imagery
- Sigma 24 mm f/3.5 lens: optimized for distortion-free mapping capture
- Freefly Gimbal: quick-detach, vibration-isolated mount for smooth imaging
- Pilot Pro Controller: integrated Galaxy Active5 tablet and Herelink 1.1 radio
- Six SL8-Air batteries: three flight sets for extended operations
- Four SL8 Fast Chargers: parallel charging for rapid turnaround
- RTK ready: works with user-supplied ground-station computer
- Standard Remote ID enabled for U.S. operations
- 2270 high-efficiency props: about 10% longer flight times per charge
- Spare Parts Kit and Travel Case: support field maintenance and logistics
Compatibility and Integration
- Works with Freefly Pilot Pro Controller and included Herelink radio
- Supports RTK GPS Ground Station via user-supplied computer
- Outputs geotagged imagery compatible with major mapping software
- LTE modem compatibility (U.S. only) for network connectivity
- Uses Freefly SL8-Air batteries and SL8 Fast Chargers
Applications and Use Cases
- Survey and topographic mapping: collect high-resolution terrain data
- Construction monitoring: document progress and volumetric changes
- Asset inspection: capture infrastructure imagery with precision
- Urban planning: produce orthomosaics and digital site models
- Mining and stockpile surveys: support accurate 3D volume analysis
- Environmental assessment: monitor vegetation or erosion patterns
- Agricultural mapping: generate field imagery for resource planning
- Disaster response: perform quick aerial documentation of sites
- Research and education: gather repeatable geospatial datasets
Built for Professional Mapping Efficiency
The Astro Max Mapping Bundle is engineered for professional teams who require dependable performance in demanding conditions. Every component—from the Pilot Pro Controller to the SL8 power system—is optimized for precision workflows, rapid deployment, and efficient data capture. Its rugged design and complete accessory set make it a ready-to-fly solution for professional mapping and survey missions.
Every component of this bundle is hand-selected for performance, compatibility, and reliability. From flight endurance to image clarity, it provides everything a mapping professional needs to achieve consistent results across missions.

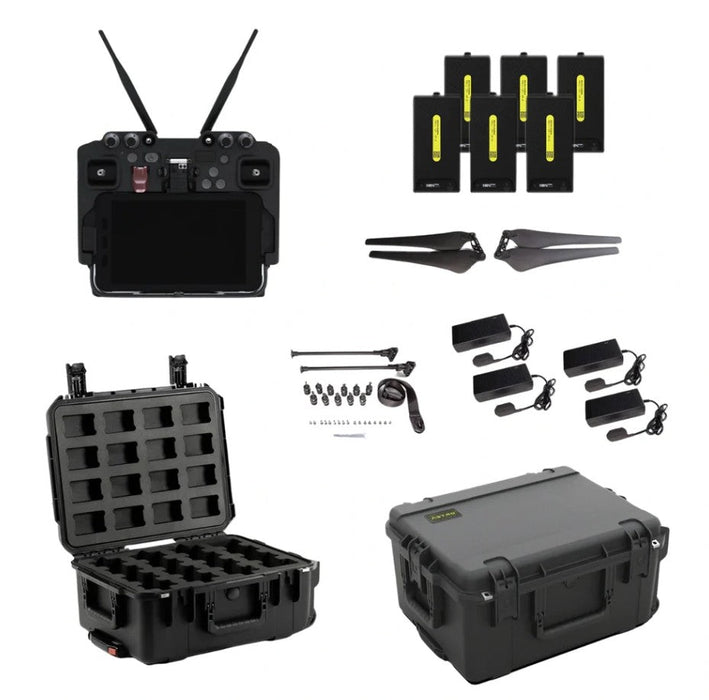

1x Astro drone (with pre-installed landing gear, high efficiency props, and Astro Isolator)
1x Astro compact travel case
1x LR1 payload
1x Freefly gimbal
1x Sony ILX-LR1 61MP camera body
1x Sigma 24mm f3.5 mapping lens (p/n 404965)
1x USB-C thumb drive
1x Foam insert set for Astro travel case
1x each hex driver (1.5 mm, 2 mm, 2.5 mm)
4x Proptectors
1x Extra Proptector
4x Spare isolators
2x Rubber hole grommet
1x Pilot Pro controller
1x 8" Samsung Galaxy Tablet Active5 (pre-configured and installed into controller)
1x Herelink 1.1 RF, 2.4 GHz radio (not NDAA approved)
1x Custom padded neck strap
6x SL8-Air batteries (3 pairs)
4x SL8 fast chargers
1x SL8 travel case
1x Astro Max replacement props (2270 high efficiency, set with CW & CCW)
1x Astro spare parts kit

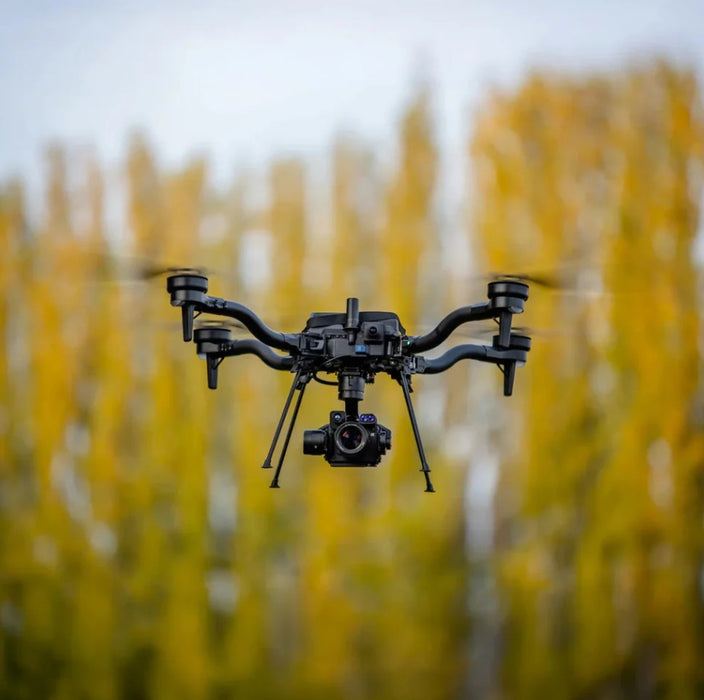

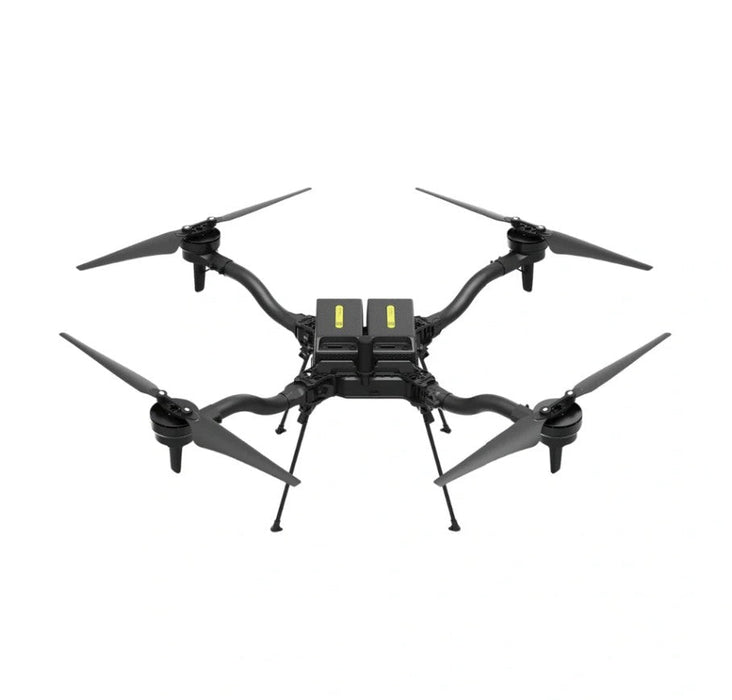

Astro Max Aircraft
Up to 43 minutes max flight time
31 minutes flight time with LR1 Payload
20 minutes flight time with maximum 3 kg payload
Maximum payload capacity: 3 kg
Booms fold to half the aircraft's diameter
Alternate payload attachments: Integrator Vibration Isolator, Smart Dovetail Kit
Designed and assembled in the USA

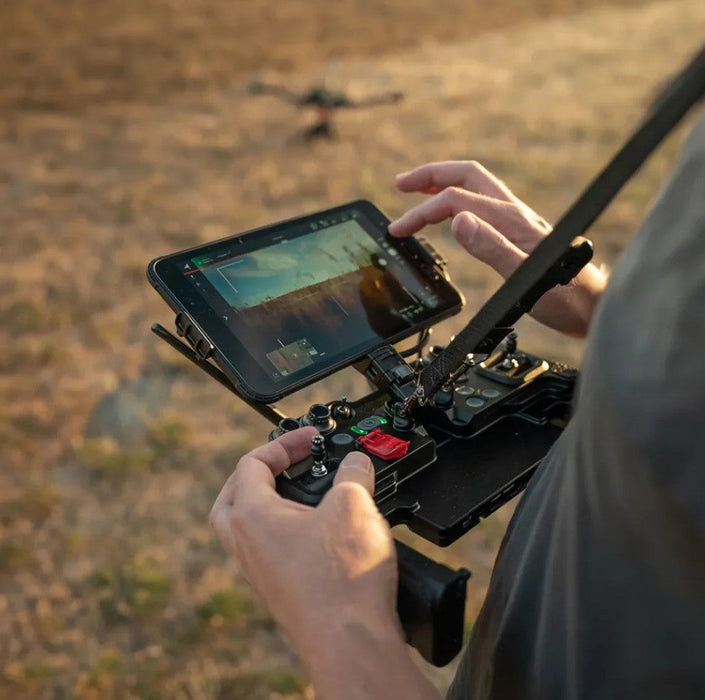

Pilot Pro Controller
Freefly Pilot Pro controller with high-resolution rockers for precise gimbal control
Modular controller accepts various radio transmitters
Ships with Herelink 1.1 Radio, 2.4 GHz (not NDAA compliant)
Internal battery with external power input for hot-swapping
Emergency kill-switch included
Discreet physical buttons for all key user actions
Includes pre-installed 8" Samsung Galaxy Tab Active5 tablet
Real-time drone and gimbal speed limit control
Includes padded custom neck strap
LR1 Payload
Includes Freefly Mapping Gimbal
Sony ILX-LR1 camera body with 61 MP resolution
Sigma 24mm f/3.5 mapping lens (p/n 404965)
Camera and gimbal controllable via Pilot Pro

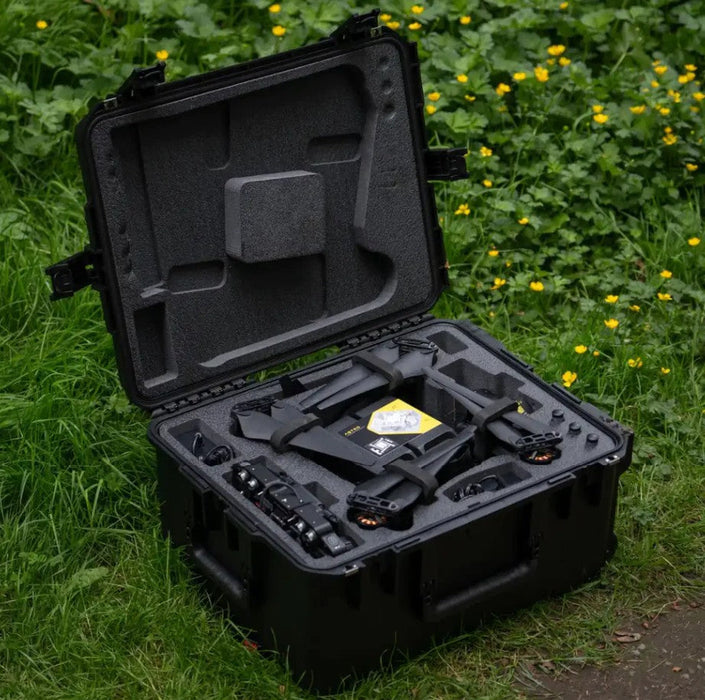

Astro Compact Travel Case
Holds full Astro Max mapping or inspection setup
Fits Astro with 2 SL8 batteries installed and legs folded
Fits Pilot Pro, LR1 payload, 2 SL8 chargers, spare props, and tools
Custom-cut foam protects from 1-meter drops
Waterproof and dust tight (MIL-STD 810G)
Airline checkable SKB Rolling Case (3i-2217-10)
Dimensions: 24.52" × 19.5" × 12.22" / 62.28 × 49.53 × 31.04 cm
Weight (as shipped, no SL8s): 38.30 lbs / 17.37 kg
Weight (full kit with 2 SL8s): 42.80 lbs / 19.41 kg
SL8-Air Batteries
Two SL8-Air batteries required per flight
Voltage: 21.6 V (6S)
Capacity: 7.3 Ah, 157 Wh
Weight: 2.25 lbs
Chemistry: Lithium-Ion
Auxiliary output: USB-C Power Delivery
SL8 Fast Charger
Charges one SL8-Air battery at a time
Charge time (0% to full): ~90 minutes
Input: 100–240 VAC
Output: 200 Watts
Includes NEMA 1-15 (Type A) North America power cable
Power cable is replaceable (IEC320 connector)
SL8 Travel Case
Holds 8 SL8 batteries and 2 chargers
Can hold 14 SL8 batteries without chargers
Includes casters and stowaway handle
Lockable, waterproof, and dust tight (MIL-STD 810H)
SKB case model: 3i-1914-8B-E
