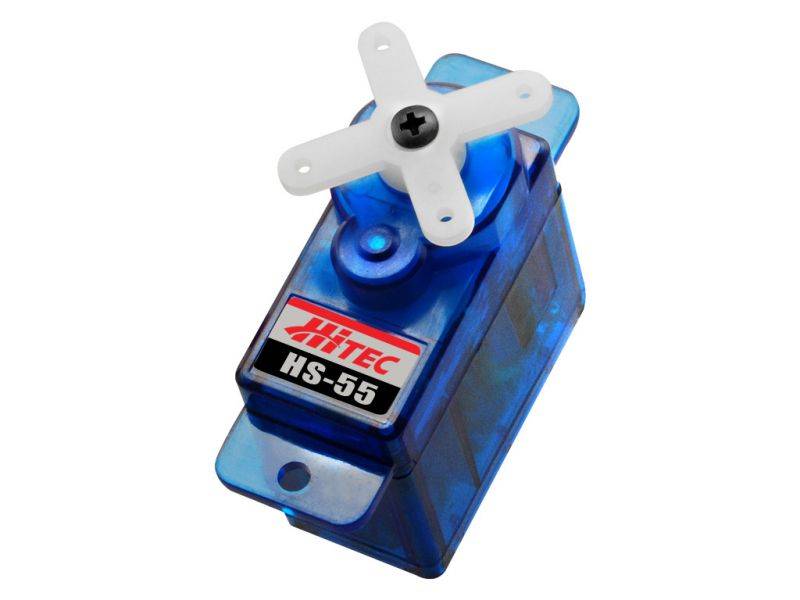

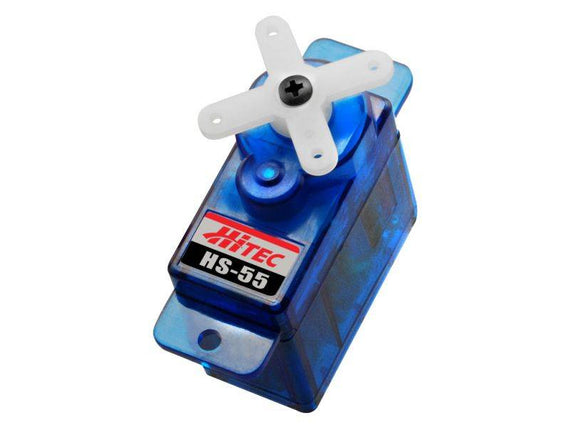

Hitec HS-55 Economy Feather Servo
The HS-55 set the standard for affordable performance, offering precision components that have been engineered to provide long lasting trouble free service! Featured in a hundred model aircraft reviews worldwide, the HS-55 is your best choice when it comes to controlling ”smaller” Electric’s and Park Flyers.
Features
- Affordable Performance
- Precision Components
- Strong, Long-Lasting Nylon Gears
- Market's Most Reliable Micro Servo
- Most Popular Servo
|
Performance Specifications |
|
|
Operating Voltage Range (Volts DC) |
4.8V ~ 6.0V |
|
Speed (Second @ 60°) |
0.17 ~ 0.14 |
|
Maximum Torque Range oz. / in. |
15 ~ 18 |
|
Maximum Torque Range kg. / cm. |
1.1 ~ 1.3 |
|
Current Draw at Idle |
5.5 mA |
|
No Load Operating Current Draw |
150 mA |
|
Stall Current Draw |
450 mA |
|
Dead Band Width |
8 µs |
|
Physical Specifications |
|
|

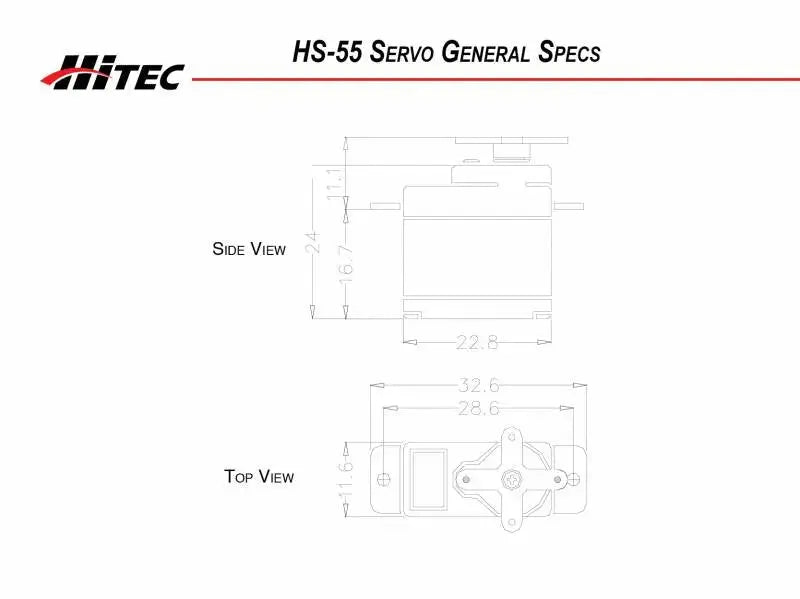

Dimensions (Inches) |
0.89 x 0.45 x 0.94 |
|
Dimensions (Metric) |
22.8 x 11.6 x 24.0 |
|

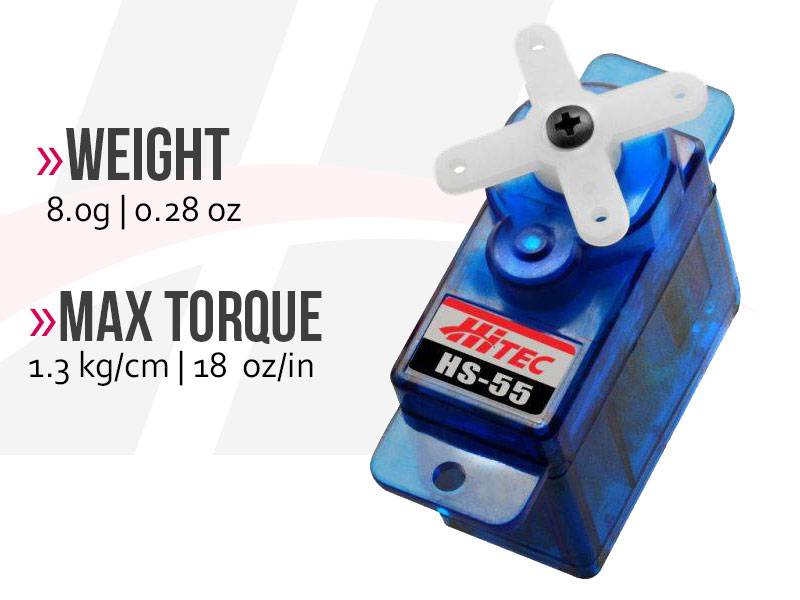

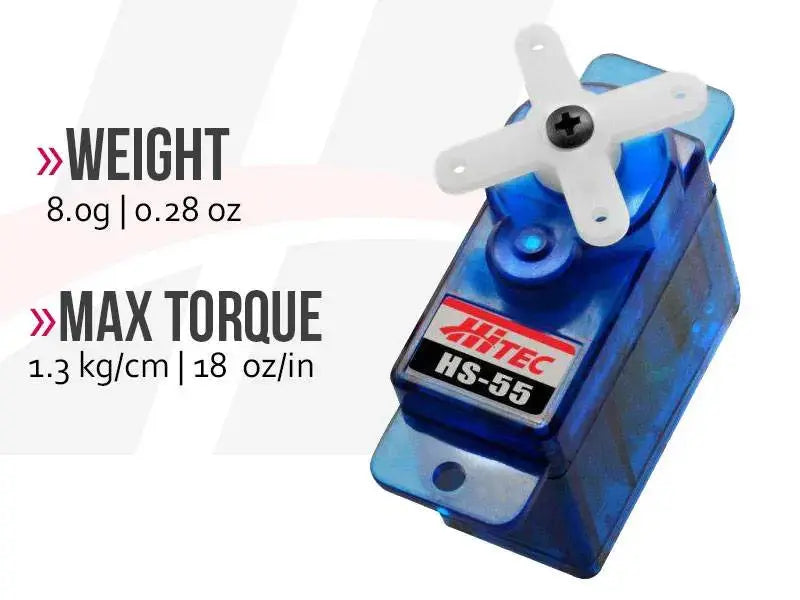

Weight (Ounces) |
0.28 |
|
Weight (Gram) |
8.0 |
|
Circuit Type |
HT7003 Analog SMT |
|
Motor Type |
Coreless Metal Brush |
|
Gear Material |
Nylon |
|
Bearing Type |
None |
|
Output Shaft (type / Ømm) |
Feather 15 / 8 |
|
Case Material |
Plastic |
|
Dust / Water Resistance |
N / A |
|
Connector Gauge (AWG) / Strand Count |
28 / 20 |
|
Radio Control Applications |
|
|
Parkflyer |
< 36 oz. |
|
Sport Plane |
20 - 35 oz. |
|
Sailplane |
< 2 meter / DLG |
|
3D Performance |
Foamie |
|
Scale |
N / A |
|
Electric Helicopter |
200mm |
|
Gas Helicopter |
N / A |
|
On Road |
N / A |
|
Monster Truck |
N / A |
|
Buggies |
N / A |
|
Truggies |
N / A |
|
Short Course / Truck |
1/8th |
|
Crawlers |
N / A |
|
Sail Boat |
N / A |
|
Power Boat |
1/8th |
