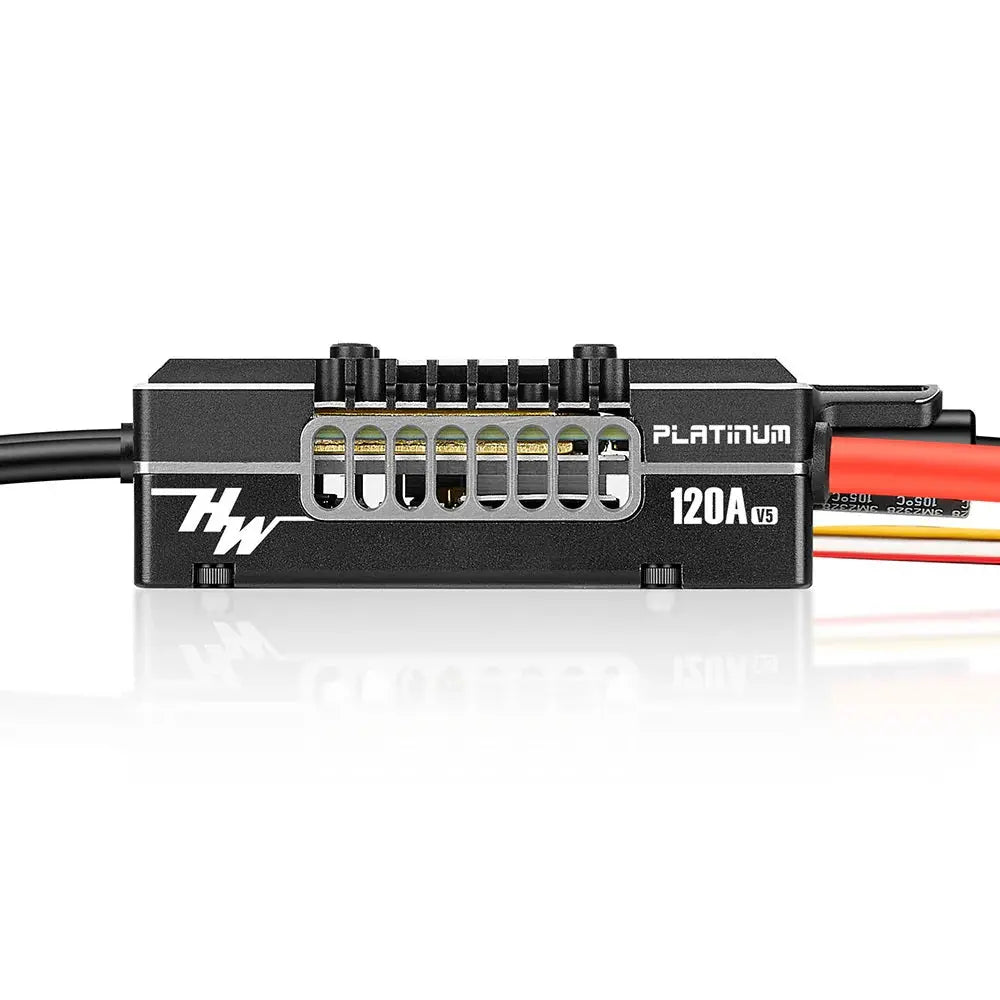

HobbyWing Platinum Pro V5 Series 120A ESC (3-8s)
Description
Features:
- Synchronous Rectification Technology with multiple advantages
- The Platinum V5 Series features a new double-sided heat sink with additional "side windows" for better cooling.
- Multiple protections, Extra Safety: It has multiple protection functions, to effectively prolonging the lifespan of the ESC.
- Built-in 12V Switch BEC for greater output capability: With an instantaneous high current and a built-in 12V programmable BEC, the maximum output voltage is 12V (adjustable from 5-12V) and the maximum output current is up to 35A. The high-power BEC features an anti-reverse circuit, allowing it to be used in parallel with external batteries, providing double protection.
-
Constant Speed Performance Upgrade, Ultimate Flight Experience; The 32-bit processor combined with the RPM accuracy algorithm makes the ESC more powerful and consistent, maximizing RPM accuracy to enhance overall performance. Compared with the previous ESC, the RPM accuracy algorithm significantly improves power and consistency. The adjustable constant speed sensitivity allows every pilot to easily find a setting that suits their flying style.
Specs:
- Continuous/peak current: 120A/150A
- Input voltage: 3-8s lipo
- SBEC: Switch Mode BEC; output voltage 5-12V adjustable (adjusted 0.1V); output current cont. 8A, Peak 30A
- Input/output wires: 10AWG (battery side) / 12AWG (motor side)
- Independent parameter programming interface: LCD program box or OTA module, or to power cooling fan
- LED light: displays the status and fault alerts
- Size: 83.2 x 37.1 x 22.5mm
- Weight: 150.4g
- Scope of application: 420-520 class electric helicopters or fixed wing
Specifications
In the box
Features:
- Synchronous Rectification Technology with multiple advantages
- The Platinum V5 Series features a new double-sided heat sink with additional "side windows" for better cooling.
- Multiple protections, Extra Safety: It has multiple protection functions, to effectively prolonging the lifespan of the ESC.
- Built-in 12V Switch BEC for greater output capability: With an instantaneous high current and a built-in 12V programmable BEC, the maximum output voltage is 12V (adjustable from 5-12V) and the maximum output current is up to 35A. The high-power BEC features an anti-reverse circuit, allowing it to be used in parallel with external batteries, providing double protection.
-
Constant Speed Performance Upgrade, Ultimate Flight Experience; The 32-bit processor combined with the RPM accuracy algorithm makes the ESC more powerful and consistent, maximizing RPM accuracy to enhance overall performance. Compared with the previous ESC, the RPM accuracy algorithm significantly improves power and consistency. The adjustable constant speed sensitivity allows every pilot to easily find a setting that suits their flying style.
Specs:
- Continuous/peak current: 120A/150A
- Input voltage: 3-8s lipo
- SBEC: Switch Mode BEC; output voltage 5-12V adjustable (adjusted 0.1V); output current cont. 8A, Peak 30A
- Input/output wires: 10AWG (battery side) / 12AWG (motor side)
- Independent parameter programming interface: LCD program box or OTA module, or to power cooling fan
- LED light: displays the status and fault alerts
- Size: 83.2 x 37.1 x 22.5mm
- Weight: 150.4g
- Scope of application: 420-520 class electric helicopters or fixed wing
