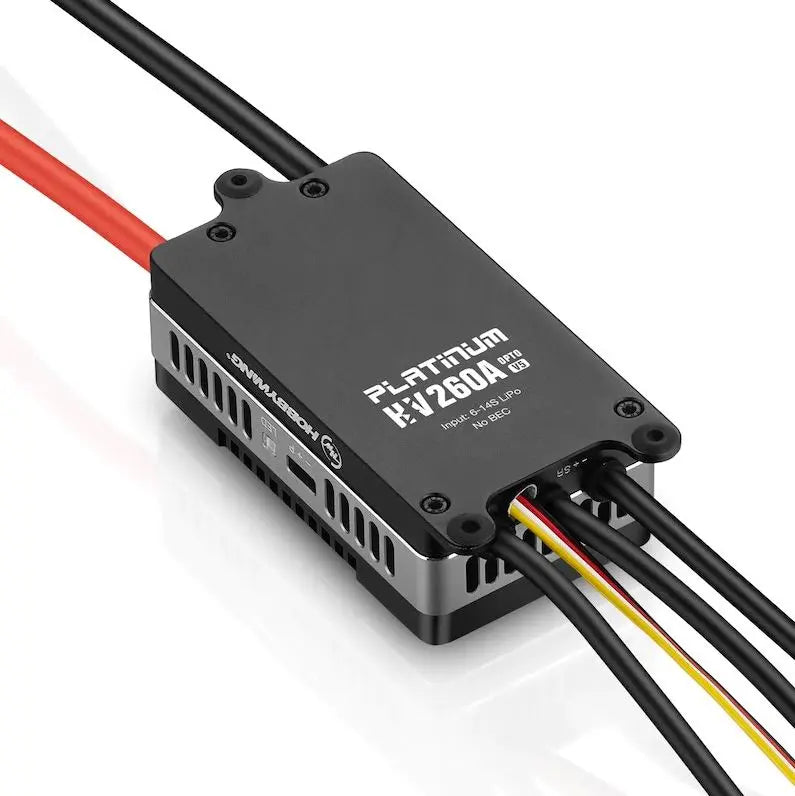

HobbyWing Platinum Pro V5 Series 260A OPTO HV ESC (6-14s)


HobbyWing

30203101

In Stock

Regular price $439.99

HW Platinum 260A HV V5 Brushless ESC (OPTO) (700-800 Heli)

Hobbywing Platinum 260A High Voltage V5 Brushless ESC (OPTO). Equipped synchronous rectifier drive efficiency optimization technology (DEO-Driving Efficiency Optimization) that makes the throttle response more linear and drives more efficiently! Four different flight modes, Fixed-wing mode, Helicopter external speed-setting mode, Helicopter elf-speed mode and Helicopter storage fixed-speed mode for an extremely convenient and enjoyable experience! while the helicopter speed-control function provides adjustable speed sensitivity and easy operation with more stable main rotor speed and excellent fixed speed, in the case of rapid load changes and the time selection function for stall landing that can be manually adjustable within the time set to avoid a crash due to handling errors!

In addition, the Platinum 260A HV V5 comes with an output interface to showcase the motor speed output in real time, a Flight data recording function that can record the minimum voltage, maximum temperature, maximum current and calibration speed (Requires OTA module - Sold Separately). When it comes to protection, Platinum 260A HV V5 is fitted with built-in multi-protection functions and anti-spark circuitry that effectively protect and prolong the lifespan of the ESC.

Features:

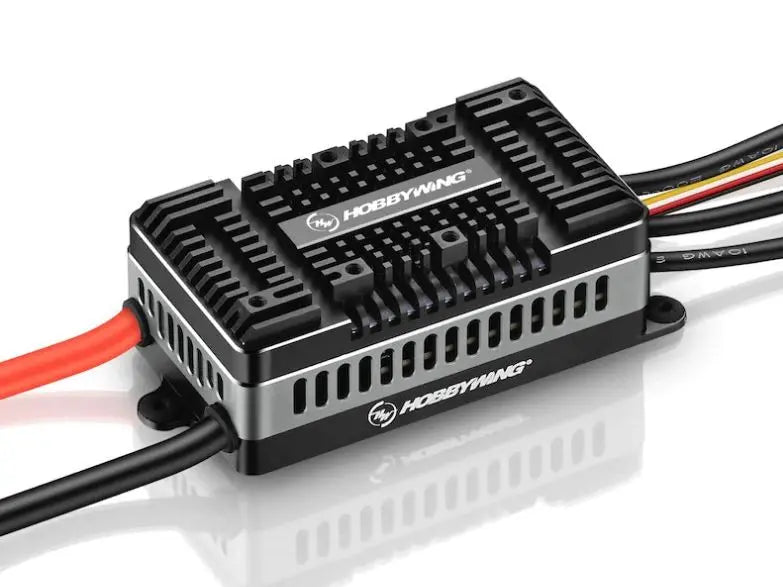

  • Double-sided cooling structure helps to further enhance the cooling efficiency on the ESC
  • Equipped with the synchronous rectifier drive efficiency optimization technology (DEO-Driving Efficiency Optimization) that makes the throttle response more linear, drives more efficiently and temperature efficient
  • Equipped with four flight modes, Fixed-wing mode, Helicopter external speed-setting mode, Helicopter elf-speed mode and Helicopter storage fixed-speed mode
  • Equipped with the helicopter speed-control function for adjustable speed sensitivity and easy operation with more stable main rotor speed and excellent fixed speed, in the case of rapid load changes
  • Equipped with the time selection function for stall landing that can be manually adjustable within the time set to avoid a crash due to handling errors
  • Equipped with LED indicators
  • Equipped with an output interface to showcase the motor speed output in real time
  • Equipped with a separate parameter setting interface which allows it to be connected to the LCD parameter set-up box or OTA module for parameter setting

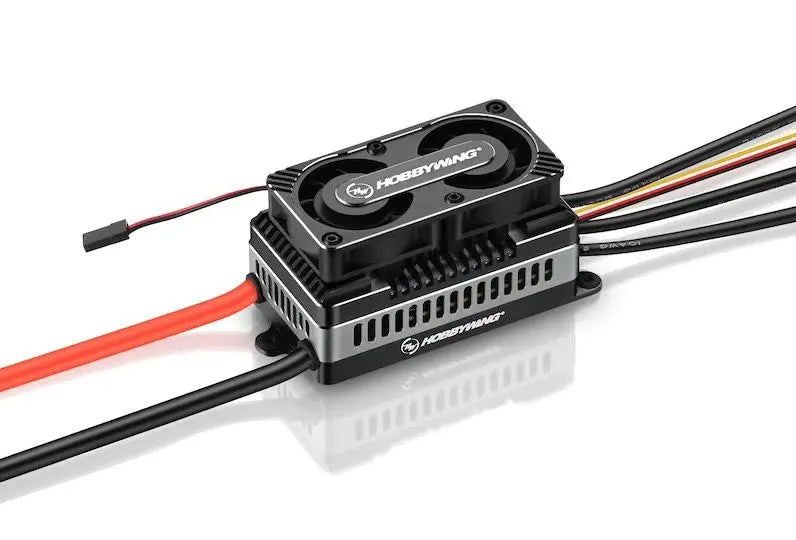

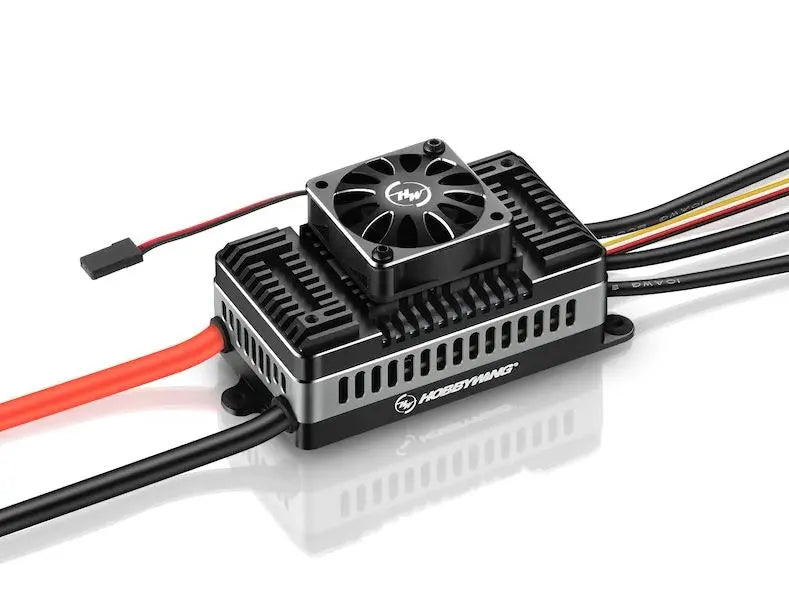

  • Double-fan mounting holes for maximum heat dissipation
  • Flight data recording function that can record the minimum voltage, maximum temperature, maximum current and calibration speed (Requires OTA module - Sold Separately)
  • OTA Bluetooth module supported for quick changes to the parameter settings, software upgrading, data recording and other operations can be completed via the HW APP
  • Built-in multiple protections that effectively extend the lifespan of the ESC

Specifications:

  • Application: 700-800 Class Electric Helicopter
  • Continuous/Instantaneous current: 260A / 400A
  • Input voltage: 6-14S LiPo battery
  • BEC: None - OPTO
  • The input/output wire: 8AWG (input) / 10AWG (output)
  • Independent parameter programming: Connect LCD program box or OTA module, or to power the optional cooling fan
  • Dimensions (LxWxH): 89x50x34mm
  • Weight: 297g
  • Mounting holes: 3mm, 39x98mm
