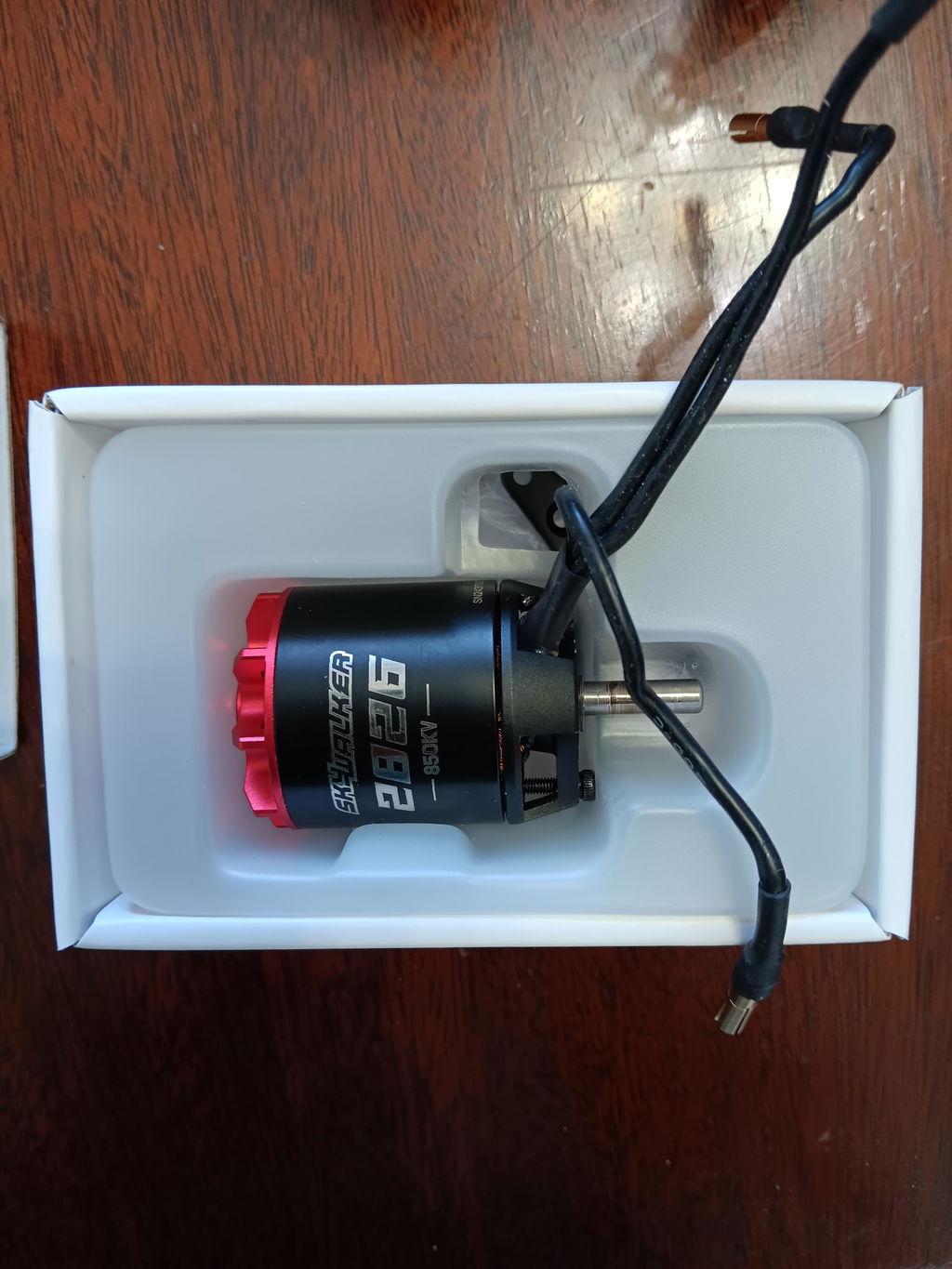

HobbyWing Skywalker 2826 SL Motor
Description
Select KV option from drop-down menu above.
RCGroups testing/review: https://www.rcgroups.com/forums/showthread.php?4570255-Hobbywing-Skywalker-2826SL-540Kv-G1
Features
- The 2814, 2820, and 2826 fixed wing motors are newly designed with a high maximum pulling force of 4785g (2826 540KV, 22.2V, 14x6E paddles). These motors are ideal for 800-2300g 3D stunt fixed wings, gliders, sports fixed wings, and other applications where a strong pulling force is needed.
- Utilizing a large hollow design and self-dissipating structure, the top cover effectively increases the motor's heat dissipation capacity, resulting in a longer lifespan for the motor.
- This motor features advanced production and assembly techniques, including high-quality bearings and precise CNC machining, resulting in a remarkably low rotor dynamic balance. The result is reduced motor vibration and a smoother, more stable operation.
- Top branded JNEH1200 silicon steel sheet, 0.2mm thick material, provides lower iron loss.N48 strong magnetic arc magnetic steel design provides maximum torque output for the motor.180 high temperature resistant enameled wire, enhances the high temperature resistance of the stator coil. Silicone wire outlet, which is softer and easier to route than the traditional straight outlet silicone wire.
2826-540kv Specs:
- Recommended battery: 6s lipo
- No load current: 1.58A/22.2V
- Max continuous current: 49.7A/1min
- Max continuous power: 1106.5W/1min
- Motor size: 35.1x66mm
- Shaft diameter: 5mm
- Clip mounting hole thread: 15mm-3*M2.5
- Base thread: 19mm-2*M3/25mm-2*M3
- Motor weight: 175.5g
- Recommended ESC: Skywalker V2 80A
- Propeller: 12x6E/13x6.5E/14x6E (6s)
Click here to download the 2826-540kv full data load performance chart
2826-850kv Specs:
- Recommended battery: 3-4s lipo
- No load current: 2.55A/14.8V
- Max continuous current: 69A/2min 11s
- Max continuous power: 1006.5W/1min 49s
- Motor size: 35.1x66mm
- Shaft diameter: 5mm
- Clip mounting hole thread: 15mm-3*M2.5
- Base thread: 19mm-2*M3/25mm-2*M3
- Motor weight: 175.5g
- Recommended ESC: Skywalker V2 80A
- Propeller: 12x6E/13x6.5E (4s) or 14x6E/15x6E/15x8E (3s)
Click here to download the 2826-850kv full data load performance chart
2826-1100kv Specs:
- Recommended battery: 3-4s lipo
- No load current: 3.7A/14.8V
- Max continuous current: 82.4A/2min 15s
- Max continuous power: 1218.9W/2min 15s
- Motor size: 35.1x66mm
- Shaft diameter: 5mm
- Clip mounting hole thread: 15mm-3*M2.5
- Base thread: 19mm-2*M3/25mm-2*M3
- Motor weight: 175.5g
- Recommended ESC: Skywalker V2 80A
- Propeller: 10x5E/11x5.5E (4s) or 11x5.5E/12x6E/13x6.5E (3s)
Click here to download the 2826-1100kv full data load performance chart
Specifications
In the box
Select KV option from drop-down menu above.
RCGroups testing/review: https://www.rcgroups.com/forums/showthread.php?4570255-Hobbywing-Skywalker-2826SL-540Kv-G1
Features
- The 2814, 2820, and 2826 fixed wing motors are newly designed with a high maximum pulling force of 4785g (2826 540KV, 22.2V, 14x6E paddles). These motors are ideal for 800-2300g 3D stunt fixed wings, gliders, sports fixed wings, and other applications where a strong pulling force is needed.
- Utilizing a large hollow design and self-dissipating structure, the top cover effectively increases the motor's heat dissipation capacity, resulting in a longer lifespan for the motor.
- This motor features advanced production and assembly techniques, including high-quality bearings and precise CNC machining, resulting in a remarkably low rotor dynamic balance. The result is reduced motor vibration and a smoother, more stable operation.
- Top branded JNEH1200 silicon steel sheet, 0.2mm thick material, provides lower iron loss.N48 strong magnetic arc magnetic steel design provides maximum torque output for the motor.180 high temperature resistant enameled wire, enhances the high temperature resistance of the stator coil. Silicone wire outlet, which is softer and easier to route than the traditional straight outlet silicone wire.
2826-540kv Specs:
- Recommended battery: 6s lipo
- No load current: 1.58A/22.2V
- Max continuous current: 49.7A/1min
- Max continuous power: 1106.5W/1min
- Motor size: 35.1x66mm
- Shaft diameter: 5mm
- Clip mounting hole thread: 15mm-3*M2.5
- Base thread: 19mm-2*M3/25mm-2*M3
- Motor weight: 175.5g
- Recommended ESC: Skywalker V2 80A
- Propeller: 12x6E/13x6.5E/14x6E (6s)
Click here to download the 2826-540kv full data load performance chart
2826-850kv Specs:
- Recommended battery: 3-4s lipo
- No load current: 2.55A/14.8V
- Max continuous current: 69A/2min 11s
- Max continuous power: 1006.5W/1min 49s
- Motor size: 35.1x66mm
- Shaft diameter: 5mm
- Clip mounting hole thread: 15mm-3*M2.5
- Base thread: 19mm-2*M3/25mm-2*M3
- Motor weight: 175.5g
- Recommended ESC: Skywalker V2 80A
- Propeller: 12x6E/13x6.5E (4s) or 14x6E/15x6E/15x8E (3s)
Click here to download the 2826-850kv full data load performance chart
2826-1100kv Specs:
- Recommended battery: 3-4s lipo
- No load current: 3.7A/14.8V
- Max continuous current: 82.4A/2min 15s
- Max continuous power: 1218.9W/2min 15s
- Motor size: 35.1x66mm
- Shaft diameter: 5mm
- Clip mounting hole thread: 15mm-3*M2.5
- Base thread: 19mm-2*M3/25mm-2*M3
- Motor weight: 175.5g
- Recommended ESC: Skywalker V2 80A
- Propeller: 10x5E/11x5.5E (4s) or 11x5.5E/12x6E/13x6.5E (3s)
Click here to download the 2826-1100kv full data load performance chart
It came broken, ot working and you refuse to fix or replace it. If you don't at least fix it then it will be the last time I order from your hobby shop.
Hello, William -- we are very sorry you received a faulty item with a factory defect out of the box. As we explained to you and as is clearly stated in our return policy, HobbyWing North America is one of the few brands we carry that handles their own warranty process. They do not allow dealers to take back items and return them for replacement. If we took the item back, we would have no way of getting it replaced ourselves. You need to contact HobbyWing via their website and request an RMA number. They will be able to fix or replace the item for you under warranty. We apologize for the inconvenience, and trust us, we would like to replace the item for you. Unfortunately, we have to follow manufacturer policies.
Do i need to buy an additional part in order to attach the propeller or it cam with all the prop fittings?
It comes with the prop adapter
