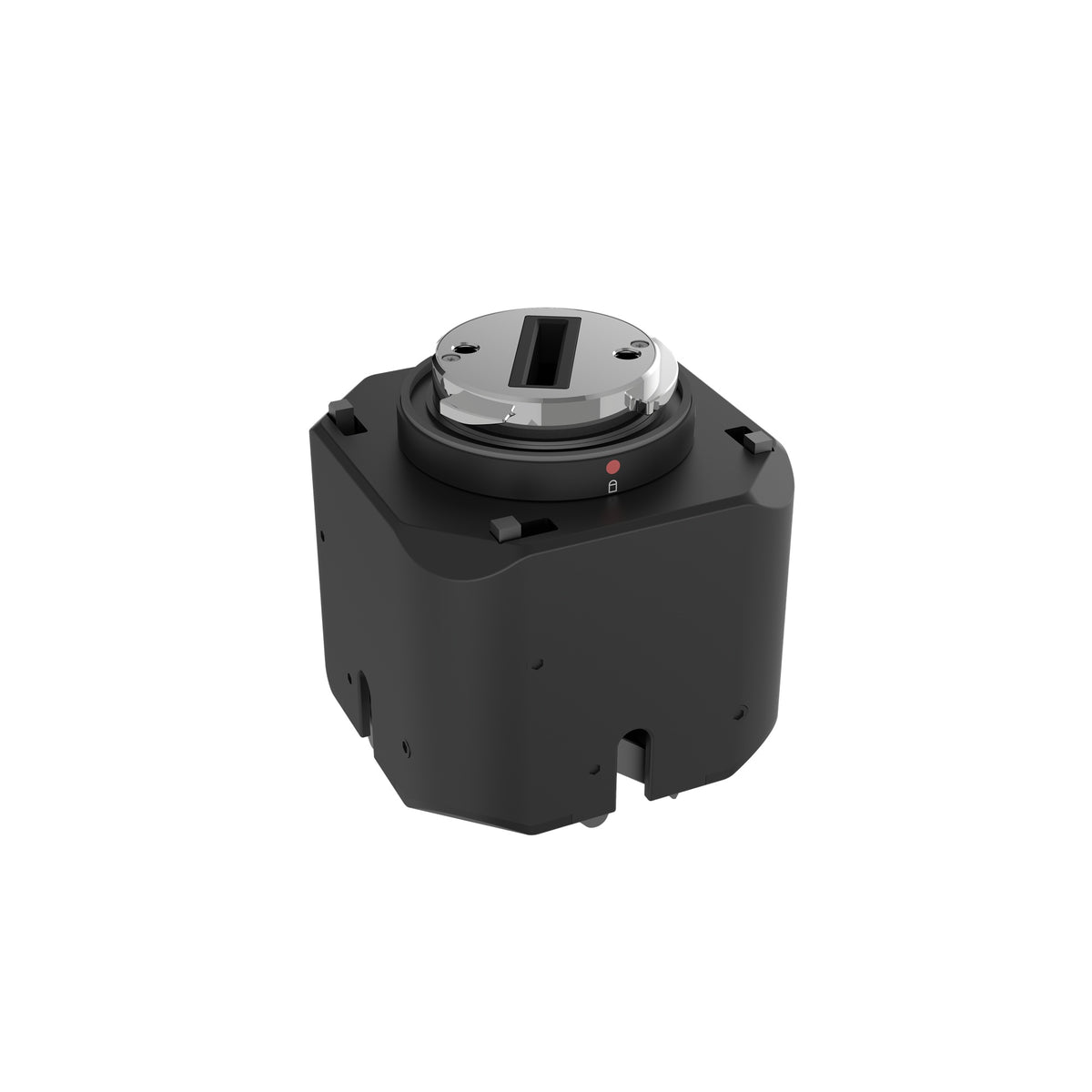

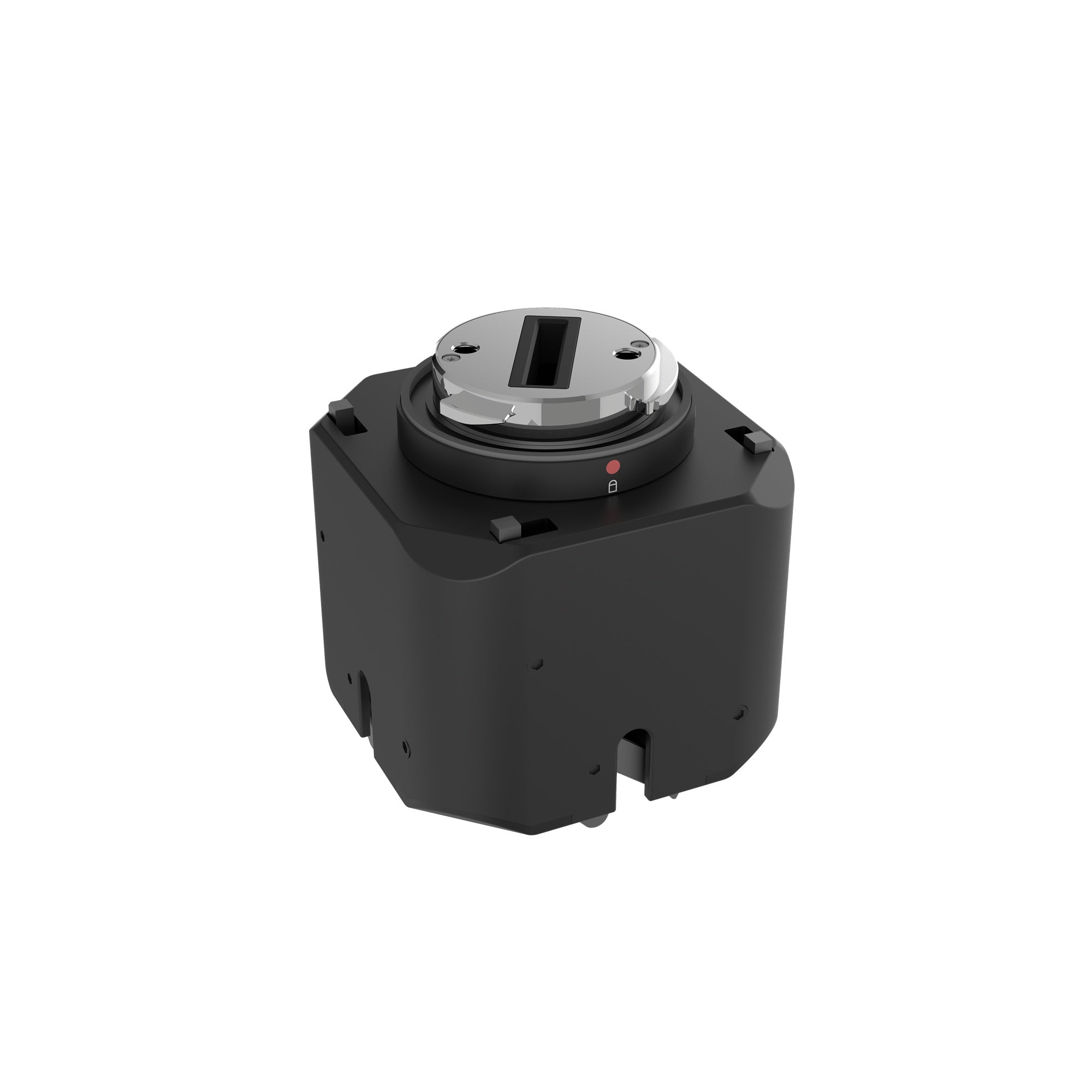

JZ ET4 Drop Kit with Laser Positioning for DJI Matrice 400

SKU: ET4
FREE Ground Shipping in the U.S.
This Item Ships FREE
Sale price$1,299.00
In stock
Description

JZ ET4 Four-Drop Airdrop System with Laser Targeting for DJI Matrice 400

The JZ ET4 Four-Drop Airdrop System is a professional aerial payload delivery solution designed specifically for the DJI Matrice 400 enterprise drone. Featuring four independently controlled payload release positions, a maximum single-hook payload capacity of 10kg (22 lbs), integrated laser-assisted targeting, and seamless DJI Pilot 2 integration, the JZ ET4 provides versatile aerial delivery capabilities for search and rescue, emergency response, public safety, industrial operations, and other demanding enterprise applications.

Engineered for direct integration with the DJI Matrice 400, the JZ ET4 connects through the aircraft's T-Port interface and utilizes DJI's Payload SDK (PSDK) communication system, eliminating the need for a separate remote control or wireless communication link. The system operates within the aircraft's video transmission range, allowing operators to remotely control payload releases through the existing DJI flight control system.

The ET4 features four independent payload mounting positions, each equipped with automatic load detection. Through DJI Pilot 2, operators can monitor the status of each mounting position in real time, select individual payloads for release in any sequence, or activate a one-touch release function for rapid deployment.

An integrated laser-assisted targeting system provides a visual reference for identifying intended drop locations, helping operators improve accuracy during aerial delivery operations.

Key Features

  • Four Independent Payload Release Positions: Supports up to four separately controlled airdrop hooks for multiple deliveries during a single flight.
  • 10kg Single-Hook Payload Capacity: Each hook supports a maximum rated payload of 10kg (22 lbs), subject to the DJI Matrice 400's actual aircraft payload limitations.
  • Designed for DJI Matrice 400: Specifically engineered for integration with the DJI Matrice 400 enterprise drone platform.
  • Direct DJI T-Port Connection: Connects directly to the aircraft's T-Port interface for convenient installation and operation.
  • DJI PSDK Integration: Uses the aircraft's Payload SDK communication system, eliminating the need for a separate remote controller or wireless link.
  • Aircraft-Matched Control Range: Remote operation is supported within the DJI Matrice 400's video transmission range.
  • DJI Pilot 2 Compatibility: Provides convenient control and real-time payload monitoring directly through the DJI Pilot 2 application.
  • Automatic Mounting Position Detection: Independently detects payload attachment status across all four mounting positions.
  • Real-Time Payload Status Monitoring: Displays the mounting status of each hook within DJI Pilot 2.
  • Independent Payload Release: Allows operators to release individual payloads in any desired sequence.
  • One-Touch Release Function: Supports rapid payload deployment through a convenient single-command operation.
  • Integrated Laser-Assisted Targeting: Built-in laser aiming system provides a visual reference to help identify intended payload drop locations.
  • Touchscreen and Physical Button Control: Supports both on-screen operation and compatible remote controller button inputs for efficient payload release.

Advanced Four-Position Airdrop System

Four Independent Payload Release Hooks

The JZ ET4 features four independently controlled payload mounting positions, allowing operators to carry and release multiple payloads during a single flight.

Unlike systems requiring payloads to be released in a predetermined order, the ET4 allows operators to select individual hooks and release payloads in any sequence. This flexibility makes it ideal for missions involving multiple delivery locations or different types of supplies.

High-Capacity 10kg Payload Support

Each ET4 hook supports a maximum rated payload capacity of 10kg (22 lbs), providing flexibility for transporting larger items and equipment.

Actual allowable payload weight depends on the DJI Matrice 400's aircraft payload capacity, installed accessories, flight configuration, and operating conditions. The 10kg rating represents the maximum capacity of an individual hook and does not increase the aircraft's overall lifting capability.

Automatic Payload Mounting Detection

The JZ ET4 incorporates intelligent mounting position detection across all four release hooks.

Operators can attach payloads to any available mounting position without following a specific loading order. The system automatically identifies occupied positions and displays their mounting status in real time through DJI Pilot 2.

This functionality simplifies payload preparation, reduces operator workload, and helps ensure that the correct mounting position is selected before release.

Independent and One-Touch Payload Release

The ET4 supports two convenient methods of payload deployment:

  • Independent Release: Select and activate individual payload hooks in any order for controlled, point-to-point delivery.
  • One-Touch Release: Execute a rapid release command for efficient deployment when multiple payloads need to be dropped together.

Both touchscreen controls and supported physical remote controller buttons provide convenient access to payload release functions during flight.

Integrated Laser-Assisted Targeting

The JZ ET4 features a built-in auxiliary laser designed to assist with identifying intended drop zones.

The laser provides a visual aiming reference, helping operators position the aircraft and evaluate the target area before initiating a payload release.

This feature is particularly useful for applications requiring careful payload placement, such as emergency supply delivery, search and rescue operations, and remote equipment deployment.

Direct DJI T-Port and PSDK Integration

The ET4 connects directly through the DJI Matrice 400's T-Port interface and communicates using DJI's Payload SDK (PSDK).

Unlike standalone drop systems that require a separate wireless controller, the ET4 operates through the drone's existing communication system.

This integrated design eliminates the need for an additional remote control link and allows the ET4's control range to correspond with the aircraft's video transmission capabilities.

Ideal Applications

The JZ ET4 Four-Drop Airdrop System is designed for professional drone operators who require flexible, remotely controlled aerial payload delivery.

  • Search and Rescue: Deliver emergency supplies, flotation devices, communication equipment, and other essential items to individuals in remote or inaccessible locations.
  • Fire and Emergency Response: Transport lightweight emergency equipment, supplies, and other approved payloads to personnel operating in difficult terrain.
  • Disaster Relief: Deliver multiple packages of essential supplies to locations affected by flooding, natural disasters, or damaged infrastructure.
  • Law Enforcement and Public Safety: Support emergency operations requiring controlled delivery of approved equipment or supplies.
  • Industrial Operations: Transport tools, components, and equipment to remote work locations or areas with limited ground access.
  • Remote Supply Delivery: Conduct multiple point-to-point deliveries during a single flight without requiring the aircraft to return for reloading after each drop.

Technical Specifications

Specification Details
Model JZ ET4
Product Type Four-Drop Aerial Payload Release System
Compatible Drone DJI Matrice 400
Payload Release Positions 4 Independent Hooks
Maximum Single-Hook Payload 10kg (22 lbs)
Aircraft Interface DJI T-Port
Communication Protocol DJI PSDK (Payload SDK)
Control Software DJI Pilot 2
Control Range Corresponds to Aircraft Video Transmission Range
Independent Payload Release Supported
Selectable Release Sequence Supported
One-Touch Release Supported
Automatic Mounting Detection Supported
Real-Time Payload Status Display Supported
Touchscreen Control Supported
Physical Button Control Supported
Laser-Assisted Targeting Built-In
Separate Remote Control Link Not Required

Compatibility Information

Compatible Drone:

  • DJI Matrice 400

The JZ ET4 is specifically developed for the DJI Matrice 400 enterprise drone and connects directly through the aircraft's T-Port interface.

DJI Pilot 2 Integration: Supports independent payload release, automatic mounting position detection, real-time hook status monitoring, and convenient control through the DJI Pilot 2 interface.

Important Payload Capacity Information:

Although the JZ ET4 features a maximum single-hook load rating of 10kg (22 lbs), the actual allowable payload weight is limited by the DJI Matrice 400's aircraft payload capacity.

Operators must account for the combined weight of the drop system, attached payloads, and any additional accessories when determining safe operating limits.

DJI Matrice 400 drone and payload items are not included unless otherwise specified.

Expand Your DJI Matrice 400's Aerial Delivery Capabilities

Equip your DJI Matrice 400 with the JZ ET4 Four-Drop Airdrop System for versatile, high-capacity aerial payload delivery.

Featuring four independently controlled release hooks, intelligent mounting position detection, integrated laser-assisted targeting, and seamless DJI Pilot 2 operation, the ET4 provides the flexibility and functionality required for demanding enterprise drone missions.

Whether delivering emergency supplies, transporting equipment to remote locations, or supporting search and rescue operations, the JZ ET4 offers a powerful way to expand the operational capabilities of your DJI Matrice 400.

Always verify aircraft payload limitations, accessory compatibility, and applicable regulations before conducting aerial drop operations. Laser-assisted targeting provides an aiming reference and does not guarantee an exact impact location; wind, altitude, aircraft movement, and payload characteristics can affect delivery accuracy.

JZ ET4 Four-Drop Airdrop System with Laser Targeting for DJI Matrice 400

The JZ ET4 Four-Drop Airdrop System is a professional aerial payload delivery solution designed specifically for the DJI Matrice 400 enterprise drone. Featuring four independently controlled payload release positions, a maximum single-hook payload capacity of 10kg (22 lbs), integrated laser-assisted targeting, and seamless DJI Pilot 2 integration, the JZ ET4 provides versatile aerial delivery capabilities for search and rescue, emergency response, public safety, industrial operations, and other demanding enterprise applications.

Engineered for direct integration with the DJI Matrice 400, the JZ ET4 connects through the aircraft's T-Port interface and utilizes DJI's Payload SDK (PSDK) communication system, eliminating the need for a separate remote control or wireless communication link. The system operates within the aircraft's video transmission range, allowing operators to remotely control payload releases through the existing DJI flight control system.

The ET4 features four independent payload mounting positions, each equipped with automatic load detection. Through DJI Pilot 2, operators can monitor the status of each mounting position in real time, select individual payloads for release in any sequence, or activate a one-touch release function for rapid deployment.

An integrated laser-assisted targeting system provides a visual reference for identifying intended drop locations, helping operators improve accuracy during aerial delivery operations.

Key Features

  • Four Independent Payload Release Positions: Supports up to four separately controlled airdrop hooks for multiple deliveries during a single flight.
  • 10kg Single-Hook Payload Capacity: Each hook supports a maximum rated payload of 10kg (22 lbs), subject to the DJI Matrice 400's actual aircraft payload limitations.
  • Designed for DJI Matrice 400: Specifically engineered for integration with the DJI Matrice 400 enterprise drone platform.
  • Direct DJI T-Port Connection: Connects directly to the aircraft's T-Port interface for convenient installation and operation.
  • DJI PSDK Integration: Uses the aircraft's Payload SDK communication system, eliminating the need for a separate remote controller or wireless link.
  • Aircraft-Matched Control Range: Remote operation is supported within the DJI Matrice 400's video transmission range.
  • DJI Pilot 2 Compatibility: Provides convenient control and real-time payload monitoring directly through the DJI Pilot 2 application.
  • Automatic Mounting Position Detection: Independently detects payload attachment status across all four mounting positions.
  • Real-Time Payload Status Monitoring: Displays the mounting status of each hook within DJI Pilot 2.
  • Independent Payload Release: Allows operators to release individual payloads in any desired sequence.
  • One-Touch Release Function: Supports rapid payload deployment through a convenient single-command operation.
  • Integrated Laser-Assisted Targeting: Built-in laser aiming system provides a visual reference to help identify intended payload drop locations.
  • Touchscreen and Physical Button Control: Supports both on-screen operation and compatible remote controller button inputs for efficient payload release.

Advanced Four-Position Airdrop System

Four Independent Payload Release Hooks

The JZ ET4 features four independently controlled payload mounting positions, allowing operators to carry and release multiple payloads during a single flight.

Unlike systems requiring payloads to be released in a predetermined order, the ET4 allows operators to select individual hooks and release payloads in any sequence. This flexibility makes it ideal for missions involving multiple delivery locations or different types of supplies.

High-Capacity 10kg Payload Support

Each ET4 hook supports a maximum rated payload capacity of 10kg (22 lbs), providing flexibility for transporting larger items and equipment.

Actual allowable payload weight depends on the DJI Matrice 400's aircraft payload capacity, installed accessories, flight configuration, and operating conditions. The 10kg rating represents the maximum capacity of an individual hook and does not increase the aircraft's overall lifting capability.

Automatic Payload Mounting Detection

The JZ ET4 incorporates intelligent mounting position detection across all four release hooks.

Operators can attach payloads to any available mounting position without following a specific loading order. The system automatically identifies occupied positions and displays their mounting status in real time through DJI Pilot 2.

This functionality simplifies payload preparation, reduces operator workload, and helps ensure that the correct mounting position is selected before release.

Independent and One-Touch Payload Release

The ET4 supports two convenient methods of payload deployment:

  • Independent Release: Select and activate individual payload hooks in any order for controlled, point-to-point delivery.
  • One-Touch Release: Execute a rapid release command for efficient deployment when multiple payloads need to be dropped together.

Both touchscreen controls and supported physical remote controller buttons provide convenient access to payload release functions during flight.

Integrated Laser-Assisted Targeting

The JZ ET4 features a built-in auxiliary laser designed to assist with identifying intended drop zones.

The laser provides a visual aiming reference, helping operators position the aircraft and evaluate the target area before initiating a payload release.

This feature is particularly useful for applications requiring careful payload placement, such as emergency supply delivery, search and rescue operations, and remote equipment deployment.

Direct DJI T-Port and PSDK Integration

The ET4 connects directly through the DJI Matrice 400's T-Port interface and communicates using DJI's Payload SDK (PSDK).

Unlike standalone drop systems that require a separate wireless controller, the ET4 operates through the drone's existing communication system.

This integrated design eliminates the need for an additional remote control link and allows the ET4's control range to correspond with the aircraft's video transmission capabilities.

Ideal Applications

The JZ ET4 Four-Drop Airdrop System is designed for professional drone operators who require flexible, remotely controlled aerial payload delivery.

  • Search and Rescue: Deliver emergency supplies, flotation devices, communication equipment, and other essential items to individuals in remote or inaccessible locations.
  • Fire and Emergency Response: Transport lightweight emergency equipment, supplies, and other approved payloads to personnel operating in difficult terrain.
  • Disaster Relief: Deliver multiple packages of essential supplies to locations affected by flooding, natural disasters, or damaged infrastructure.
  • Law Enforcement and Public Safety: Support emergency operations requiring controlled delivery of approved equipment or supplies.
  • Industrial Operations: Transport tools, components, and equipment to remote work locations or areas with limited ground access.
  • Remote Supply Delivery: Conduct multiple point-to-point deliveries during a single flight without requiring the aircraft to return for reloading after each drop.

Technical Specifications

Specification Details
Model JZ ET4
Product Type Four-Drop Aerial Payload Release System
Compatible Drone DJI Matrice 400
Payload Release Positions 4 Independent Hooks
Maximum Single-Hook Payload 10kg (22 lbs)
Aircraft Interface DJI T-Port
Communication Protocol DJI PSDK (Payload SDK)
Control Software DJI Pilot 2
Control Range Corresponds to Aircraft Video Transmission Range
Independent Payload Release Supported
Selectable Release Sequence Supported
One-Touch Release Supported
Automatic Mounting Detection Supported
Real-Time Payload Status Display Supported
Touchscreen Control Supported
Physical Button Control Supported
Laser-Assisted Targeting Built-In
Separate Remote Control Link Not Required

Compatibility Information

Compatible Drone:

  • DJI Matrice 400

The JZ ET4 is specifically developed for the DJI Matrice 400 enterprise drone and connects directly through the aircraft's T-Port interface.

DJI Pilot 2 Integration: Supports independent payload release, automatic mounting position detection, real-time hook status monitoring, and convenient control through the DJI Pilot 2 interface.

Important Payload Capacity Information:

Although the JZ ET4 features a maximum single-hook load rating of 10kg (22 lbs), the actual allowable payload weight is limited by the DJI Matrice 400's aircraft payload capacity.

Operators must account for the combined weight of the drop system, attached payloads, and any additional accessories when determining safe operating limits.

DJI Matrice 400 drone and payload items are not included unless otherwise specified.

Expand Your DJI Matrice 400's Aerial Delivery Capabilities

Equip your DJI Matrice 400 with the JZ ET4 Four-Drop Airdrop System for versatile, high-capacity aerial payload delivery.

Featuring four independently controlled release hooks, intelligent mounting position detection, integrated laser-assisted targeting, and seamless DJI Pilot 2 operation, the ET4 provides the flexibility and functionality required for demanding enterprise drone missions.

Whether delivering emergency supplies, transporting equipment to remote locations, or supporting search and rescue operations, the JZ ET4 offers a powerful way to expand the operational capabilities of your DJI Matrice 400.

Always verify aircraft payload limitations, accessory compatibility, and applicable regulations before conducting aerial drop operations. Laser-assisted targeting provides an aiming reference and does not guarantee an exact impact location; wind, altitude, aircraft movement, and payload characteristics can affect delivery accuracy.
