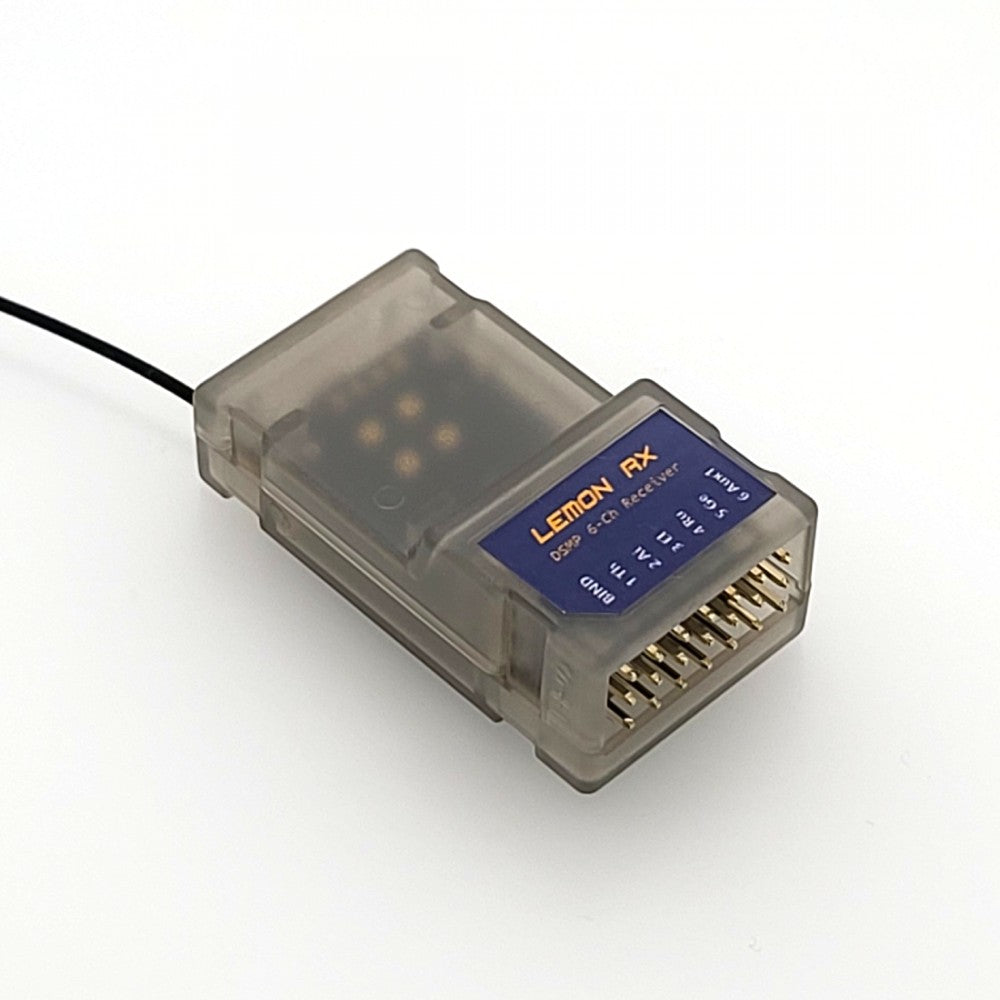

Lemon RX LM0080 6-Ch DSMP Receiver (DSMX/DSM2 compatible)
%20x%2023.1mm(W),%208.7g%0A%0A%0ARecommended%20voltage%20range:%0A%0A3.5V%20to%208.5V%20(2S%20LiPo%20capable)%0A%0A%0A%0ATechnology:%0A%0ADSMP%20with%20GEN2%20SDR%20stack%20(DSMX%20/%20DSM2%20compat...
){kind=link}
Description
Product Specification
| Dimension and Weight: |
42.0mm(L) x 23.1mm(W), 8.7g |
| Recommended voltage range: |
3.5V to 8.5V (2S LiPo capable) |
| Technology: |
DSMP with GEN2 SDR stack (DSMX / DSM2 compatibility) |
Highlight
DSMP 6-channel receiver is DSMX/DSM2 compatible that provides exceptional performance.
Quick Reference Guide
Failsafe
Bind receiver and current channel values will be saved. Failsafe will be activated when no signal is received for 2 seconds. All channels will be positioned to failsafe default. For this reason, it is recommended that the throttle should be at 0% while all other sticks are centred during binding.
1S LiPo Application
The minimum recommended safe supply voltage is 3.5V
NOTE:
- The battery must be capable of maintaining that voltage while delivering the required maximum load current to the receiver and servos. In some cases you MAY be able to operate at a lower voltage (for example a well discharged 1S LiPo cell) but you must test it in practice to be sure.
User manual
- See www.lemon-rx.com/manual
Note:
1) This is not a Spektrum DSMX or DSM2 product, nor is it a copy of a Spektrum DSM2 or DSMX product. The Spektrum, DSMX and DSM2 brand is a trademark of Horizon Hobby, Inc.
2) This is not an underground black market fake Spektrum product. Lemon Rx quality is guaranteed.
3) Lemon Rx products are tested to be compatible with Spektrum's DSMX and or DSM2 product (Spketrum, DSMX and DSM2 are the registered trademark of Horizon Hobby, Inc.).
Specifications
In the box
Product Specification
| Dimension and Weight: |
42.0mm(L) x 23.1mm(W), 8.7g |
| Recommended voltage range: |
3.5V to 8.5V (2S LiPo capable) |
| Technology: |
DSMP with GEN2 SDR stack (DSMX / DSM2 compatibility) |
Highlight
DSMP 6-channel receiver is DSMX/DSM2 compatible that provides exceptional performance.
Quick Reference Guide
Failsafe
Bind receiver and current channel values will be saved. Failsafe will be activated when no signal is received for 2 seconds. All channels will be positioned to failsafe default. For this reason, it is recommended that the throttle should be at 0% while all other sticks are centred during binding.
1S LiPo Application
The minimum recommended safe supply voltage is 3.5V
NOTE:
- The battery must be capable of maintaining that voltage while delivering the required maximum load current to the receiver and servos. In some cases you MAY be able to operate at a lower voltage (for example a well discharged 1S LiPo cell) but you must test it in practice to be sure.
User manual
- See www.lemon-rx.com/manual
Note:
1) This is not a Spektrum DSMX or DSM2 product, nor is it a copy of a Spektrum DSM2 or DSMX product. The Spektrum, DSMX and DSM2 brand is a trademark of Horizon Hobby, Inc.
2) This is not an underground black market fake Spektrum product. Lemon Rx quality is guaranteed.
3) Lemon Rx products are tested to be compatible with Spektrum's DSMX and or DSM2 product (Spketrum, DSMX and DSM2 are the registered trademark of Horizon Hobby, Inc.).
