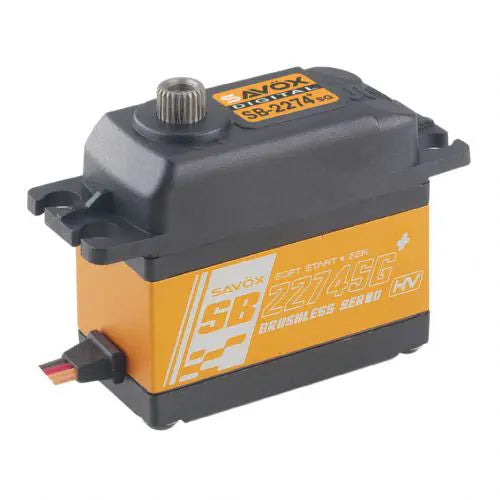

Savox SB-2274SGP High Voltage Brushless Digital Servo w/ Soft Start

by Savox
Sold out
Original price $109.99 - Original price $109.99
Original price
$109.99
$109.99 - $109.99
Current price $109.99
Availability:
Out of stock
High Voltage Brushless Digital Servo with Soft Start, 0.080sec / 347.2oz @ 7.4V

The Savox SB-2274SG High Voltage Brushless Digital Servo combines leading edge technology with super high 12 bit (4096) resolution.

"Plus" series servos feature Soft Start and Sanwa SSR compatibility.

Features:

  • Unique steel gear train.
  • Capable of HV operation.
  • Brushless motor for smooth operation and efficiency.
  • Ideal for 1/10, 1/8 buggies, and large scale aircraft.

Specifications:

  • Torque @ 6V - 20.0kg/277.7oz-in
  • Torque @ 7.4V - 25.0kg/347.2oz-in
  • Torque @ 8.4V - 30.0kg/416.6oz-in
  • Speed @ 6V - 0.105 sec/60 deg
  • Speed @ 7.4V - 0.08 sec/60 deg
  • Speed @ 8.4V - 0.07 sec/60 deg

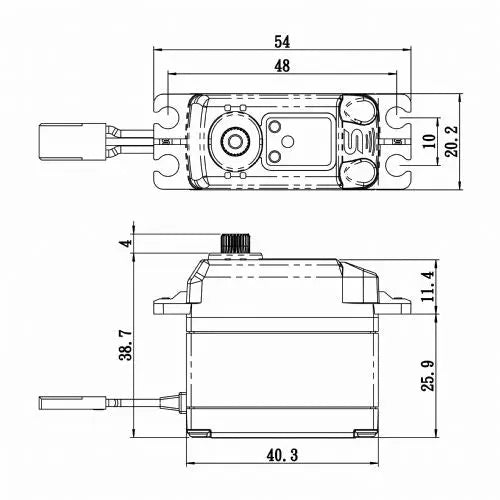

  • Dimensions L x W x H (mm): 40.3 x 20.2 x 38.7
  • Weight: 69g
Technical Specs:
  • Operating Temperature: 14° - 122°F (-10° - 50°C)
  • Running Current (no load): 180mA @6.0V, 220mA @7.4V
  • Stall Current (at locked): 6000mA @6.0V, 7400mA @7.4V
  • Idle Current: 5mA @6.0V, 5mA @7.4V
  • Wire Length: 300 +/- 5mm
  • Output Gear Spline: 25 Tooth
  • Bearings: 2BB
  • Operating Travel: 100° (1000 → 2000 µ second)
  • Neutral Position: 1500 µ second
  • Pulse Width Range: 800 → 2200 µ second
  • Maximum Travel: Appx 130° (900 → 2100 µ second)
  • Refresh Rate: 333 Hz
  • Motor Type: Brushless
