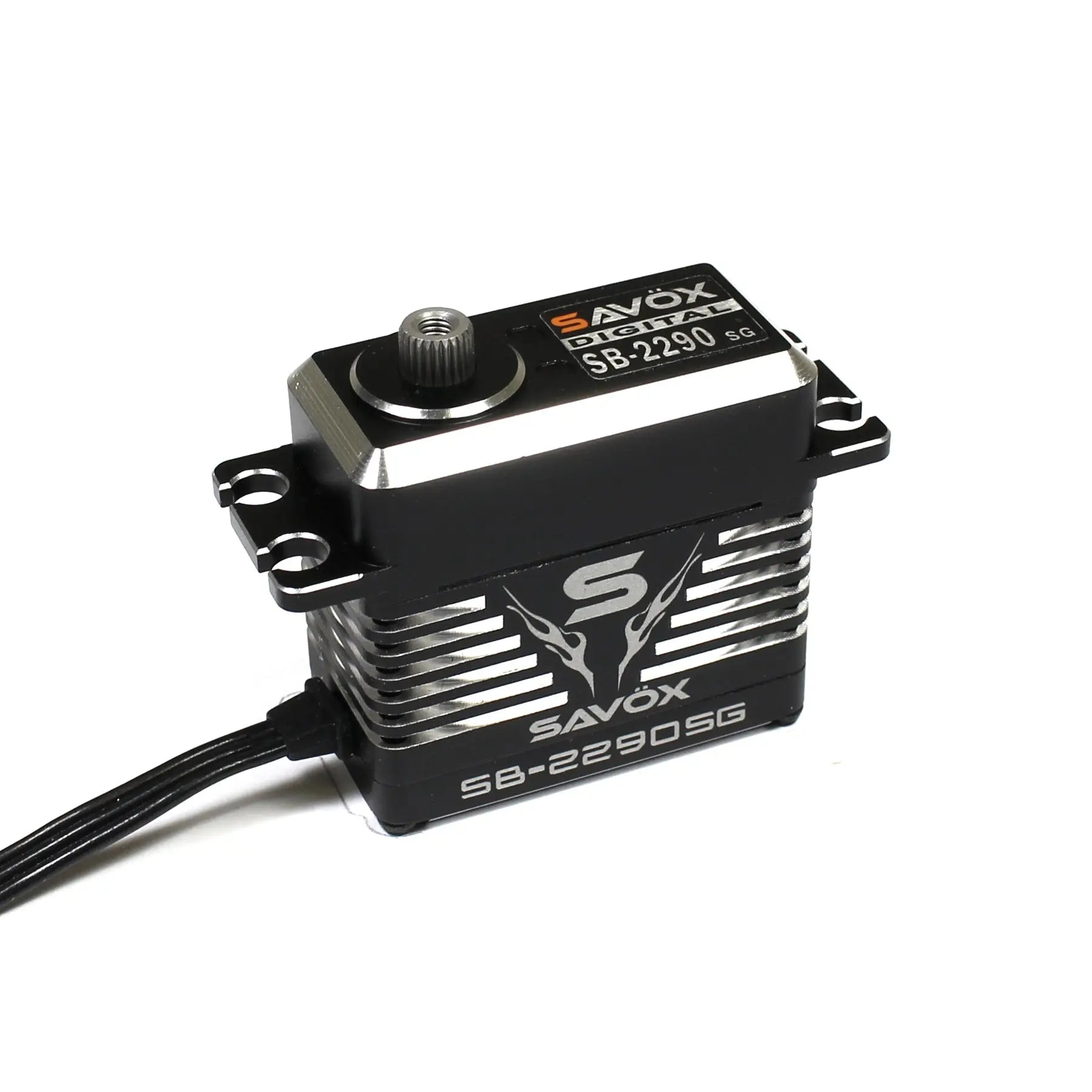

Savox SB-2290SG Black Edition Monster Torque Digital Brushless Steel Gear Servo
Description
Savox SB-2290SG Black Edition Monster Torque Digital Brushless Steel Gear Servo
The powerful "Monster" performance series from Savox utilize an all aluminum case, unique brushless motor and controller technology to boost power up to 35% over previous generation servos.
Features:
- Full Aluminum Case
- 3 Precision Ball Bearings.
- Unique steel gears
Specifications:
- Torque @ 6v - 45.0kg-cm/624.9oz-in
- Torque @ 7.4v - 55.0kg-cm/763.8oz-in
- Torque @ 8.4v - 70.0kg-cm/972.1oz-in
- Speed @ 6v - 0.16 sec/60 deg
- Speed @ 7.4v - 0.13 sec/60 deg
- Speed @ 8.4v - 0.11 sec/60 deg

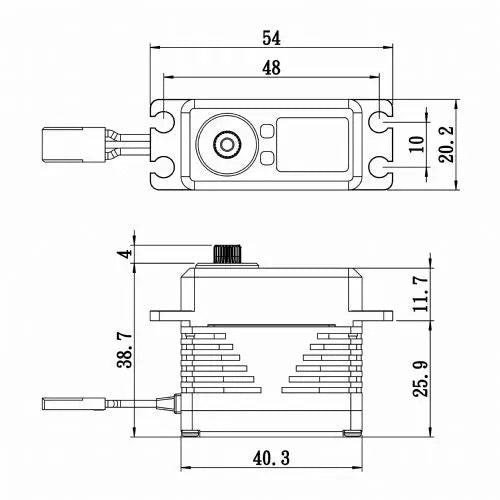

- Dimensions L x W x H (mm): 40.3 x 20.2 x 38.7
- Weight: 81g
Technical Specs:
- Operating Temperature: 14° - 122°F (-10° - 50°C)
- Running Current (no load): 180mA @6.0V, 220mA @7.4V, 220mA @8.4V
- Stall Current (at locked): 7500mA @6.0V, 9200mA @7.4V, 10500mA @8.4V
- Idle Current: 5mA @6.0V, 5mA @7.4V, 5mA @8.4V
- Wire Length: 300 +/- 5mm
- Output Gear Spline: 25 Tooth
- Bearings: 3BB
- Operating Travel: 100° (1000 → 2000 µ second)
- Neutral Position: 1500 µ second
- Pulse Width Range: 800 → 2200 µ second
- Maximum Travel: Appx 130° (900 → 2100 µ second)
- Refresh Rate: 333 Hz
- Motor Type: Brushless
