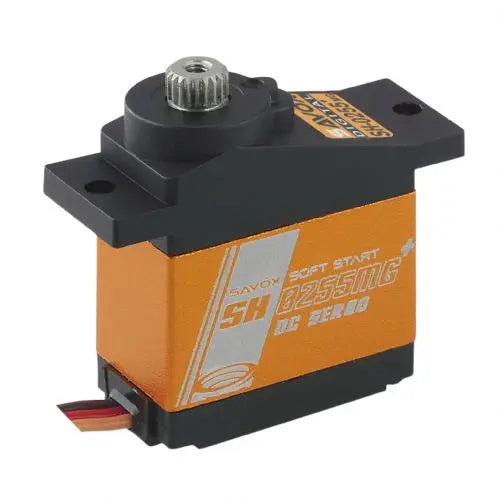

Savox SH-0255MGP Micro Digital MG Servo w/ Soft Start

by Savox
Original price $41.99 - Original price $41.99
Original price
$41.99
$41.99 - $41.99
Current price $41.99
Availability:
Only 2 left!
Micro Digital MG Servo w/ Soft Start, .13/54 @6V

The Savox SH-0255MGP micro, metal-gear, digital servo has plenty of torque to match a much larger standard size servo and outperform other competitive micro-size servos.

"Plus" series servos feature Soft Start and Sanwa SSR compatibility.

Features:

  • Metal gear train ensures durability and longevity.
  • Aluminum middle case allows for cooler operating temperatures.
  • Ideal for small planes, and 450 size helicopters.
  • Specifications:

  • Torque @ 4.8v - 3.1kg/43.1oz-in
  • Torque @ 6v - 3.9kg/54.2oz-in
  • Speed @ 4.8v - 0.16 sec/60 deg
  • Speed @ 6v - 0.13 sec/60 deg

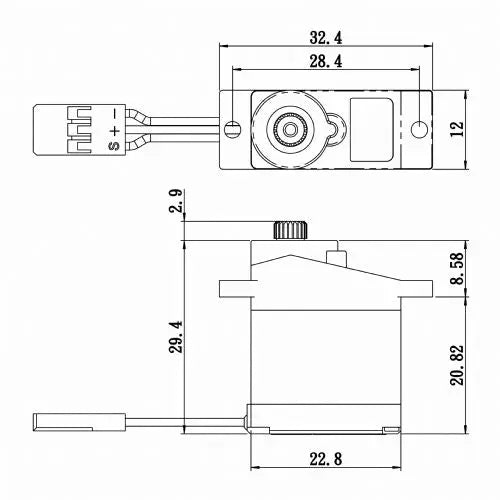

  • Dimensions L x W x H (mm):22.8 x 12.0 x 29.4
  • Weight: 15.8g

  • Technical Specs:

    • Operating Temperature: 14° - 122°F (-10° - 50°C)
    • Running Current (no load): 180mA @4.8V, 240mA @6.0V
    • Stall Current (at locked): 1200mA @4.8V, 1400mA @6.0V
    • Idle Current: 5mA @4.8V, 5mA @6.0V
    • Wire Length: 250 ± 5mm
    • Output Gear Spline: 21 Tooth
    • Bearings: 1BB
    • Operating Travel: 90° (1000 → 2000 µ second)
    • Neutral Position: 1500 µ second
    • Pulse Width Range: 750 → 2250 µ second
    • Maximum Travel: Appx 145° (750 → 2250 µ second)
    • Refresh Rate: 240 Hz
    • Motor Type: Brushed
